89400423

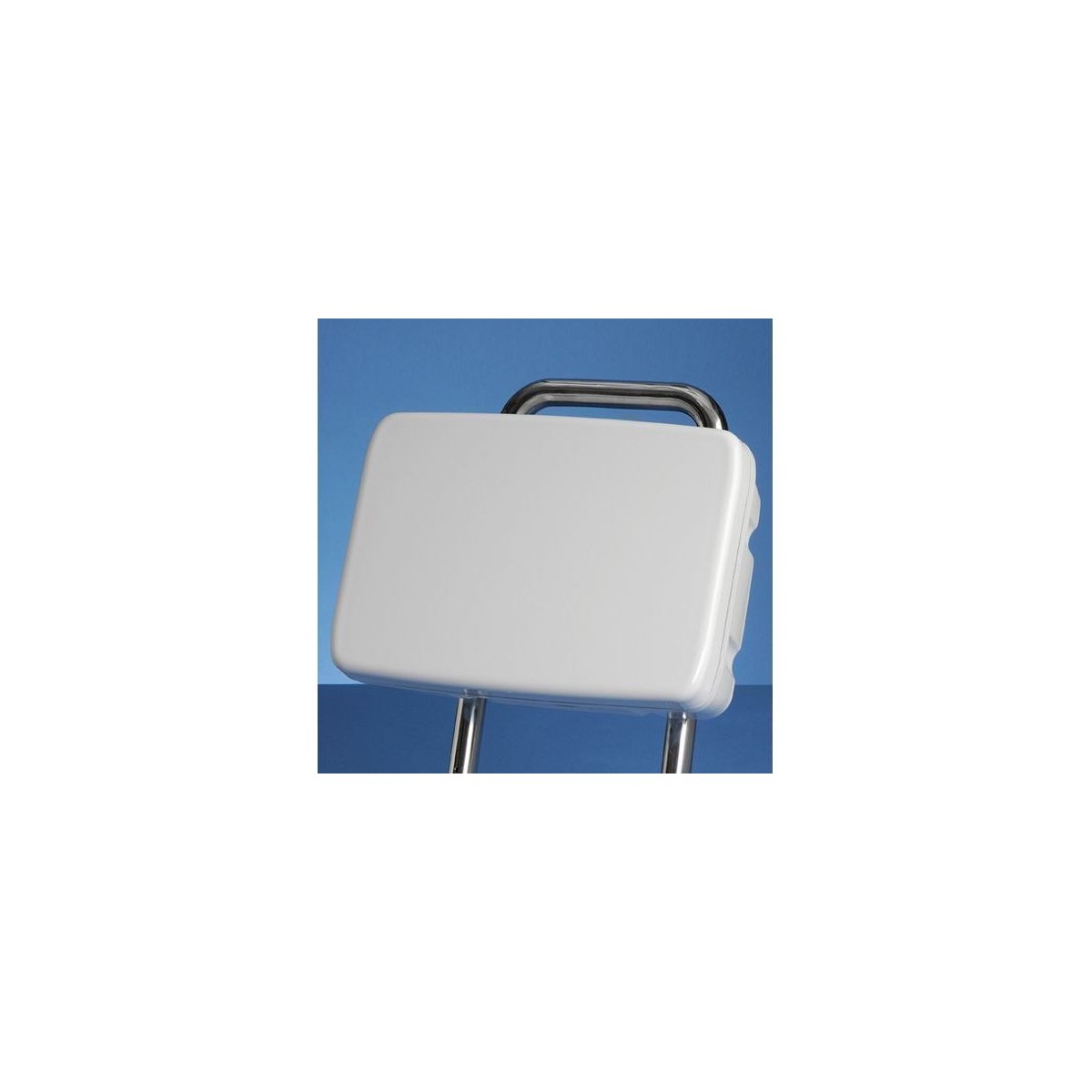

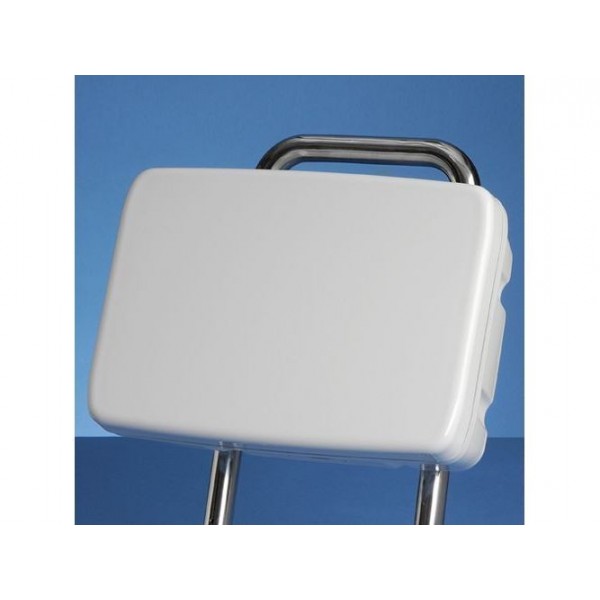

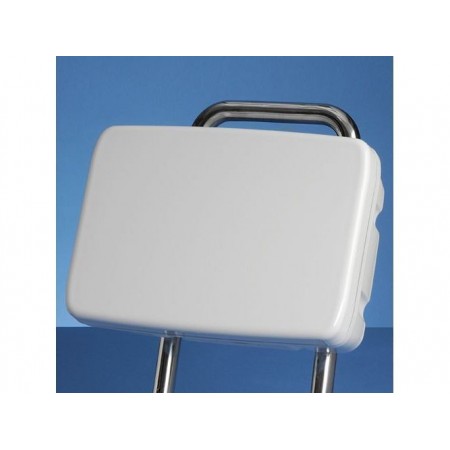

Helm console - 8''
The Lewmar helm console with its new features is the ideal choice for all cockpit configurations.
Universal fasteners fit hoops from 25 mm (1 inch) to 33.7 mm (1.33 inch).
Thanks to a unique clamping system, the console can be installed on hoops spaced 178 mm (7 inches) apart and more
Solid & watertight installation - A flange supports the stainless steel tube, providing a secure and rigid hold, as well as a watertight seal at the cable entry
No-drill mounting kit - Special U-bolts fit around the hoop and through the flange to the rear of the console, eliminating the need to drill the hoop
Easy installation & maintenance. Fasteners are inserted from the rear and cut threads in injection-molded
ABS plastic inserts in the front of the console
Console gasket with extra protection made from high tear-resistance silicone
Supplied uncut

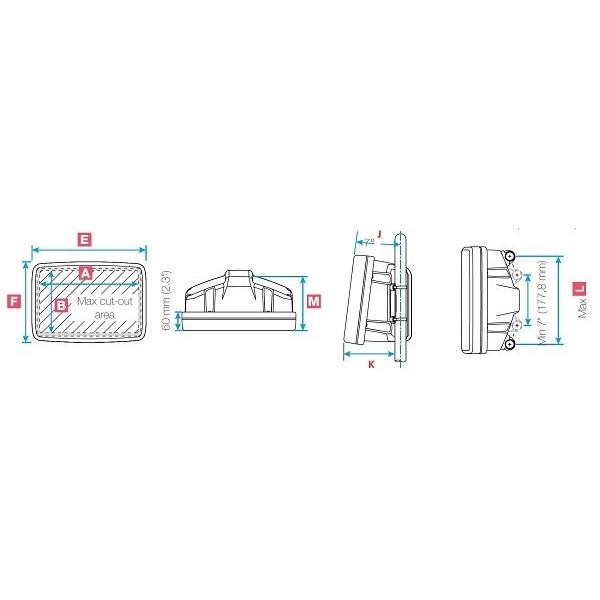

Dimensions:
A: 312 mm J: 152 mm
B: 200 mm K: 165 mm
E : 371 mm L : 304.8 mm
F : 264 mm M : 175 mm
