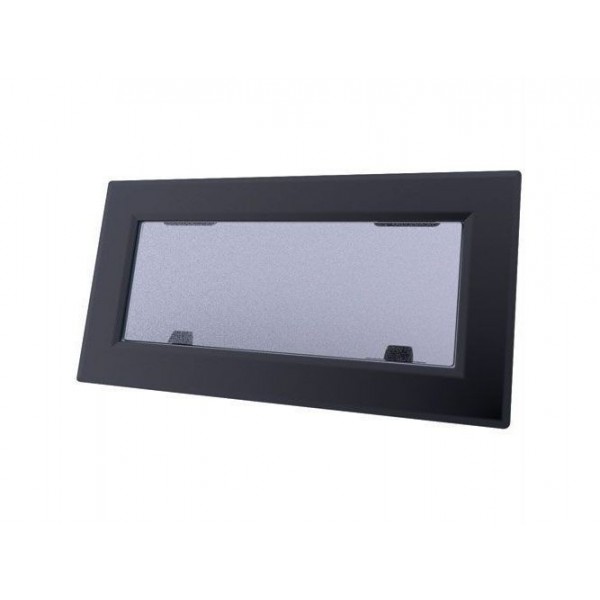

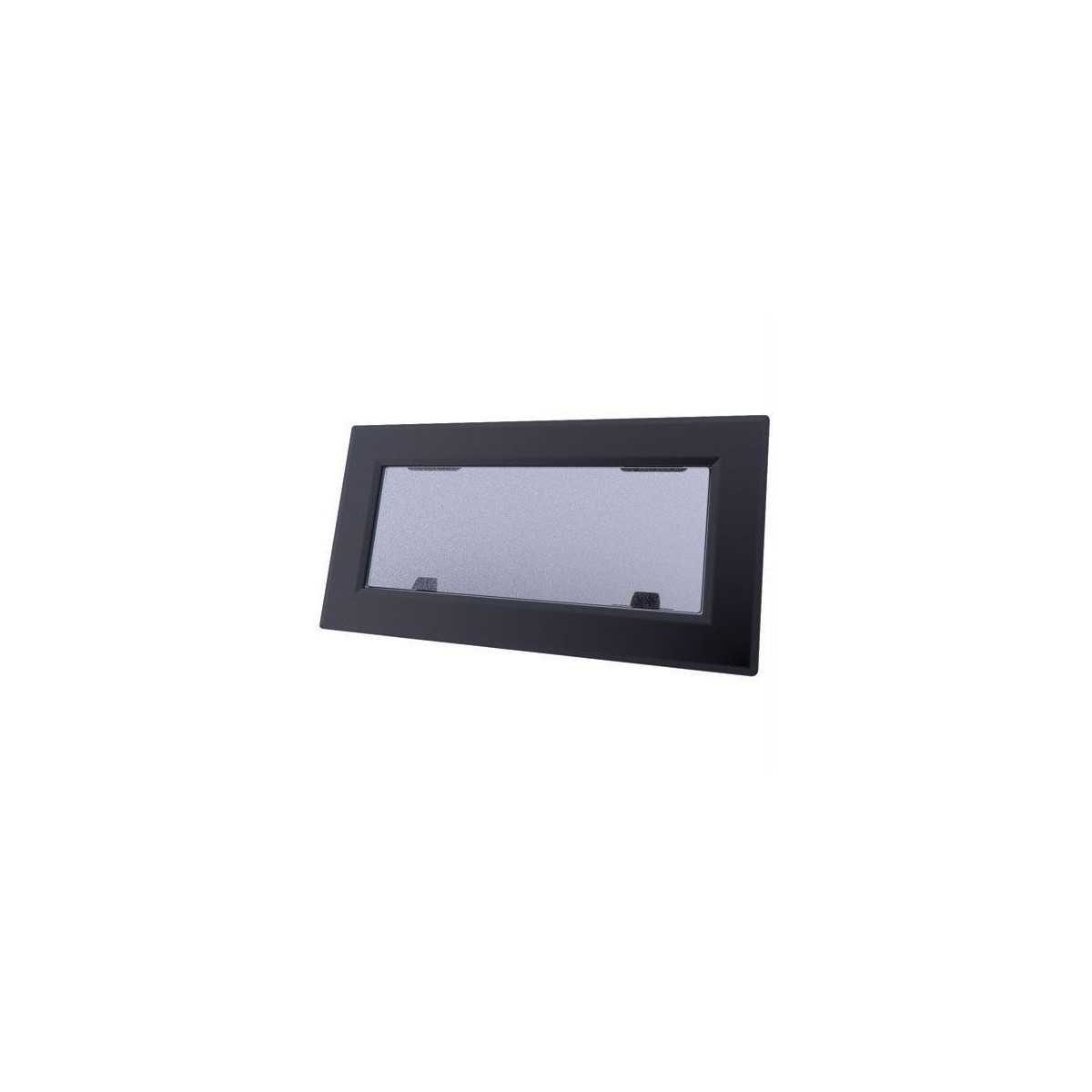

Flush sightglass T5 - grey

To complement the style of the Flush panel range, Flush mitered portholes offer a continuous line from hull to porthole. When installed in plexiglass, the Flush mitered porthole offers a ventilation solution while maintaining the illusion of a larger opening. The number of textures, angles and levels is reduced to minimize the porthole's visual impact on the boat.

The plexiglass is virtually flush with the surface of the frame

A thicker plexiglass is used to achieve the flush effect

12 mm Plexiglas window

Handle: clip (standard) / twist (optional)

Color: Gray

Frame color: Black overlay paint

Insect screens are not supplied with these portholes as standard.

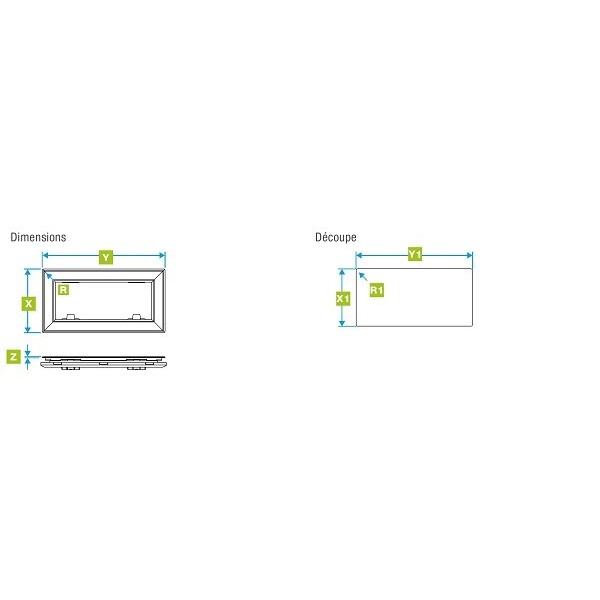

Dimensions : Cut-out :

X : 263 mm X1 : 244 mm

Y : 448 mm Y1 : 429 mm

R : 5 mm R1 : 5 mm

Z : 4 mm
