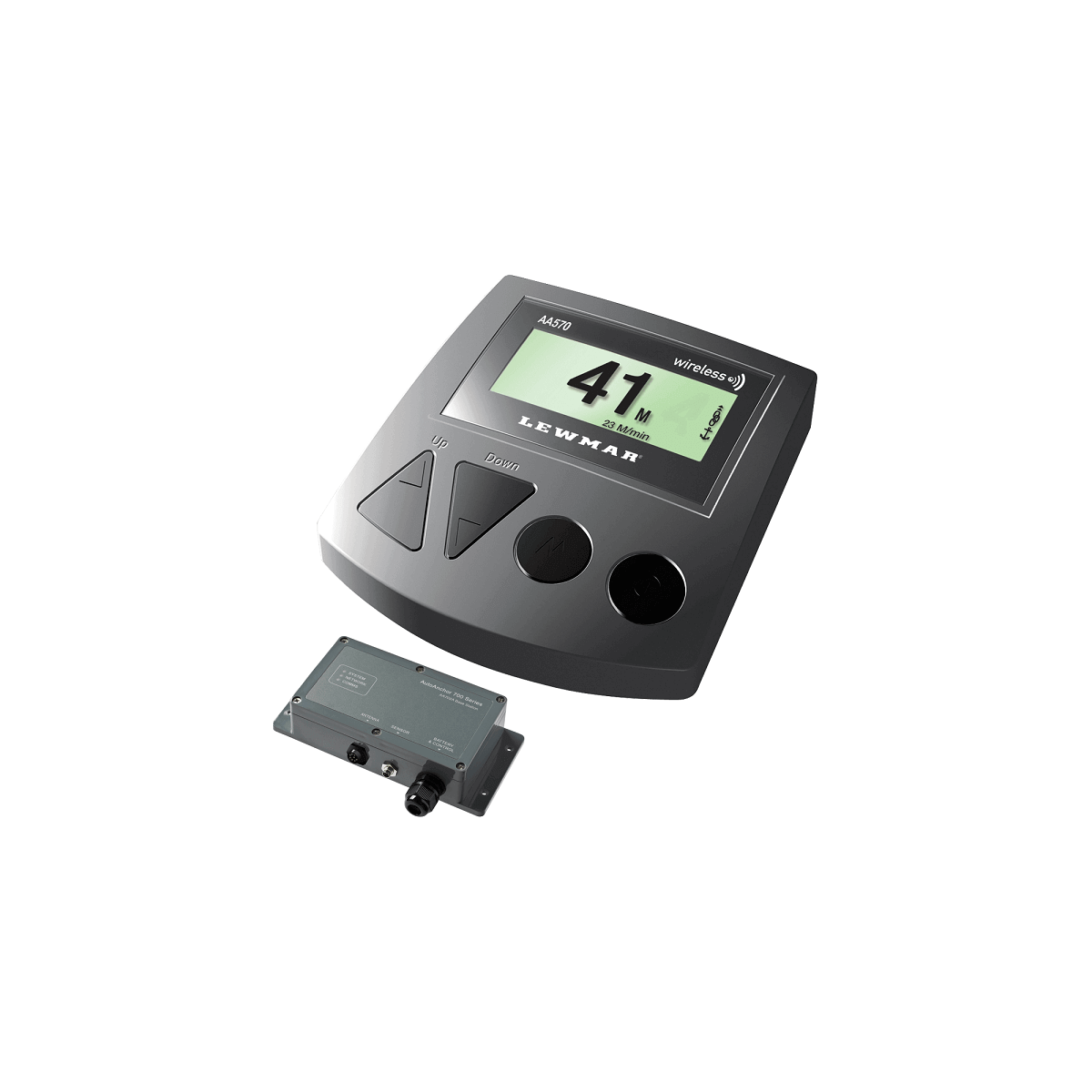

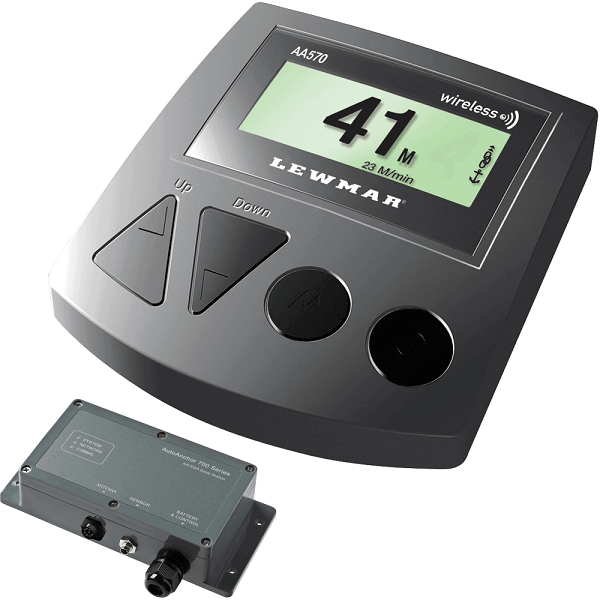

AA570 chain counter
Ref.
66830041
The AA570 wireless chain counter allows you to measure the length of your anchor as it unwinds or retracts in real time. It displays the length of anchor deployed by the windlass on the unit's screen.
It works with both rope-and-chain and chain-only anchors.
The counter is compatible with DC, AC or hydraulic windlasses.
Read more Features
€1,961.58
Public price
€2,064.28
66830041
Data sheet
- Product type
- Chain counter
AA570 chain counter
Allows you to control the windlass from the cockpit, and shows at a glance the length of mooring line deployed.
Automatic "One touch" function allows you to deploy and retrieve a predefined length of mooring line for easier, safer mooring.
An alarm and pre-set stop point help protect the boat during anchor retrieval.
Compatible with DC, AC and hydraulic windlasses
Install up to two units or combine with AA560, AA710 or AA300 for multi-station installation
Technical specifications:
Power: 12 or 24V
Power: 12 or 24V
Consumption: 70 mA
Temperature: -5° to +60°C
Voltage: 30V DC
Protection: EN609945
Kit includes :
Base station (AA702A) with male sensor plug
Grey sensor with 2m sensor cable and connector (used for chain-only or chain/string installations)
1 magnet 10 mm x 8 mm
Motor load sensor termination (used for chain/string installations)
Installation and operating instructions
Requires connection cable
