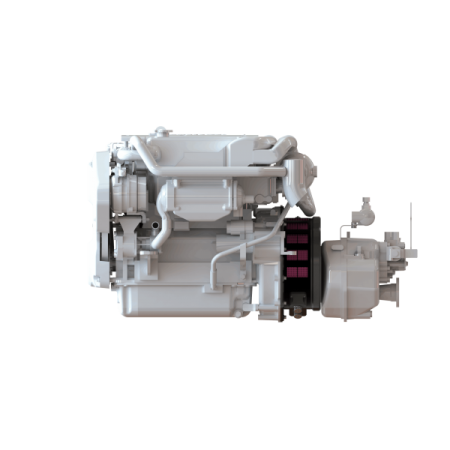

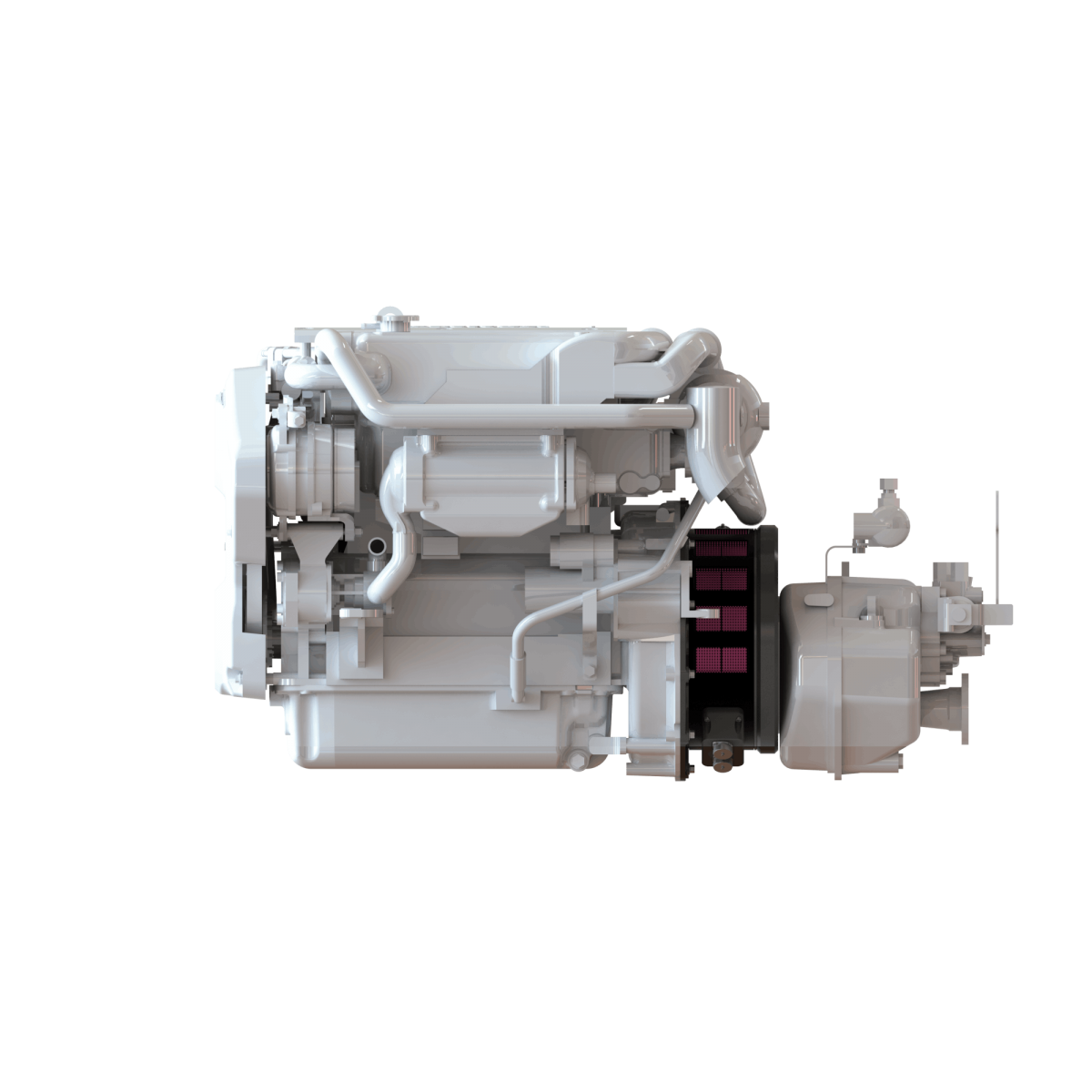

Integrel E generator-Drive 15kW

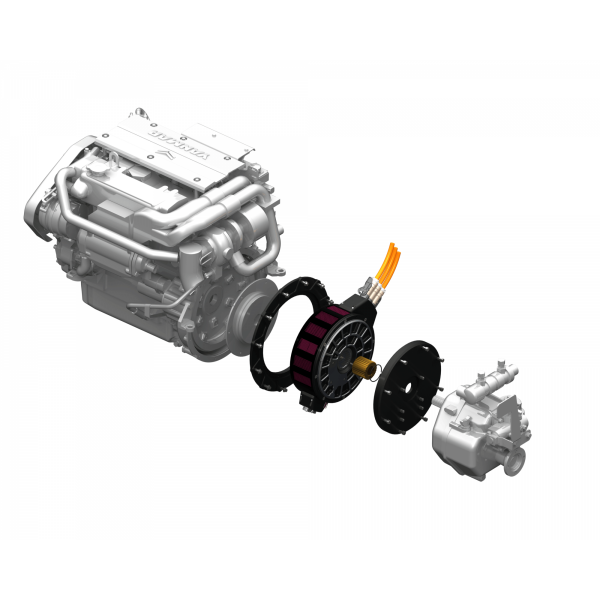

Integrel E-Drive 15kW generator

The E-Drive 15SE provides 20 hp of electric propulsion and 15 kW of energy for single-engine and monohull boats.

The system is ideal for boats with sail-drive or shaft drive motors.

• 48V
• Motor type: 45 - 115 hp
• Continuous / Peak torque (NM): 120 / 200
• Axial length : 150 mm
• Diameter: 300 mm
• Air-cooled

The Integrel E-Drive operates in different modes to suit different conditions: generator mode, propulsion mode or hybrid mode.

Generator mode

1. Generates power when the engine is in neutral.

2. Generates power when the engine is driving the boat.

Propulsion mode

1. Drive the boat with the motor (E-Drive is deactivated)

2. Drive the boat with the E-Drive (engine off)

Hybrid mode

Integrel automatically manages power generation and propulsion depending on acceleration demand and whether the engine is switched on or off, according to the following table.

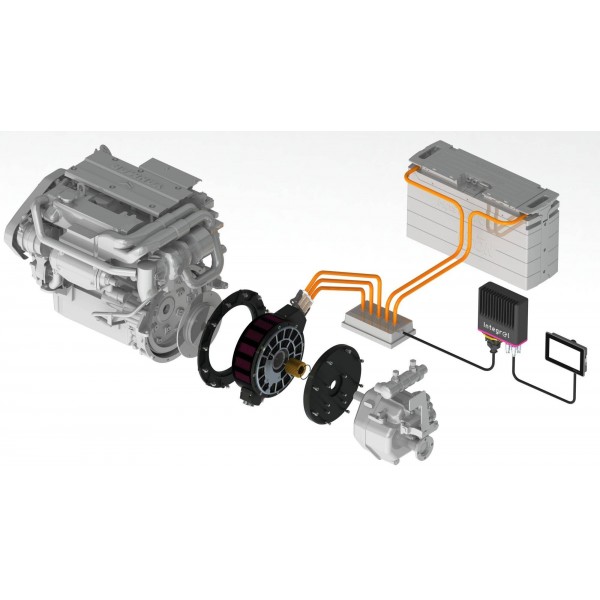

Integrel E-Drive is the new generation of marine power generation and hybrid electric propulsion systems.

This compact power plant takes the hassle out of power supply and enables you to switch seamlessly from a fuel-driven boat engine to electric propulsion, while reducing emissions and maintaining optimum performance.
