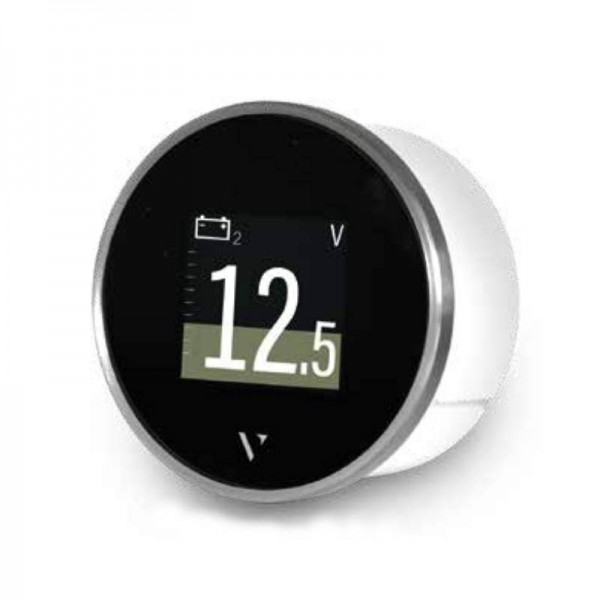

VMH FLEX CANBus J1939 multifunction meter

VMH FLEX CANBus J1939 multifunction meter

Technical data :

• Rated voltage: 12 / 24 V
• Operating voltage: 9 - 32 V
• Protection class IP x7
• Dimensions: 60 mm (external) / 52 mm (mounting hole)
• Display: 1.44" TFT color display sunlight-readable
• Resolution: 125 x 125 pixels
• Analog inputs: 1x resistive / 1x frequency

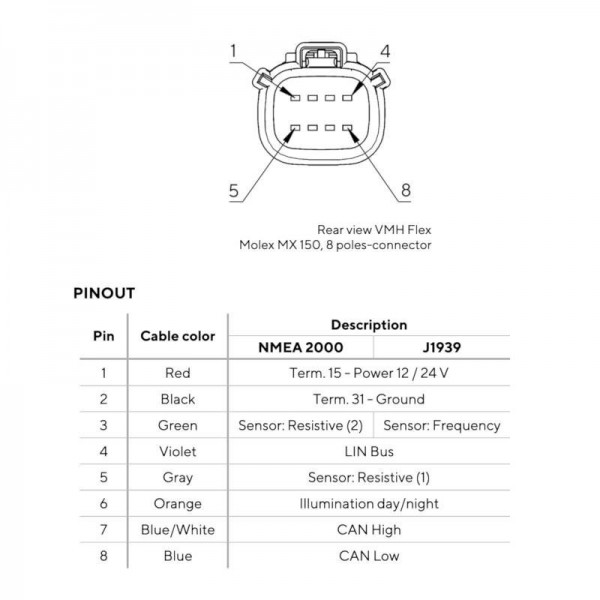

• Connector: Tyco / Hirschmann MQS connector 8 pin / Micro-C M12 5Pin

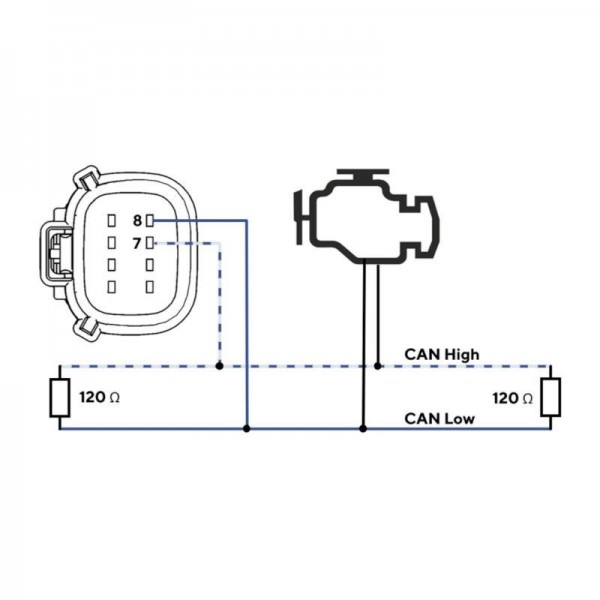

• Digital ports: CANBus J1939, LIN bus
• Wireless interface: NFC
• Installation diameter 52 mm - 21/16
• Up to 5 scrolling displays in single or double layout
• CANBus J connectivity-1939
• 2 analog inputs

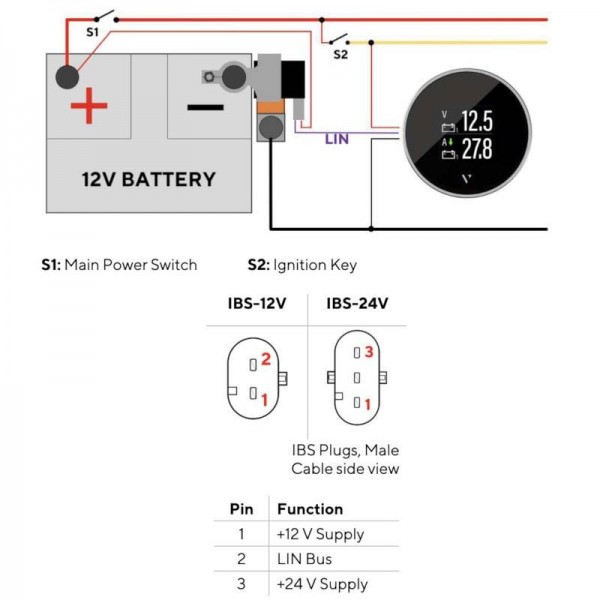

• LIN port for intelligent battery sensor.

This product is part of the VIEWLINE series offered by Veratron.
