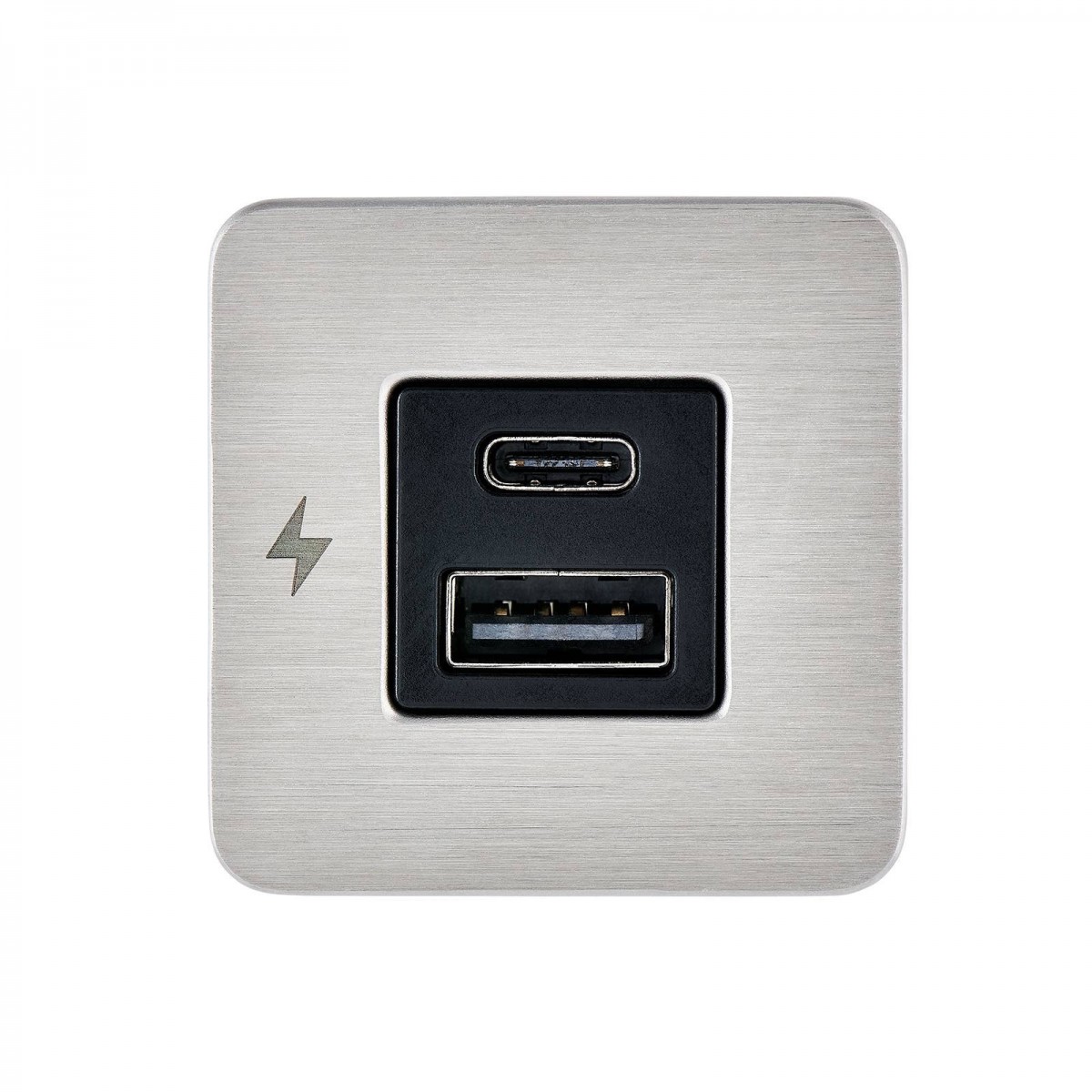

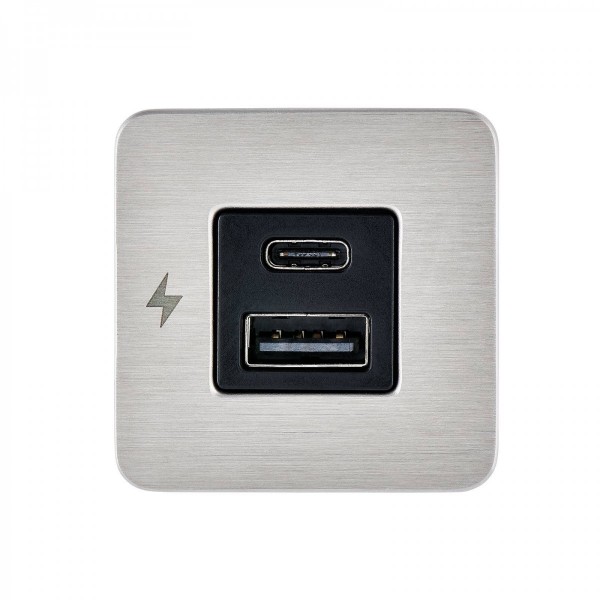

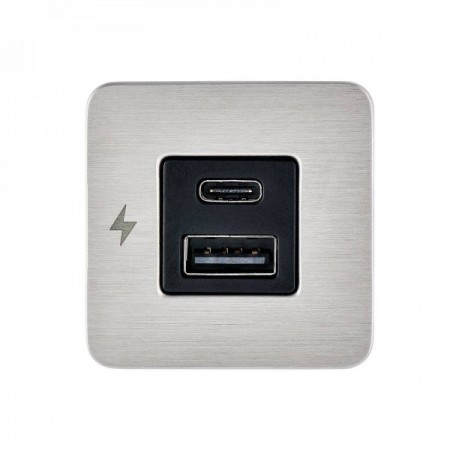

Indoor charger USB-A / USB-C - Stainless steel

Indoor USB charger-A / USB-C - Stainless steel

The TILE series from Scanstrut offers elegant, high-performance charging solutions designed specifically for marine interiors. These chargers fit perfectly into luxury marine environments.

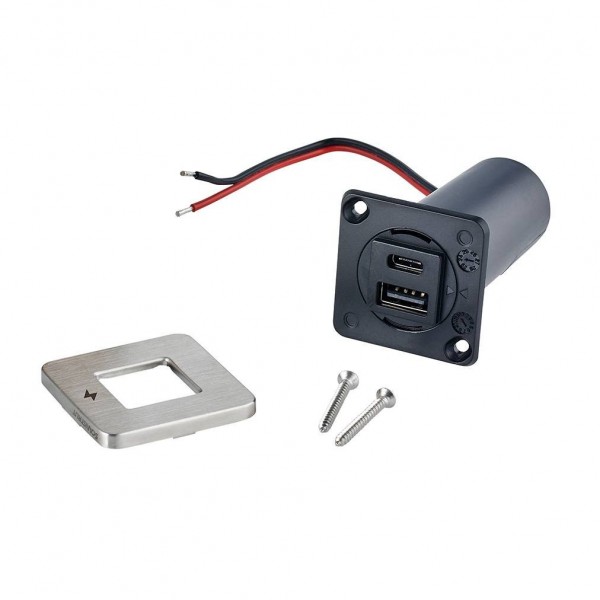

With a compact footprint of 40 mm (1.57" ) and a 29 mm (1.14") hole saw for easy installation, the TILE series combines functionality and style, making it the ideal choice for modernizing your boat's interior.

Enhance your boat's space with this practical and sophisticated solution for recharging your everyday devices.

• 12V & 24V
• USB-A and USB-C
• Ultra-low profile
• Fits forward
• Small footprint
• Available in 316 stainless steel or matte black
• Conformal-coated, moisture-protected electronics

Tile USB is FAST! It charges at 36 W on a 12 V system or up to 60 W on a 24 V system. So it's perfect for charging modern laptops. So it's perfect for charging modern laptops and large tablets, phones and any other USB-powered device-C on board.

USB output - C

• 60W max on a 24V system
• 36W max on a 12V system

Universal

• Fits all USB connectors-C.
• Fast charging (60W max) for up to 2 devices at a time.

Important information

To maximize charging performance, use the cable supplied with your tablet, phone, etc. (C to C, or C-lightning) Phones charge at the same speed on a 12 or 24V system, but a 24V system must be used to obtain the full 60W output suitable for laptops.

WARNING

TILE USB products are designed for indoor use only. Do not install them where exposure to water is possible, as this may lead to product failure.

Electrical information

• Input voltage: 10-32V DC (12/24V system)
• Input current: Max 6A (10A fuse recommended)
• Output (Type C) 12V system: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
• Output (Type C) 24V system: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
• Output (Type A) 12V system: 5V⎓3A, 9V⎓3A, 12V⎓3A MAX
• Output (Type A) 24V system: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A MAX
• Standby power consumption: 0.01W
• Certification CE, FCC, UKCA, C-Tick, ROHS, WEE
