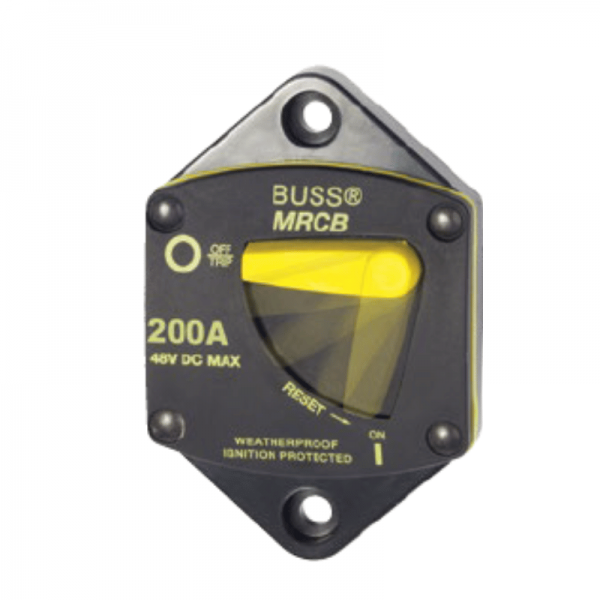

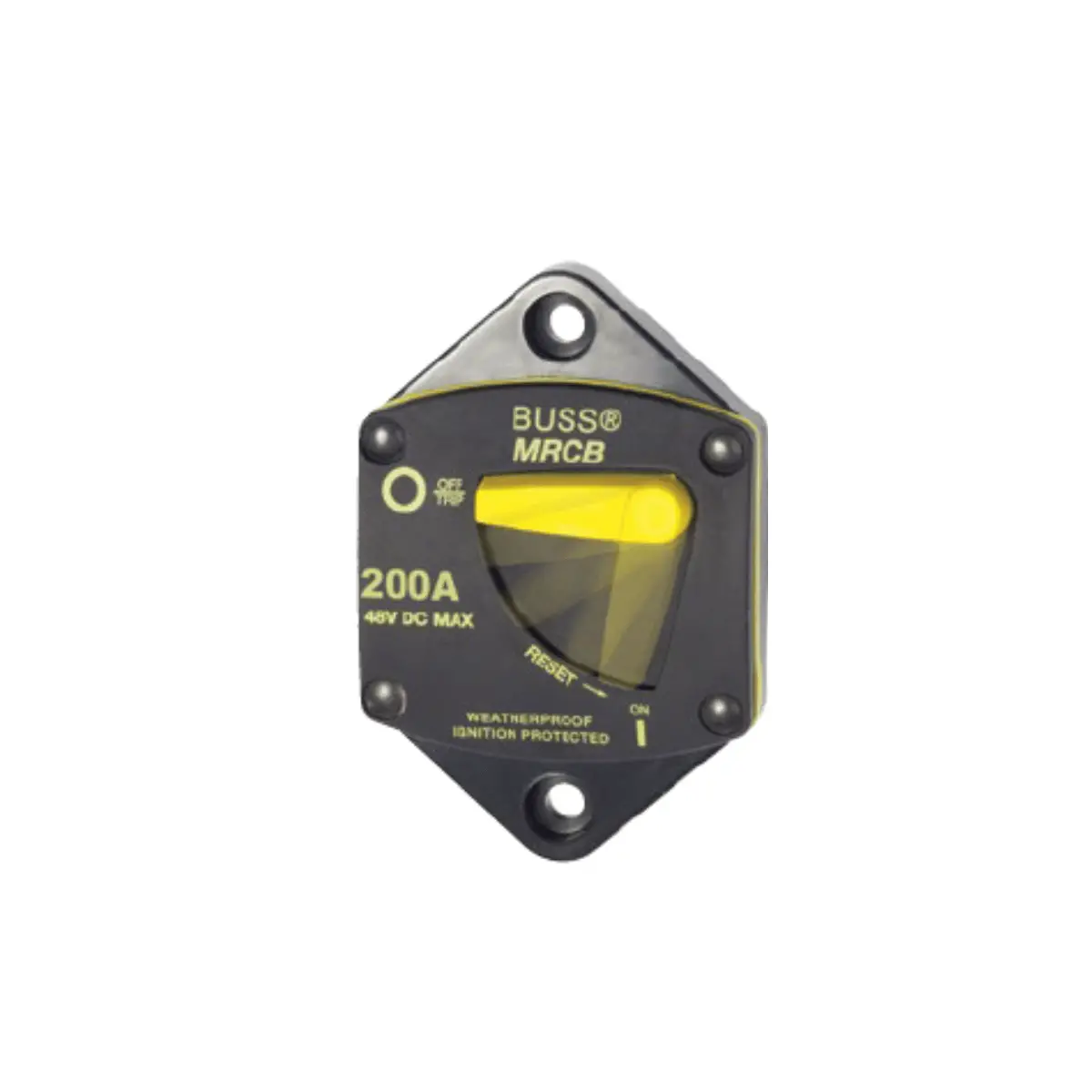

Thermal circuit breaker with manual reset, single-pole and switchable 25-200A - Flush mounting

Thermal circuit breaker with manual reset, single-pole and switchable 25-200A - Flush mounting

Technical data:

• Power rating: 25-200A, 48V DC
• Breaking capacity: main circuit-breaker protection breaking capacity (5000A at 14V DC, 3000A at 28V DC and 1500A at 48V DC)
• Operating temperature range: -40 °F (-40 °C) to 185 °F (85 °C)
• Storage temperature range: -40 °F (-40 °C) to 260 °F (125 °C)
• Materials: Body in black thermosetting plastic UL 94V0 approved
• Cover and lever in UL 94V0-approved thermoplastic
• Marking: Standard marking indicates current and voltage ratings
• Connection: Threaded studs 5/16-18
• Tightening torque: 75 in-lbs (8.5 Nm) max
• Mounting torque: panel or surface mounting options; 50 in-lbs (5.6 Nm) max.
• Protection rating: IP66
• Approvals: ABYC E-11; CE; SAE J1171 (ignition protection)
