COMPLETE SUBBASE P/SE170-210

Ref. PR152

The complete baseplate is designed for SE170 and SE210 electric bow thrusters with a 250 mm diameter tunnel.

It is essential for transmitting power between the thruster motor and the propeller.

Read more Features
€1,766.90 Tax included
Public price
€1,984.97
-10%
🐓 French days
Public price
€1,984.97
€1,691.90
with the code FRENCHLATE
-14%
Offre valable encore
or pay in
20x 60x
Price tax excl. / DOM TOM €1,472.42
Quantity
OUT OF STOCK
By buying this product you can collect up to 1766 loyalty points. Your cart will total 1766 points that can be converted into a voucher of €17.66.
PR152

Data sheet

Product type
Base
Description

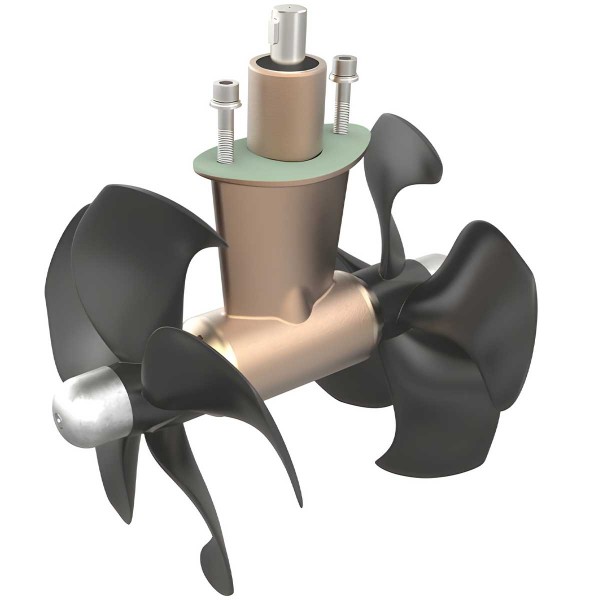

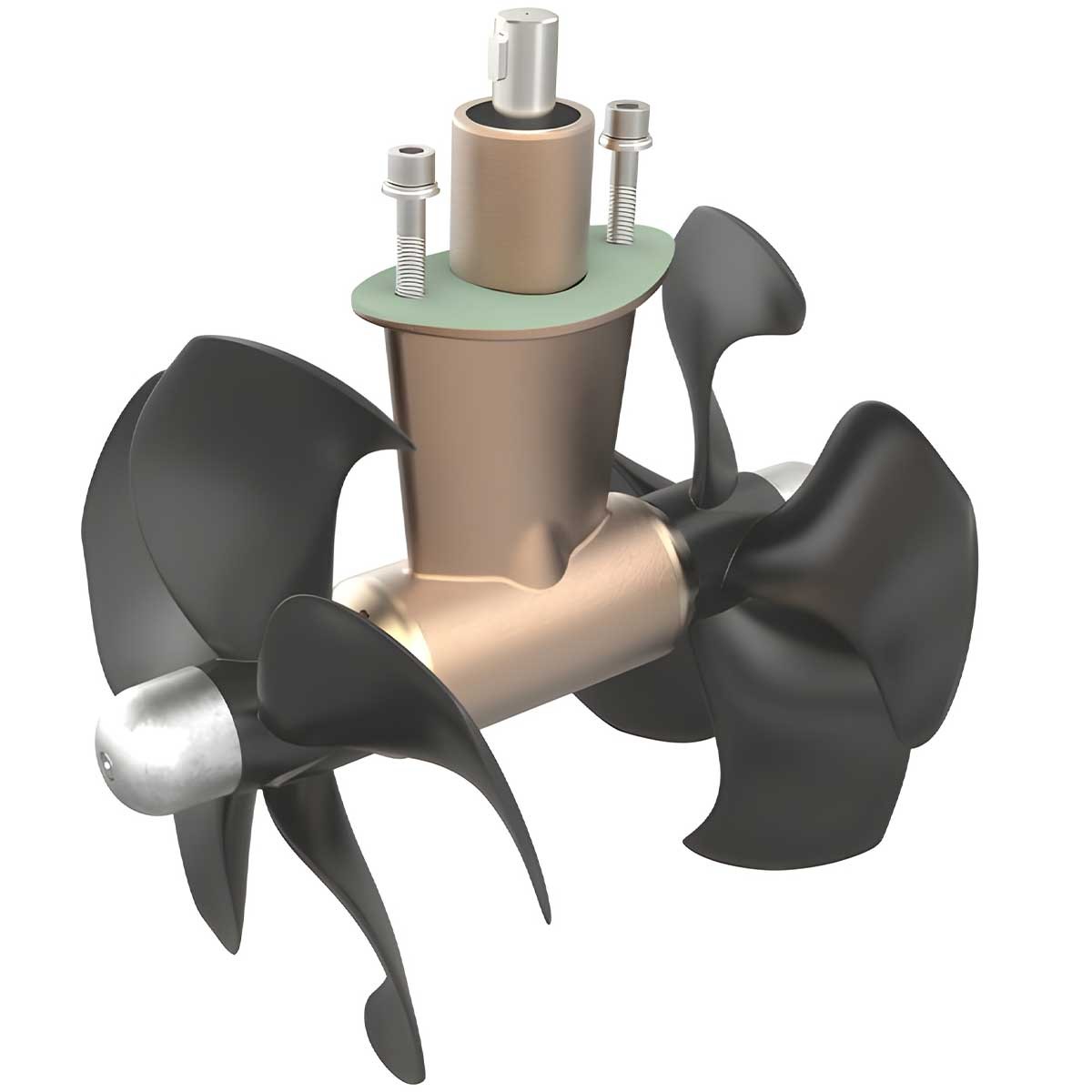

SLEIPNER - Complete base for SE170/SE210 bow thruster with 250 mm Ø tunnel

The complete baseplate is a replacement part for SE170 and SE210 electric bow thrusters with a 250 mm diameter tunnel.

It is made of marine bronze with very high corrosion resistance. It is pre-filled for lifetime lubrication and sealed with a long-life mechanical seal with ceramic and carbon surfaces for ultimate safety against water intrusion.

Dual counter-rotating-propellers provide maximum thrust for larger Sleipner thrusters.
embase complète pour propulseur SH320-SE250 SE300

BASEPLATE CONTENTS

  1. Gearbox
  2. Drive pin
  3. Bolt
  4. Anode
  5. Washer
  6. Nut
  7. Washer
  8. Washer
  9. Bolt
  10. Right-hand propeller
  11. Left propeller
  12. Tunnel seal

MAIN POINTS :

  • Official spare part
  • Delivered pre-filled and sealed
  • Energy-saving propellers
  • Sleipner part number: 13 0603
  • Designed for SE170/SE210 electric bow thrusters

BOX CONTENTS :

  • 1 - Baseplate
  • 1 - Aluminum anode kit
  • 1 - Tunnel gasket
  • 2 - 5-blade propeller
  • 1 - Screw kit
  • 1 - PDF documentation
