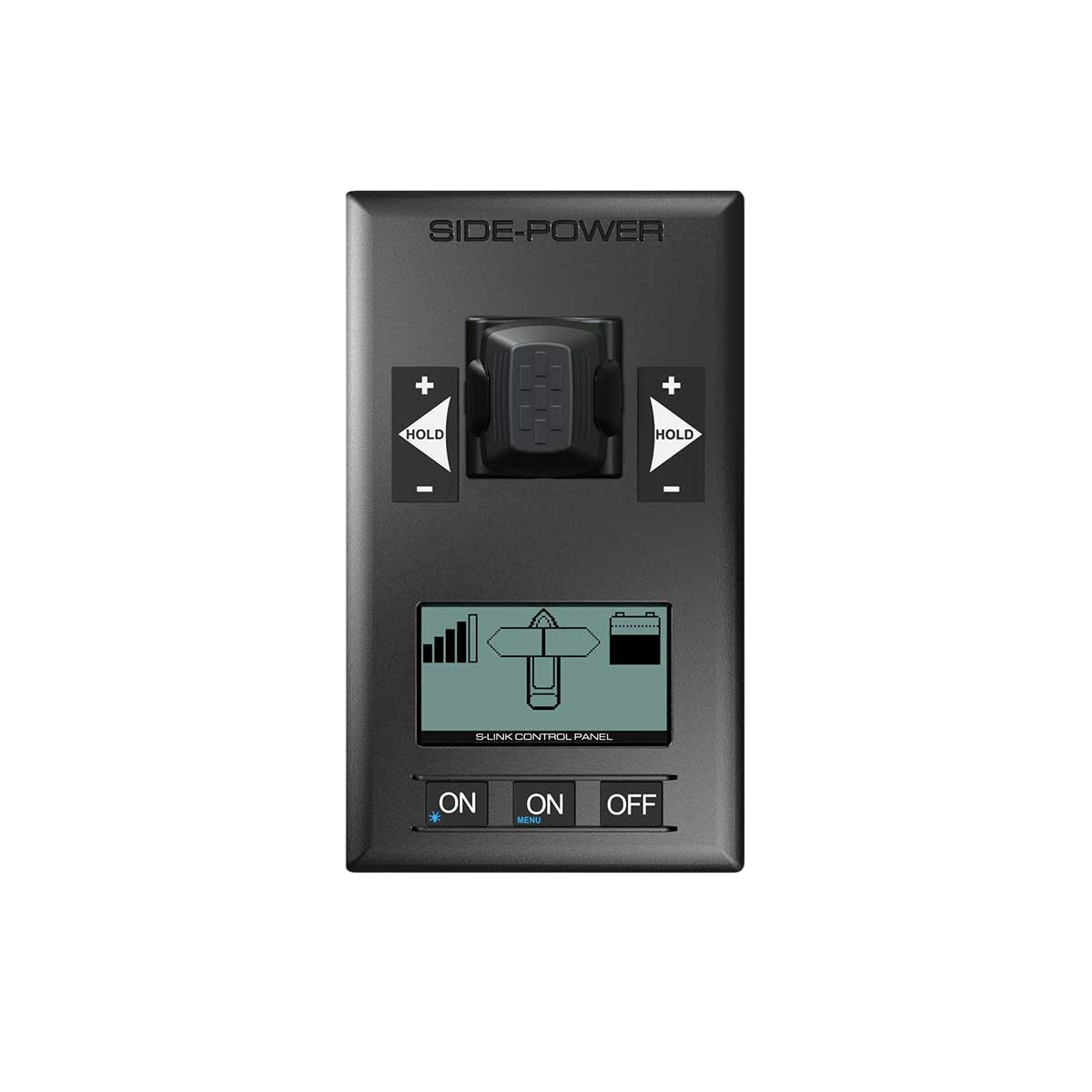

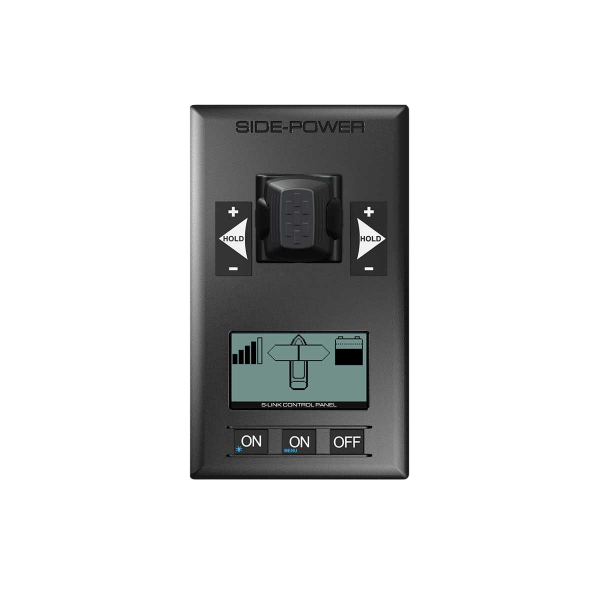

S-Link single joystick control for Pro electric thrusters

For Pro 12 and 24V electric and retractable thrusters

System benefits:
Continuously variable thrust for better control in all wind conditions.
Increased uptime under reduced load.
Simplified "Plug and Play" wiring using the CAN S-Link network.
Improved reliability thanks to continuous load control: the motor's power reversing relay is only switched under no-load conditions.
Function to maintain thrust at the desired level
Operating parameters displayed on backlit LCD screen:

• Thrust level and direction
• Remaining operating time
• Battery voltage
• Thruster and drive temperatures
• Current and power consumption
• Visual and audible alarms
• On-screen system diagnostics
• Multilingual menus
• Adjustable backlight

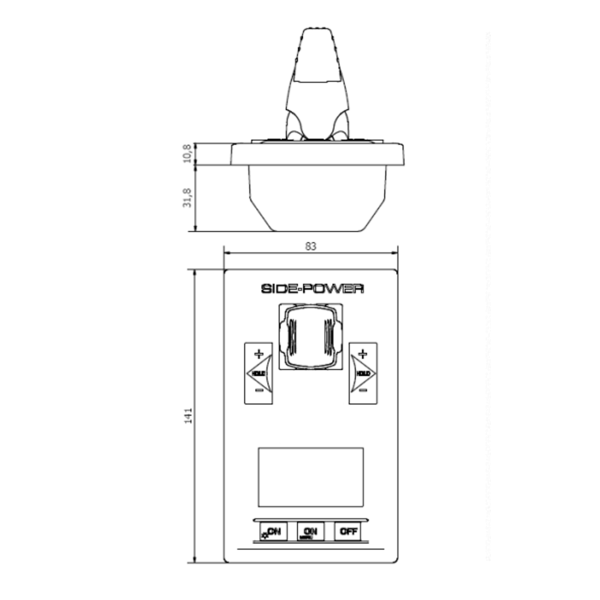

• Dimensions (hxwxd): 141 x 83 x 43 mm

Technical specifications :

PRO

A PRO™ thruster system lets you apply only the power you need to complete your maneuver. Variable speed control eliminates the noise associated with standard on/off thrusters.

With a dual configuration (front and rear), you also benefit from a convenient hold function allowing you to set and leave the thrust level.

S-LINK

S-Link is a CAN-based control system used for communication between Sleipner Side-Power products installed on a vessel.

• Compact, waterproof connectors
• Color-coded, keyed connectors for easy, correct installation.
• Different cable lengths, extenders and T-connectors make the system scalable and flexible to install.

Hold-Function

• Docking your boat has never been easier. At the touch of a button, you can rely on your thrusters to hold the boat against the dock while you descend to secure the lines - making docking a one-person job.

DC

• Powered by direct current.

Smart Shut-Off

• Sleipner control panels are programmed to shut down automatically after about 6 minutes without use, to prevent accidental activation.

Safe start-up

• Sleipner control panels use dual ON buttons to engage the product to start, preventing accidental activation for a child-safe environment and peace of mind on your boat.

Splash-Proof

• This product is manufactured for installation in environments that may experience wet or occasional splashing.

UV protection

• This product is made from a UV-resistant material offering extra protection against the damaging effects of the sun's ultraviolet rays.
