Altair AGC antenna

Ref. OSC-29.926.50

On the water, the Glomex Altair AGC antenna lets you enjoy DTT without any adjustments. Its automatic gain control smoothes out signal variations, for a stable 360° image.

The 12 V amplifier fits discreetly on board, and the long coaxial cable simplifies installation, so you can enjoy peace of mind both at anchor and dockside.

Read more Features
from
€321.58
Public price
€359.21
-10%
Price tax excl. / DOM TOM €321.58
Quantity
Choose a version
In stock in 8 to 10 days
321 loyalty points.
Article
Variant Model name Ø mm Height mm Base Ø mm peso_grammi Reception angle Impedance DAB Frequency range Average gain Consumption Power supply Gain adjustment TV set max Termination
In stock in 8 to 10 days
White antenna Avior VT300 100 210 25 250 360° 75 Ω No 40/890 MHz 21 dB 20 mA 12 Vdc No 1 Female 25 mm
€79.92
OUT OF STOCK
Black antenna Avior VT300 100 210 25 250 360° 75 Ω No 40/890 MHz 21 dB 20 mA 12 Vdc No 1 Female 25 mm
€83.25
In stock in 8 to 10 days
White antenna Nashira V9112AGCU/ DAB20 370 495 25 975 360° 75 Ω Yes 87.5/774 MHz 24 dB 180 mA 12-24 Vdc Automatic 2 Female 25 mm
€266.58
In stock in 8 to 10 days
White antenna Talitha V9125AGCU/ DAB20 250 120 25 350 360° 75 Ω Yes 87.5/774 MHz 23 dB 180 mA 12-24 Vdc Automatic 2 Female 25 mm
€164.92
In stock in 8 to 10 days
Black antenna Talitha V9125AGCU/ DAB20 250 120 25 350 360° 75 Ω Yes 87.5/774 MHz 23 dB 180 mA 12-24 Vdc Automatic 2 Female 25 mm
€164.92
In stock in 8 to 10 days
White antenna Altair V9126AGCU 250 300 25 430 360° 75 Ω Yes 87.5/774 MHz 24 dB 180 mA 12-24 Vdc Automatic 2 Female 25 mm
€321.58
OSC-29.926.50

Data sheet

Product type
Antenna
Description

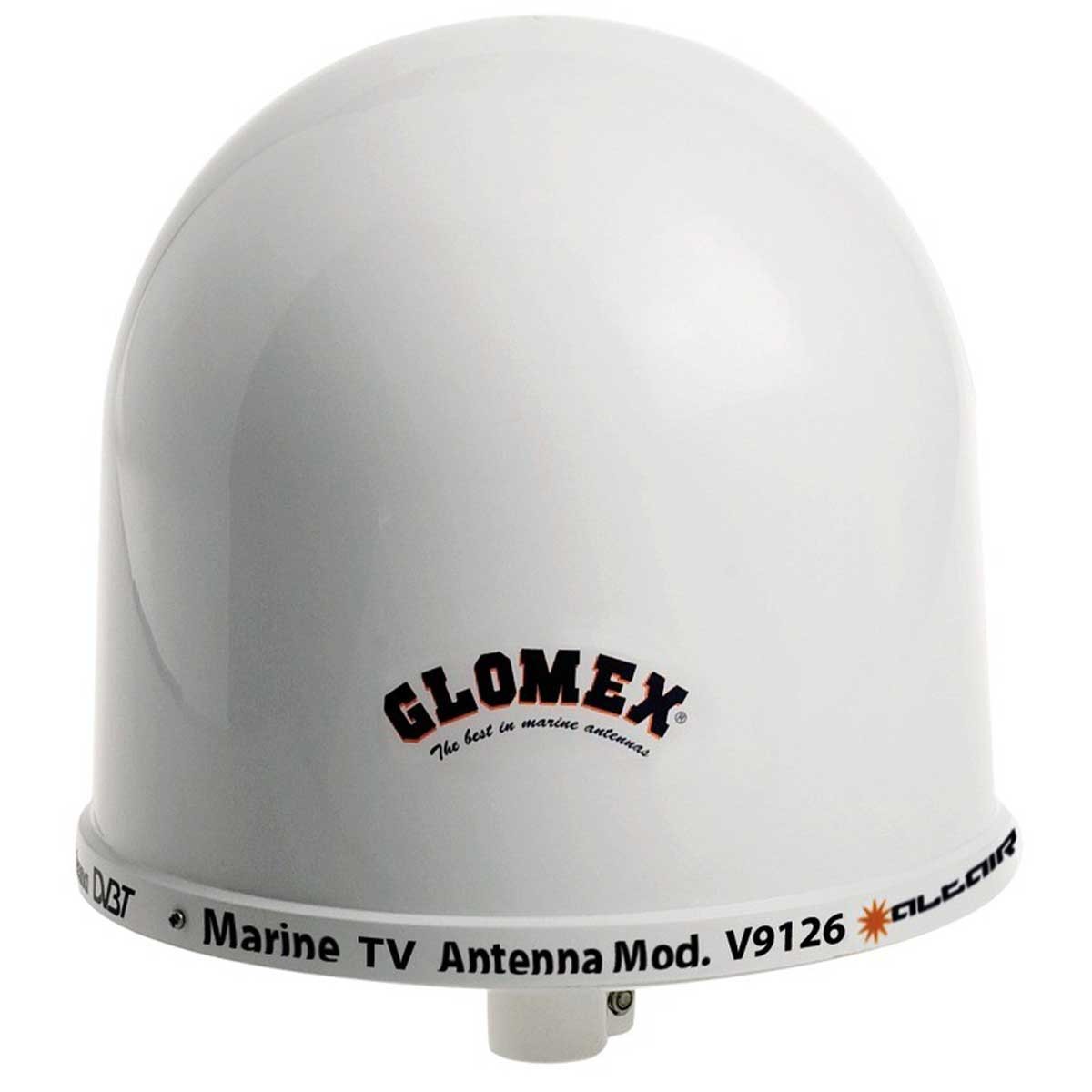

Glomex - Altair AGC antenna

Designed for coastal navigation, the Altair AGC provides headache-free 360° terrestrial TV reception. Automatic gain control continuously smoothes out variations to deliver a clean picture, whether the boat is turning, moving forward or at anchor.

The 12 V amplifier integrates unobtrusively on board for easy wiring. In heavily covered areas, the by-pass mode avoids saturation, while the shore input lets you switch to another on-board source.


Antenne TV Glomex Altair AGC

CLEAN IMAGE WITHOUT ADJUSTMENT

Automatic gain control compensates for level differences due to distance, obstacles or reflections in marinas. You can watch DTT in full HD without having to juggle with the settings, while retaining control for fine-tuning if necessary.

  • Omnidirectional TV reception
  • AGC for signal smoothing
  • Manual adjustment possible
  • More consistent picture comfort

Whether in port or at anchor, signal stability makes channel changes smoother and the experience more enjoyable.


12 V POWER SUPPLY VIA AMPLIFIER

The 12 V injector feeds the antenna via the coaxial cable for clean installation behind the TV or at the electrical panel. The standard base (⌀ 25mm) makes it easy to install on a baseplate, mast, gantry or balcony, with a solid, durable attachment.

  • 12 V via injector
  • Standard 1" thread mounting
  • Designed for the marine environment
  • Compatible with TV sets and DVB decoders-T2

Go light, avoid scattered amps and boxes, everything is thought out for the boat.

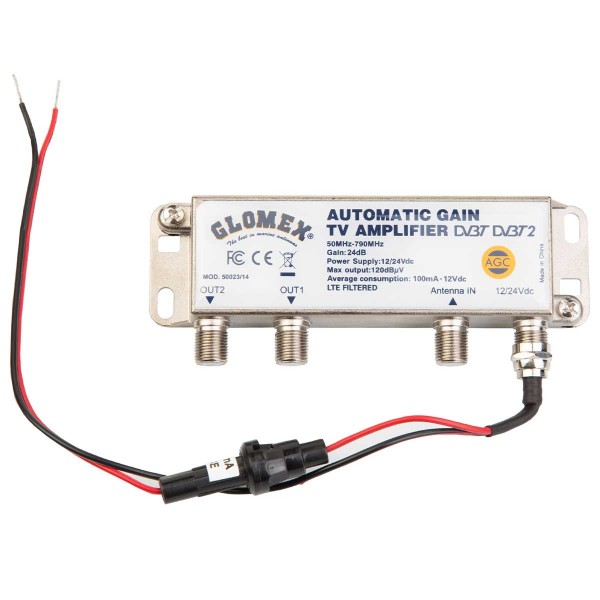

Amplificateur Glomex 50023 pour Altair AGC

KEY FEATURES

  • 360° omnidirectional
  • AGC for a stable signal
  • Antenna height: 300 mm
  • Antenna diameter: 250 mm
  • Simple, durable installation
  • 12 V power supply via amplifier

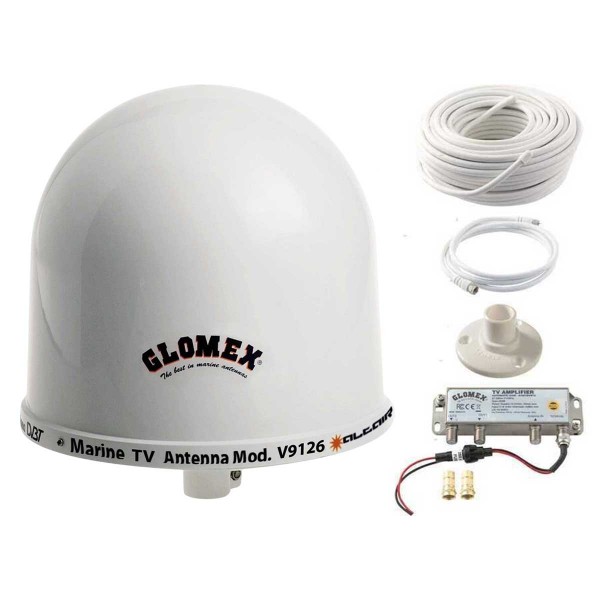

BOX CONTENTS :

  • 1 - Antenna Glomex Altair AGC
  • 1 - 50023/14 series amplifier
  • 1 - 20 m coaxial cable
  • 1 - TV coaxial cable 1.5 m
  • 1 - F connector tool

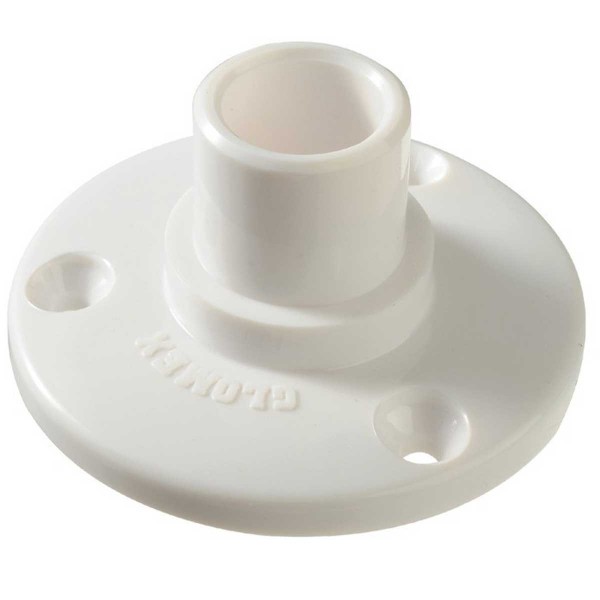

  • 1 - Mounting bracket
  • 1 - PDF documentation


Download

TV antenna manual Glomex

Altair TV antenna installation manual - Talitha - Nashira Glomex (EN-FR-IT)

Download (1.56M)
