Ventura Series SAT connector

Name: Ventura Series SAT connector
Brand: Scanstrut

The Scanstrut Ventura Series SC-V-TV1 SAT flush-mount connector, for TV and satellite on board or in the van. With its double F-type coaxial plug in nickel-plated brass and 75-ohm impedance, it provides clean, reliable passage.

IP68-IP69K protection on the front panel with closed cover protects connectors hermetically.

Scanstrut - SAT Ventura Series connector SC-V-TV1

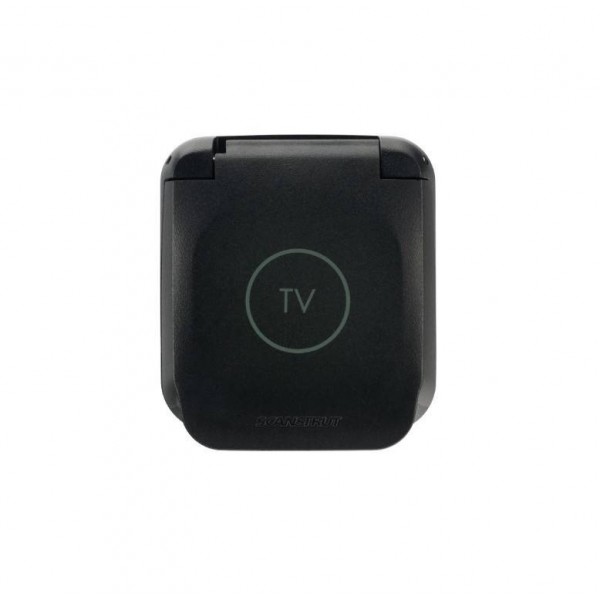

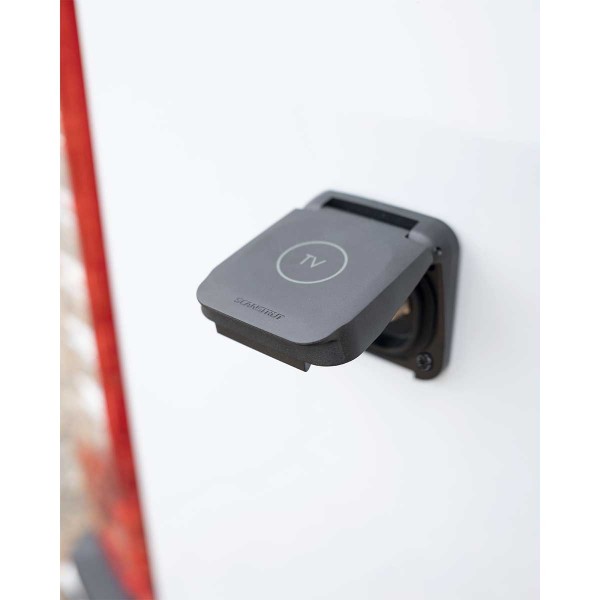

The Ventura Series SAT connector is a flush-mounted outlet designed for clean, uncluttered TV and satellite connections. Once closed, it remains unobtrusive and protects the connector from splashes.

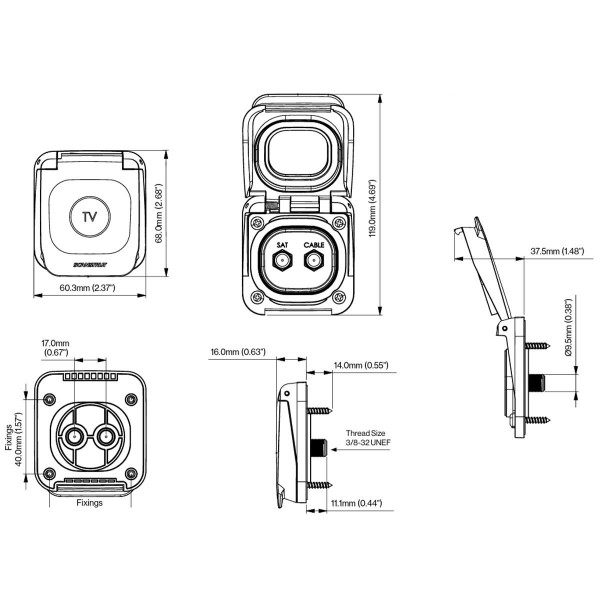

It features a double F-type coaxial connection, suitable for TV and satellite systems with 75 ohm impedance. The front panel is waterproof to IP68-IP69K when closed. Installation is by means of a Ø38 mm hole, followed by screw fixing with a properly compressed gasket on a flat surface.

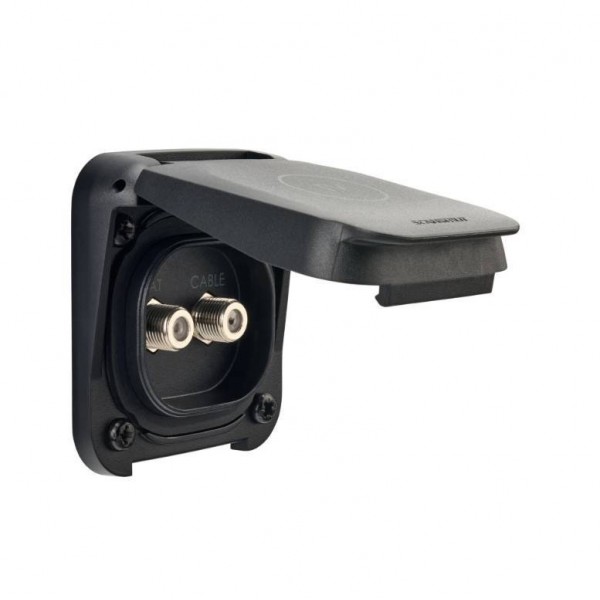

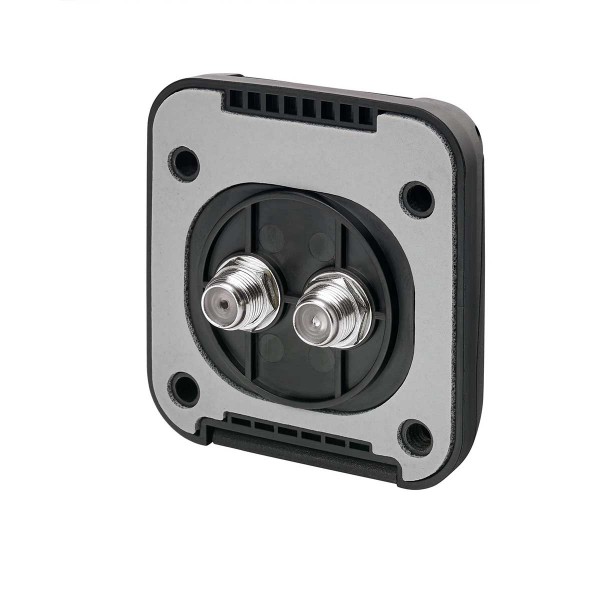

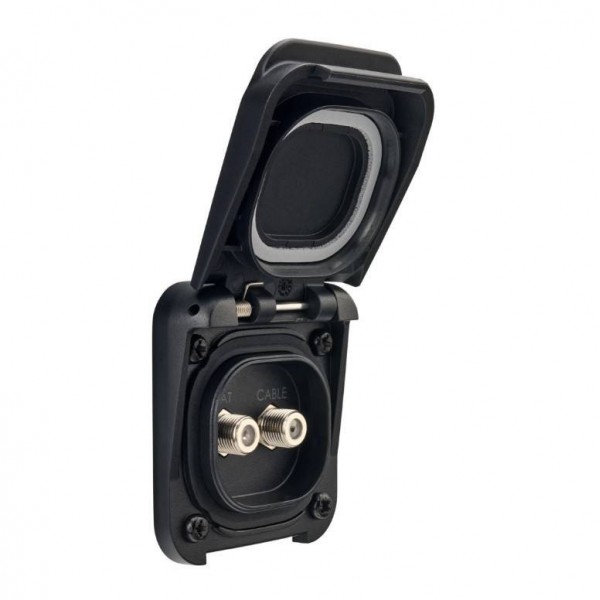

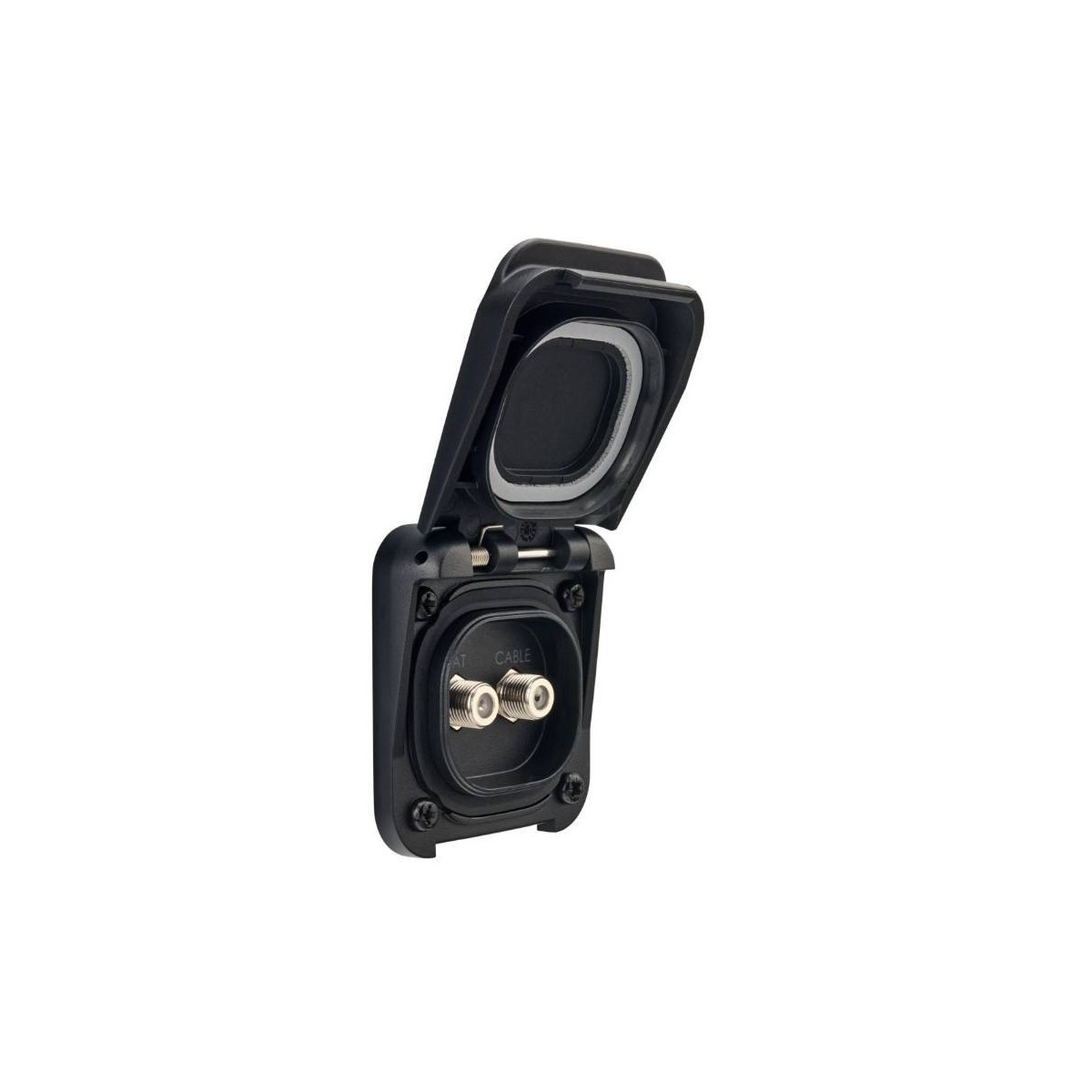

	F-type dual connection for TV and satellite This socket combines two F-type coaxial inputs, so you can organize your connections neatly and avoid last-minute tinkering. The connector body is made of nickel-plated brass, with a 75-ohm impedance suitable for TV and satellite installations. Double F-type coaxial connection Compatible with TV and satellite systems Impedance 75 ohms Nickel-plated brass connection For reliable installation, we recommend using RG6 coaxial cable (not supplied). And to limit interference, avoid positioning the coaxial cable right next to electrical cables.

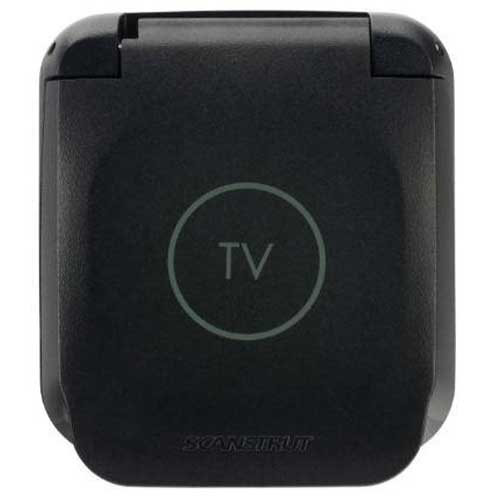

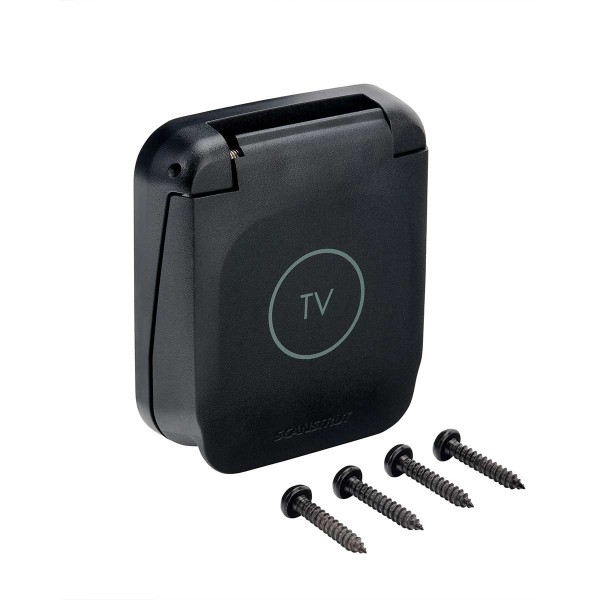

Waterproof front panel The front panel is designed for outdoor use, with IP68 protection-IP69K when the cover is securely closed and the connector is not in use. The cover must remain locked when not in use, such as when sailing or on the road. Tightness IP68-IP69K when front cover is closed Ø38 mm hole-saw drilling Mounting with 4 screws 90° retaining boss Mounting on flat surface
