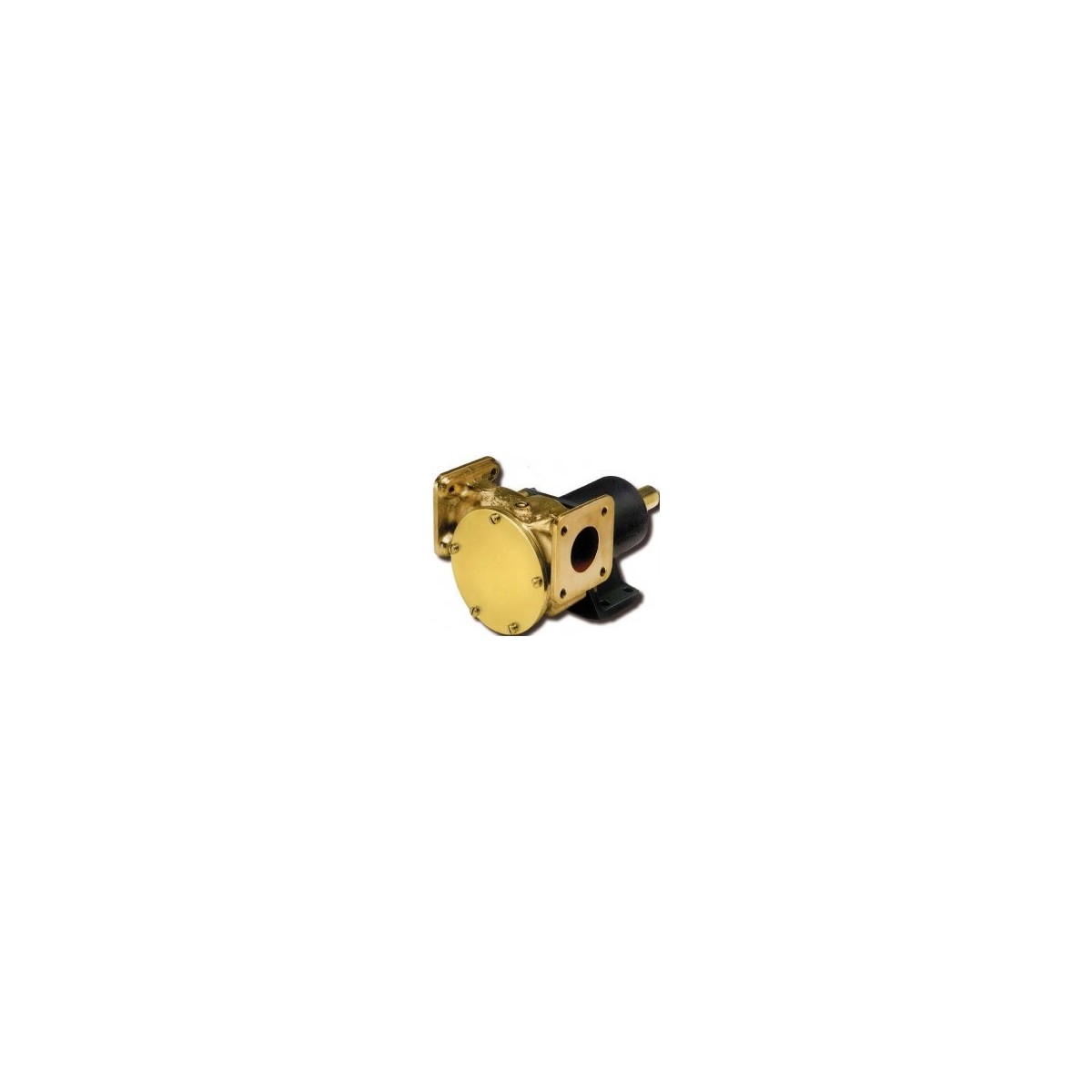

Bare shaft pump on bracket Series 52220

Self-priming pumps with neoprene flexible impellers for engine cooling, fire-fighting systems, bilge pumping, ballast transfer, high-flow deck washing, skimming...
Gauge indicates max flow at 1500rpm and 3m load (Hmt).

Gauge 200
261l/mm - 3m at 2000rpm max
H max: 24m - 159l/min
Body with flanges
Inlet/outlet: 1''1/2
Axis height 65mm
Shaft Ø 25mm
Dim. HT LxWxH: 253x153x150mm
Weight: 7kg
