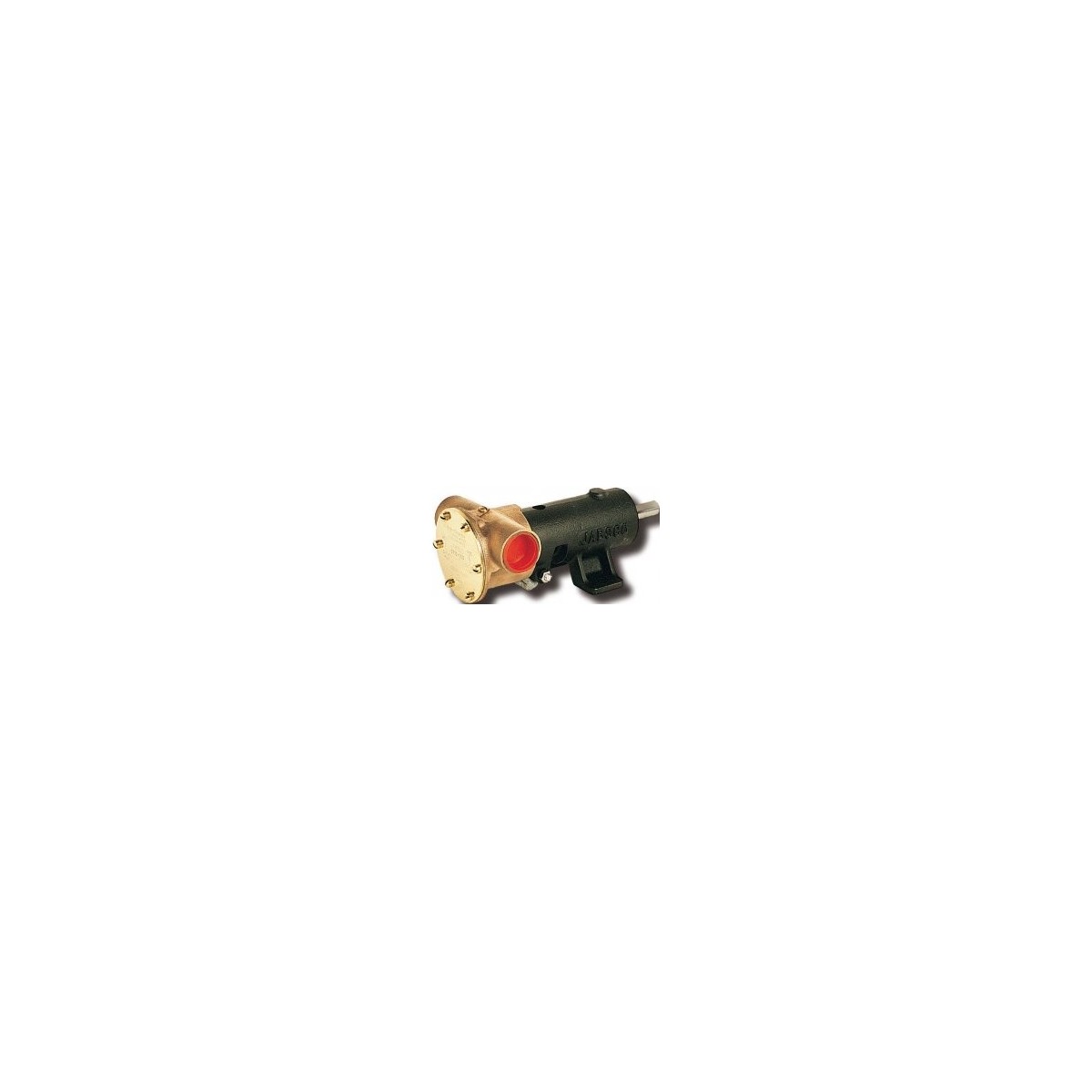

Bare shaft pump on support Series 9710

Self-priming pumps with neoprene flexible impellers for engine cooling, fire-fighting systems, bilge pumping, ballast transfer, high-flow deck washing, skimmers...
Gauge indicates max flow at 1500rpm and 3m load (Hmt).

Caliber 80
80l/mm - 3m at 1500rpm max
H max: 24m - 57l/min
Inlet/outlet: 1''
Axis height 48mm
Shaft Ø 16mm
Dim. HT LxWxH: 229x121x90mm
Weight: 3kg
