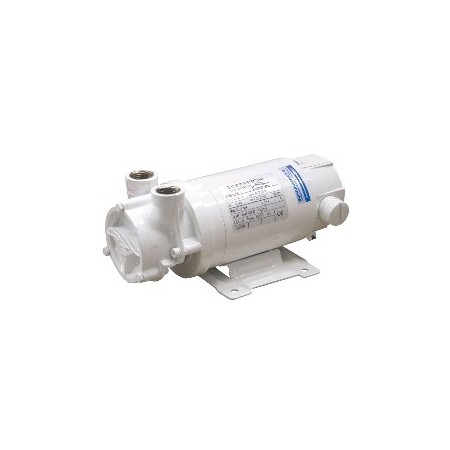

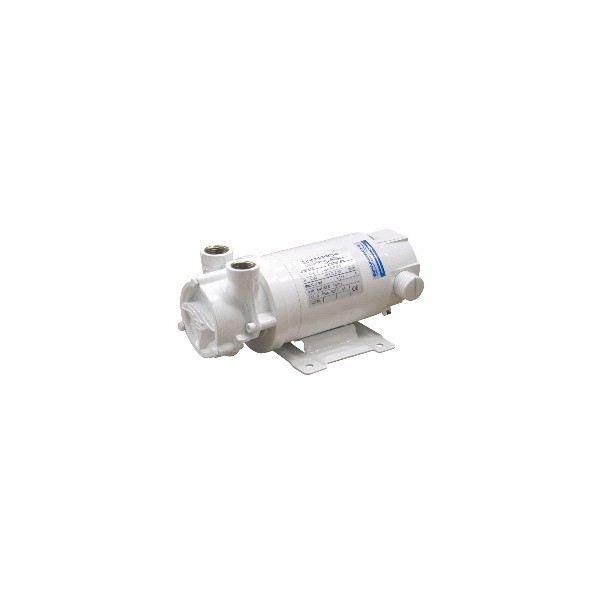

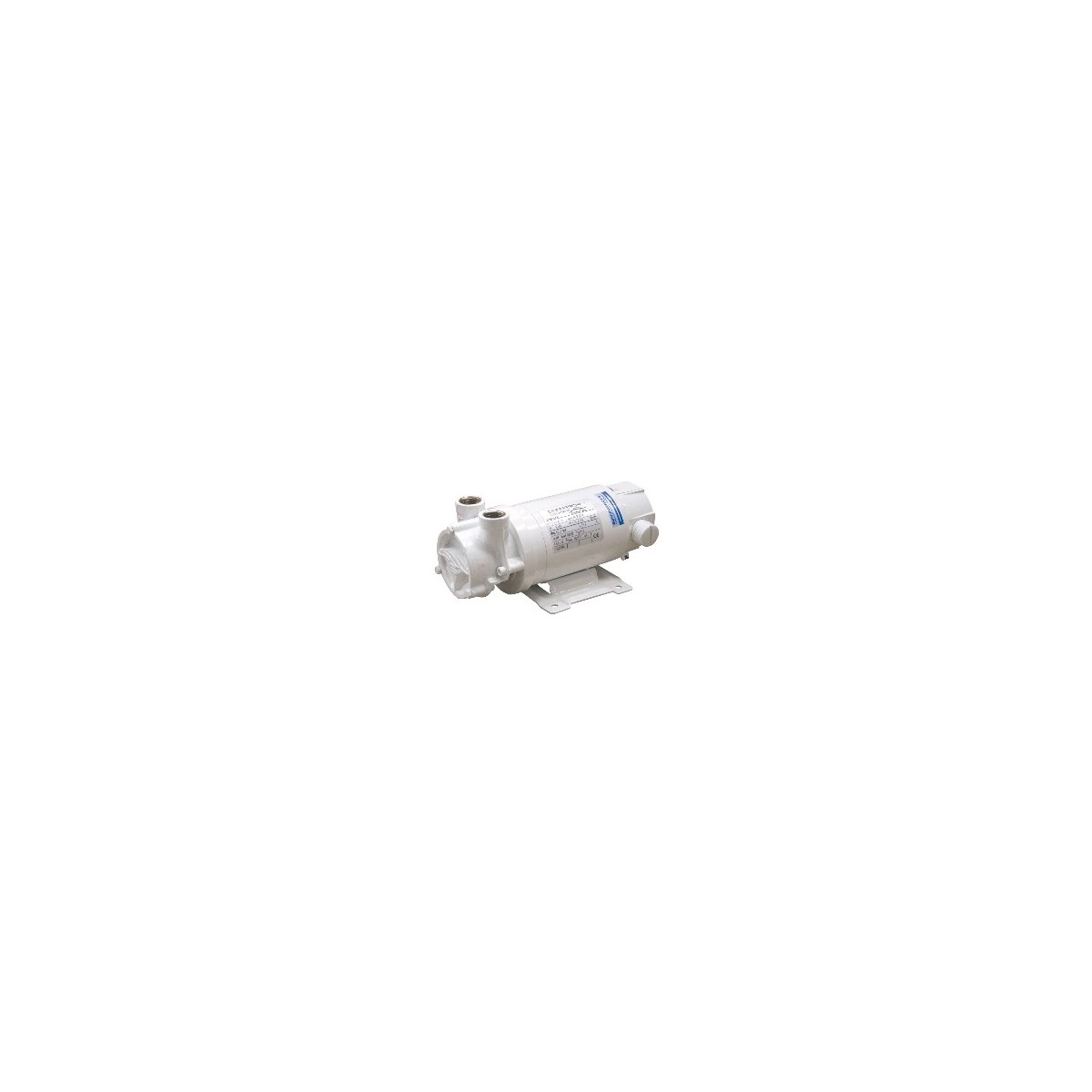

ACB61G 24V electric pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: chain washing, fire fighting, diesel transfer, fresh water, seawater, highly aerated liquids.

• 24V - 12A
• Power rating: 0.18kW
• Max. flow: 20L/mn at 0.2 bar
• Max. pressure: 2.1 bar at 2L/mn
• Inlet/outlet diameter: 1/2''
• Dim. LxWxH: 245x125x158mm
• Weight: 5kg

Pressures indicated are Hmt values (total head) converted to bar, for 10m=1bar. 60Hz motor on request.
