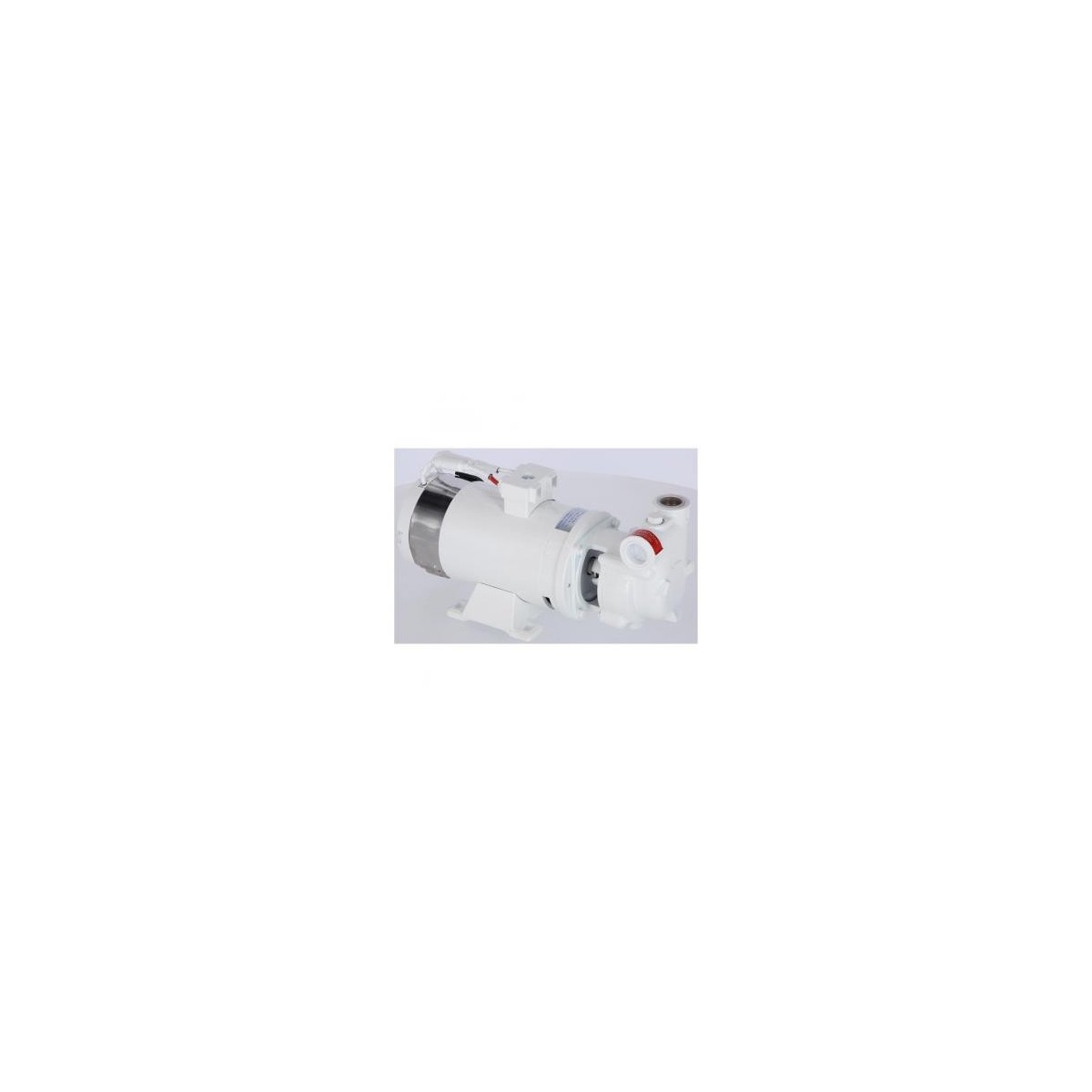

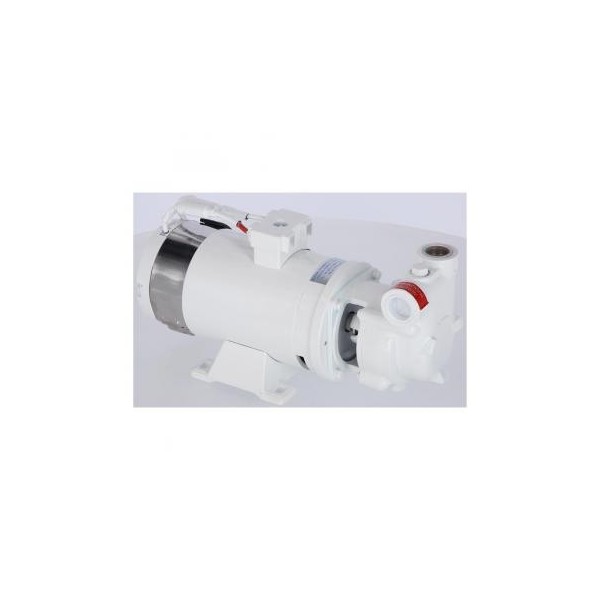

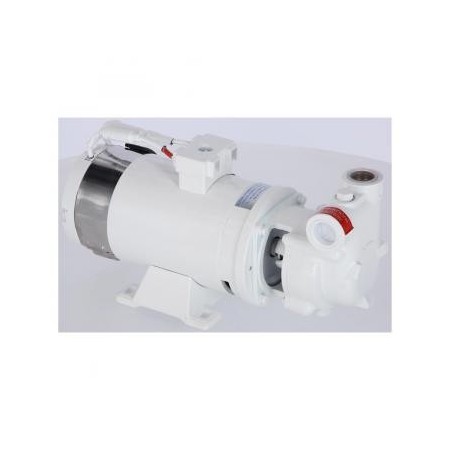

ACB80 24V electric pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: chain washing, fire fighting, diesel transfer, fresh water, seawater, highly aerated liquids.

• 24V - 23A
• Power rating: 0.37kW
• Max. flow: 40L/mn at 0.4 bar
• Max. pressure: 3.5 bar at 6L/mn
• Inlet/outlet diameter: 3/4''
• Dim. LxWxH: 326x155x160mm
• Weight: 11kg

Pressures indicated are Hmt values (total head) converted to bar, for 10m=1bar. 60Hz motor on request.
