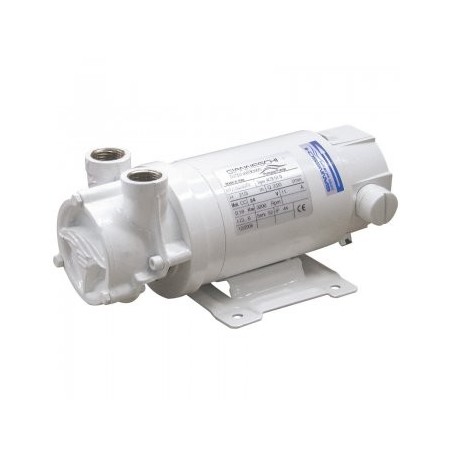

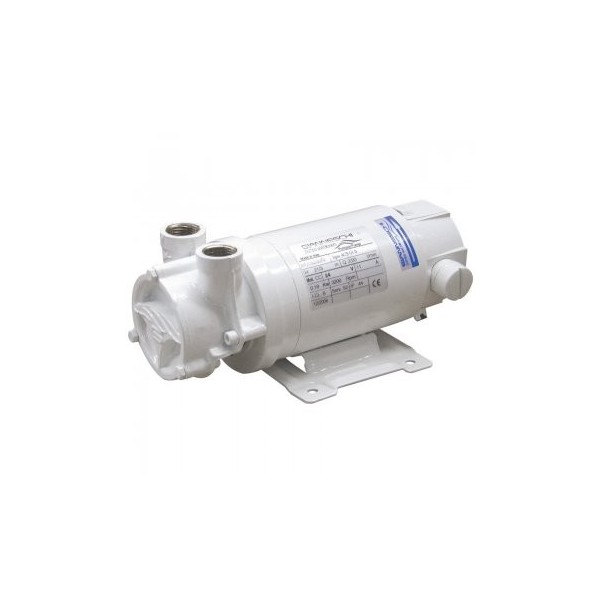

ACB90 24V electric pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: chain washing, fire fighting, diesel transfer, fresh water, seawater, highly aerated liquids.

• 24V - 26A
• Power rating: 0.44kW
• Max. flow: 50L/mn at 0.6bar
• Max. pressure: 3.4 bar at 10L/mn
• Inlet/outlet Ø: 1"
• Dim. LxWxH: 350x150x185mm
• Weight: 14kg

Pressures indicated are Hmt values (total head) converted to bar, for 10m=1bar. 60Hz motor on request.
