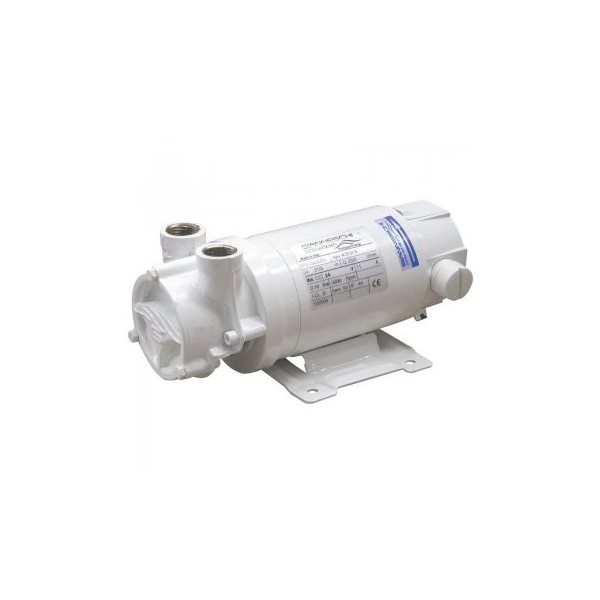

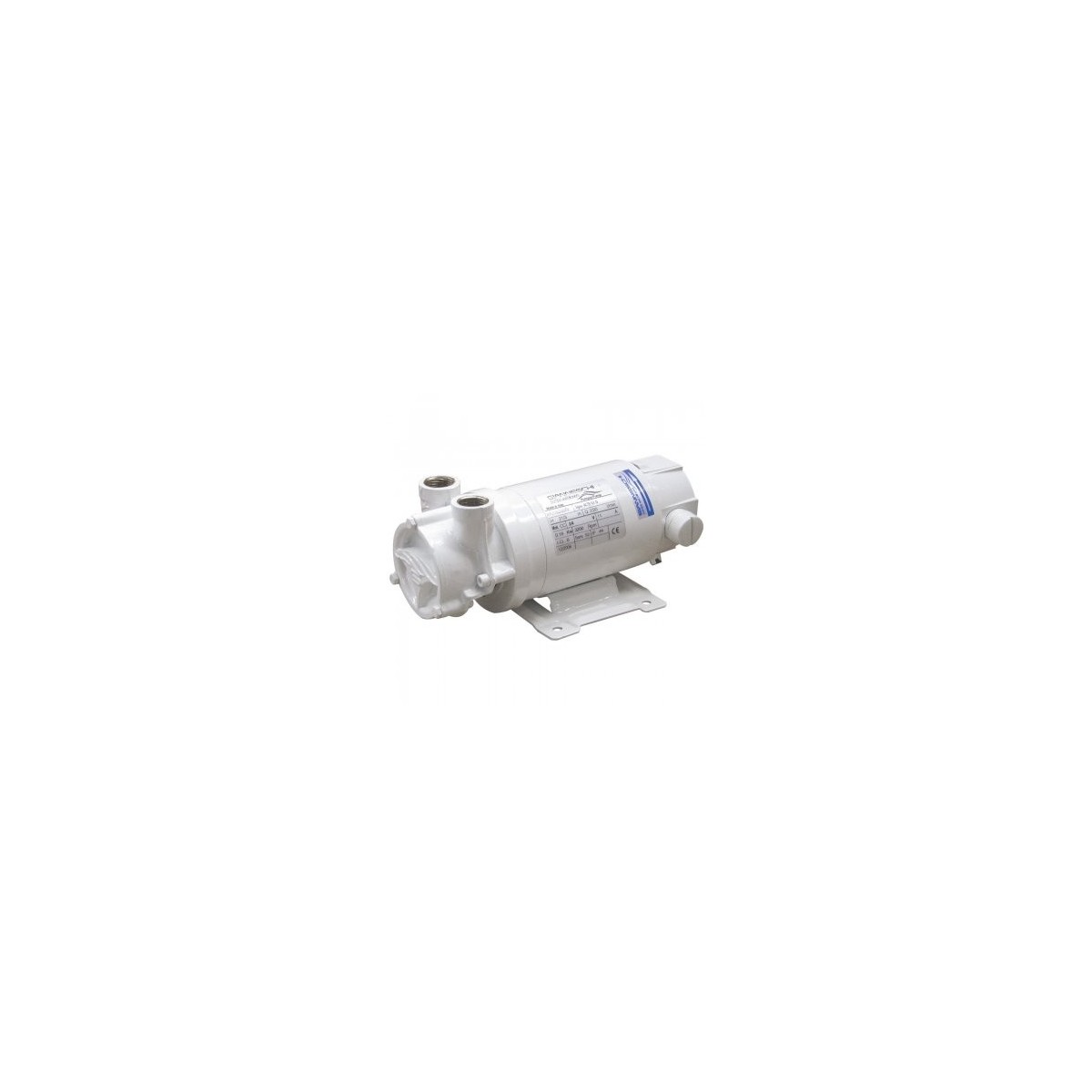

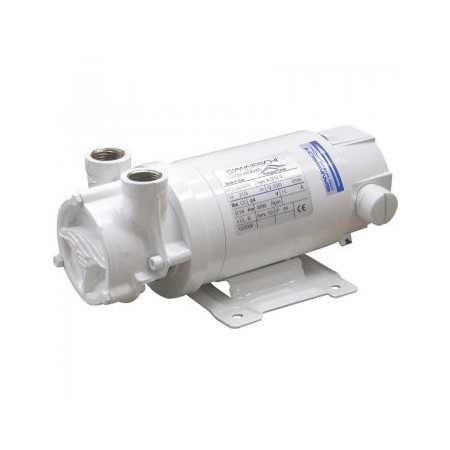

ACB90 230V electric pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: chain washing, fire fighting, diesel transfer, fresh water, seawater, highly aerated liquids.

• 230V mono - 450W
• Power rating: 0.55kW
• Max. flow: 54L/mn at 0.2 bar
• Max. pressure: 3.5 bar at 8L/mn
• Inlet/outlet Ø: 1''/1''
• Dim. LxWxH: 363x175x165mm
• Weight: 14kg

Pressures indicated are Hmt values (Total Manometric Height) converted to bar, for 10m=1bar. 60Hz motor on request.
