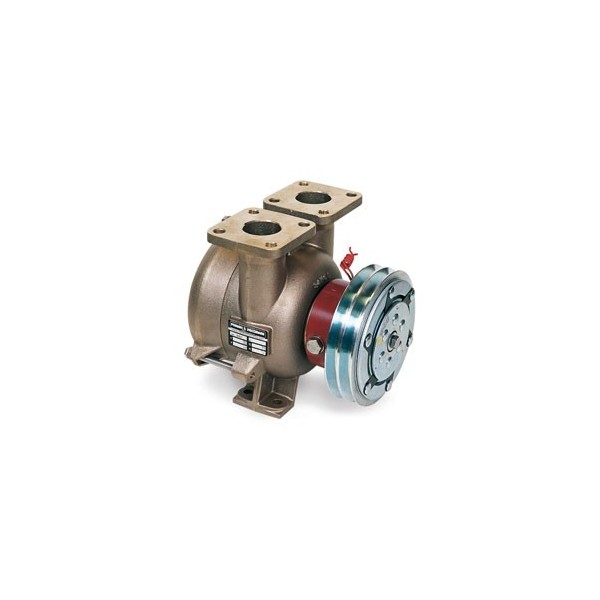

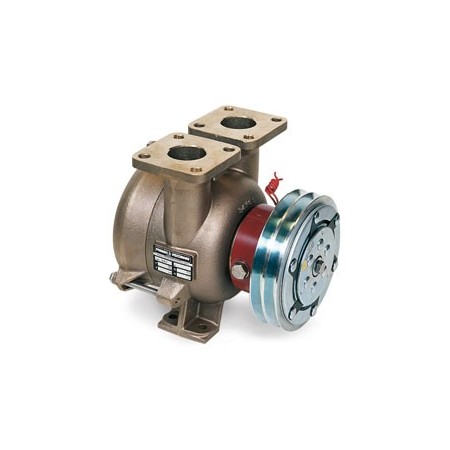

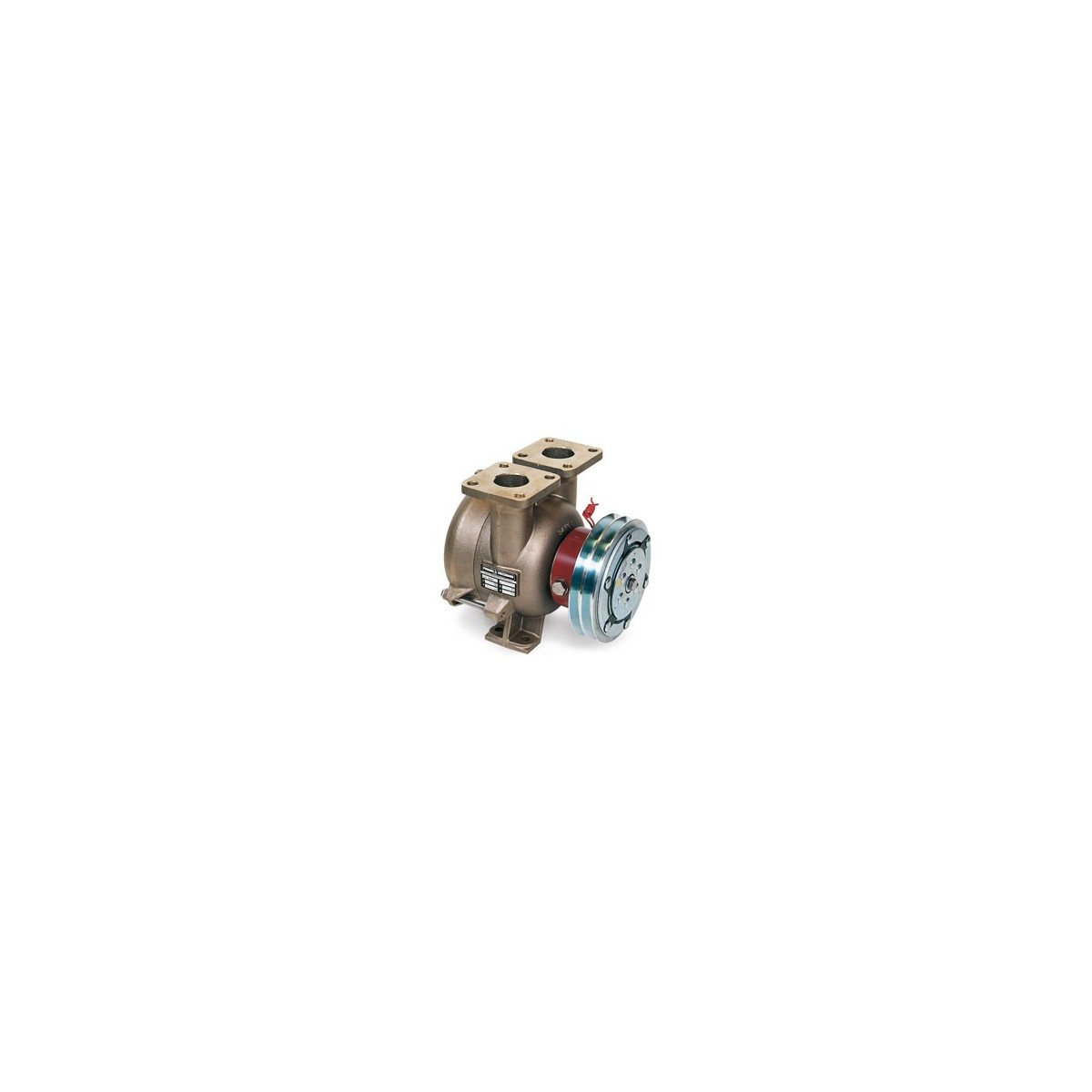

Forani B40 series pump with electromagnetic clutch

Self-priming side channel centrifugal pumps.

B40 pump
With 24V electromagnetic clutch, Ø 145mm pulley, 2 type A grooves.

• Flow rate up to 16m3/h.
• Hmt up to 25 mCE.
• Bronze body and impeller.
• Double direction of rotation.
• Stainless steel shaft and screws.
• Mechanical seal.

Freshwater / seawater, engine cooling, dewatering, washing, fire.

Compatible with diesel fuel.

Belt cross-section (lxh): type A groove: 13.0x8.0 - type B groove: 17x11 - type SPA groove: 12.7x10 - type SPB groove: 16.3x13
