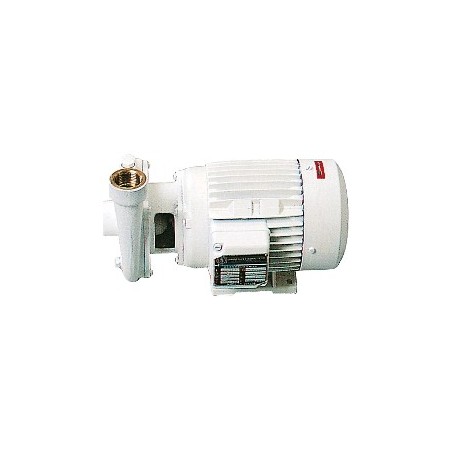

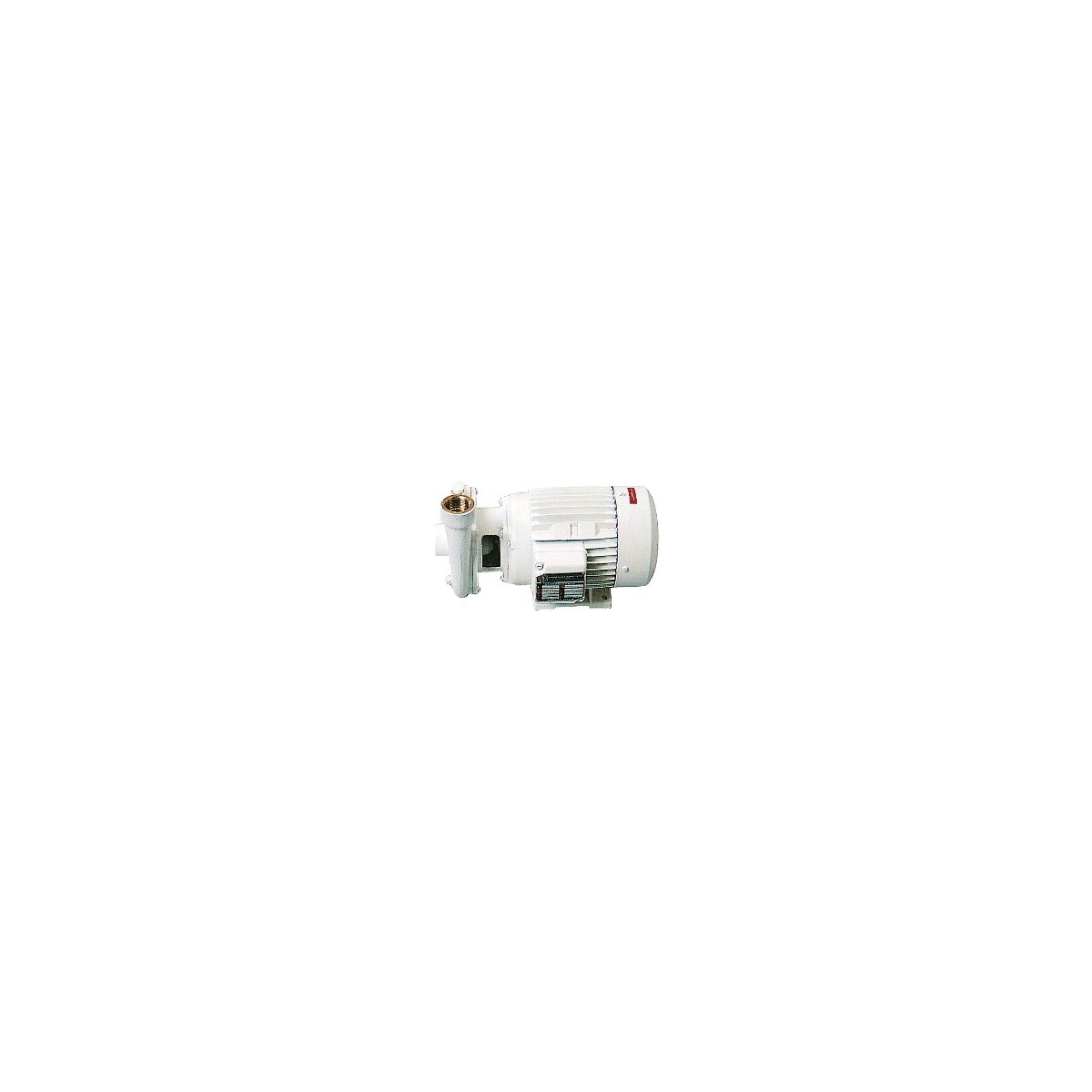

ELECTROPUMP CB22 220V M. BRONZE

Types: non-self-priming centrifugal.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: distribution of clean water (fresh or sea water), even slightly contaminated water, air-conditioning systems. Continuous duty in AC version.

• Model: CB22-120
• Voltage: 230V
• Power rating: 0.55kW
• Max. flow: 150L/min at 0.8 bar
• Max. pressure: 2.1 bar at 30 L/mn
• Inlet/outlet Ø: 1
• Dim. LxWxH: 330x175x160mm
• Weight : 15kg

Pressures indicated are Hmt (total head) values converted to bar, for 10m=1bar. 60Hz motors on request.
