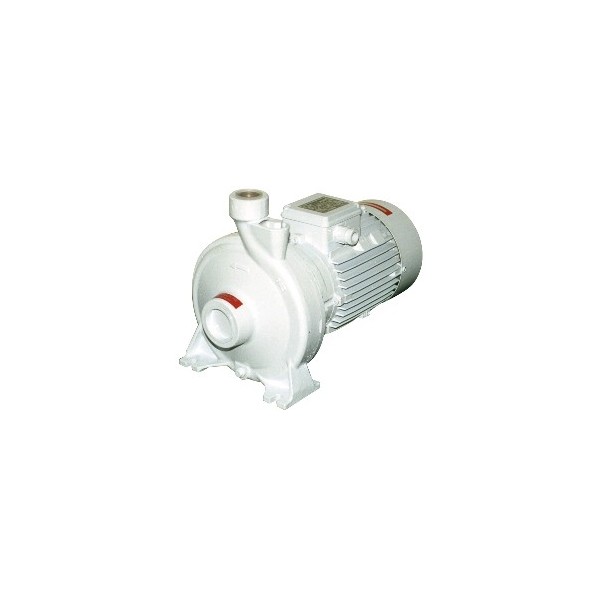

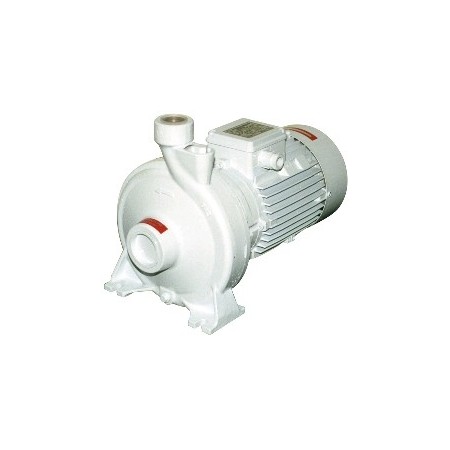

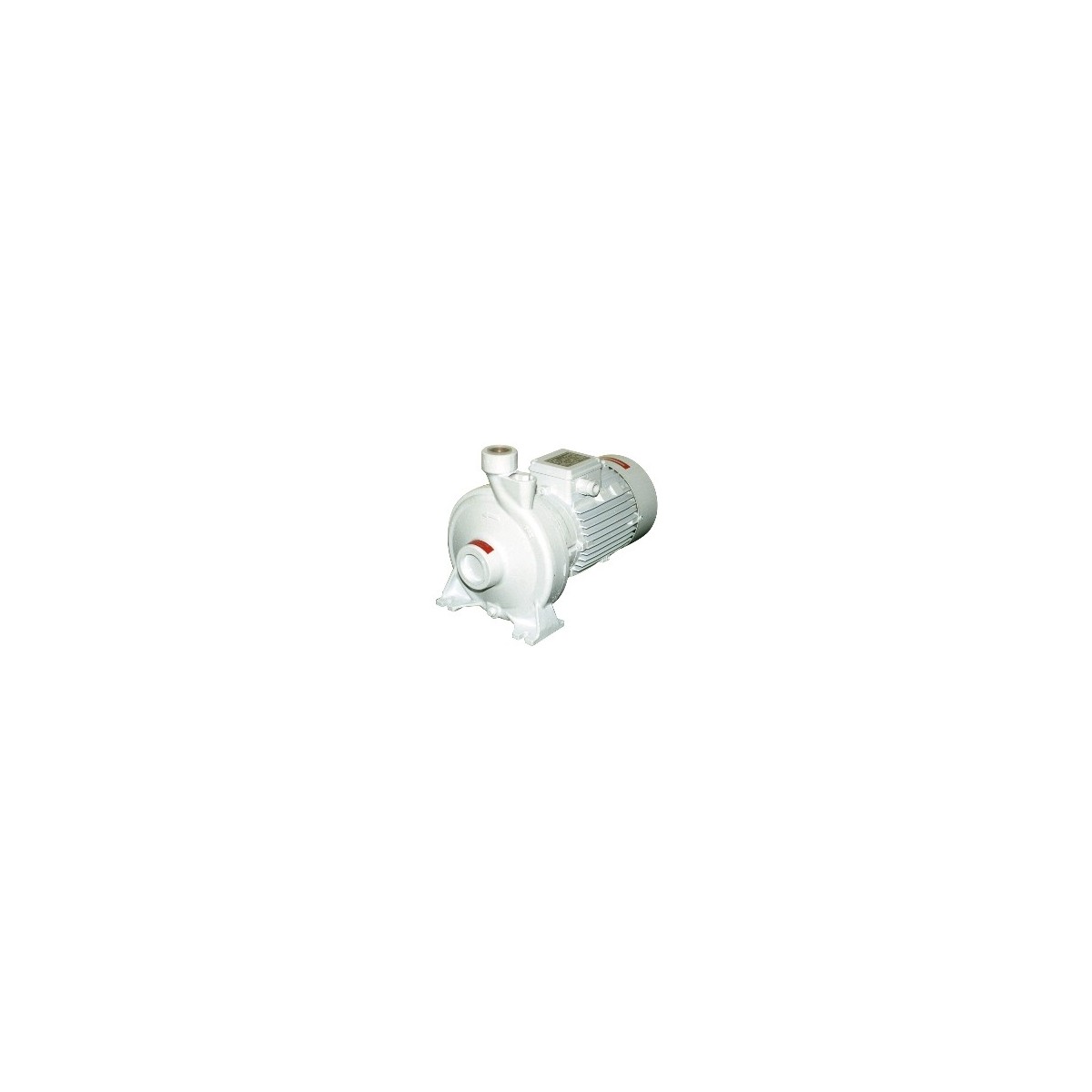

CB25/16A 230/400V electric pump

Types: non-self-priming centrifugal.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: distribution of clean water (fresh or sea water), even slightly contaminated water, air-conditioning systems. Continuous duty in AC version.

• Model: CB25/16A
• Voltage: 230/400V
• Power rating: 1.5kW
• Max. flow: 160L/min at 3.1 bar
• Max. pressure: 3.6 bar at 50 L/mn
• Inlet/outlet Ø: 1"1/2-1
• Dim. LxWxH: 380x200x290mm
• Weight: 27kg

Pressures indicated are Hmt values (total head) converted to bar, for 10m=1bar. 60Hz motors on request.
