Forani CM65 series straight rotation pump

Non-self-priming centrifugal pumps.

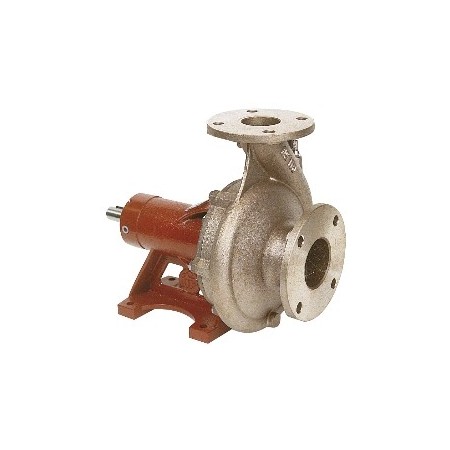

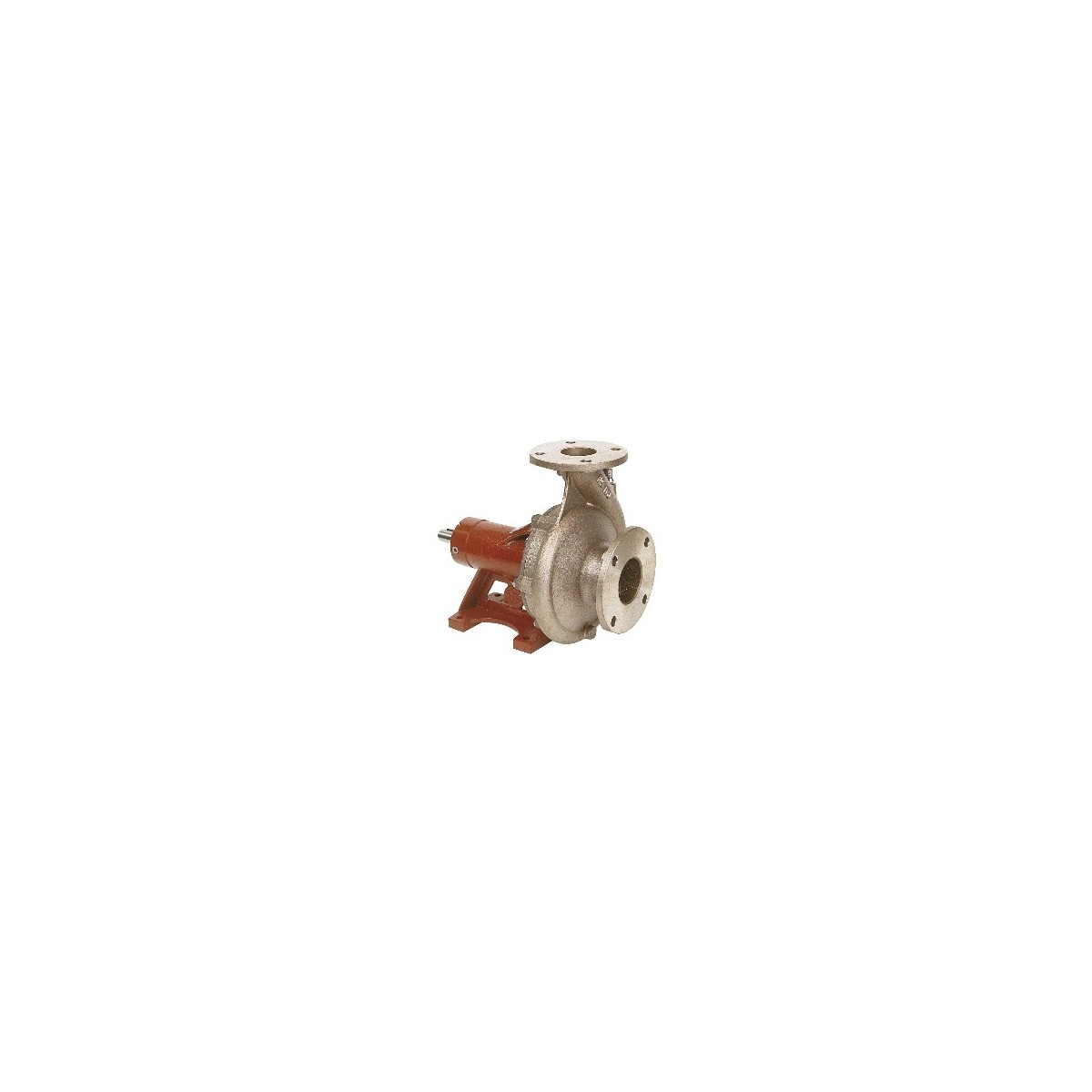

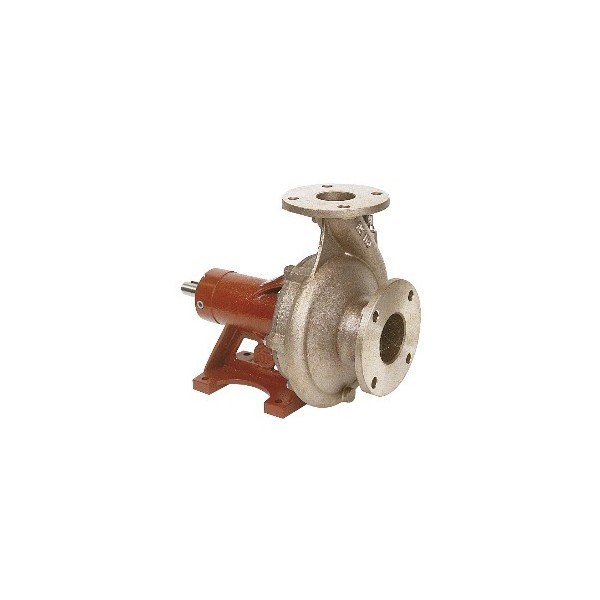

CM65D200 pump
Bare shaft, straight rotation, 100 m3/h max, 3" suction flange, 2"1/2 discharge flange, Ø 32mm shaft, max. rotation speed 3000rpm, weight 52.5kg.

• Hmt up to 85 mCE. Bronze body and impeller.
• Open impeller option for light liquids on CM40 and CM50 series.
• Stainless steel shaft and screws.
• Mechanical seal.

Freshwater / seawater, engine cooling, washing, fire-fighting, ballast, brine transfer...

Compatible with diesel fuel.

All models can be fitted with a mechanical or electromagnetic clutch, or in monobloc design with electric, hydraulic or thermal motor.

Belt cross-section (lxh): type A groove: 13x8 - type B groove: 17x11 - type SPA groove: 12.7x10 - type SPB groove: 16.3x13
