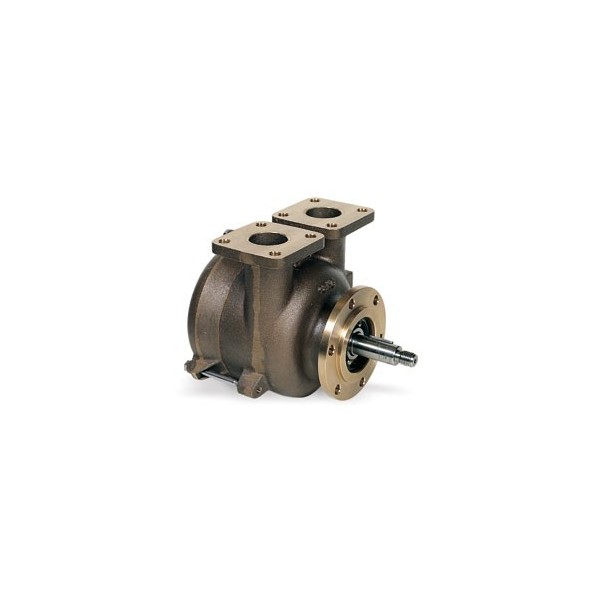

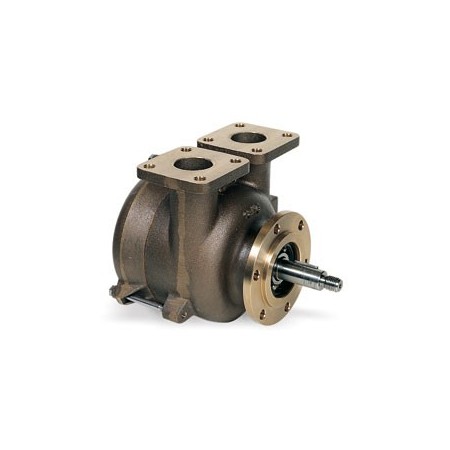

Forani B40VS2 series flange-mounted pump

Self-priming side-channel centrifugal pumps.

B40VS2 pump
Bare shaft flange, max. 16m3/h, 1"1/2 flanges, Ø 22mm shaft, max. rotation speed 2000 rpm, weight 14 kg.

• Hmt up to 25 mCE.
• Bronze body and impeller.
• Double direction of rotation.
• Stainless steel shaft and screws.
• Mechanical seal.

Freshwater / seawater, engine cooling, dewatering, washing, fire.

Compatible with diesel fuel.

Belt cross-section (lxh): type A groove: 13.0x8.0 - type B groove: 17x11 - type SPA groove: 12.7x10 - type SPB groove: 16.3x13
