Forani AM65 series pump

Self-priming centrifugal pumps.

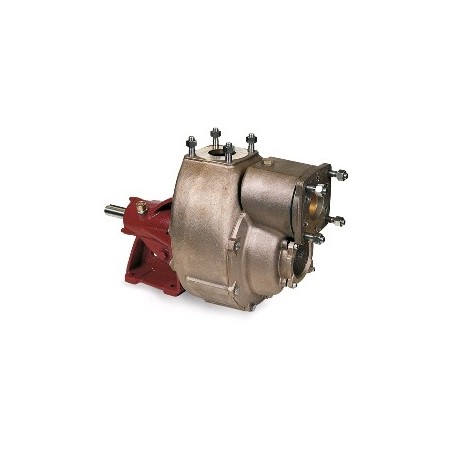

Pump AM65D200A
Bare shaft, straight rotation, 100m3/h max, 3'' suction flange, 2"1/2 discharge flange, Ø 32mm shaft, max. rotation speed 3000rpm, weight 82kg.

• Hmt up to 55 mCE.
• Bronze body and impeller.
• Open impeller option for light liquids on AM40 and AM50 series.
• Stainless steel shaft and screws.
• Mechanical seal.

Freshwater / seawater, engine cooling, washing, fire, etc.

Compatible with diesel fuel.

All models can be fitted with a mechanical or electromagnetic clutch, or as a monobloc unit with electric, hydraulic or thermal motor.

Belt cross-section (lxh): type A groove: 13x8 - type B groove: 17x 11 - type SPA groove: 12.7x10 - type SPB groove: 16.3x13
