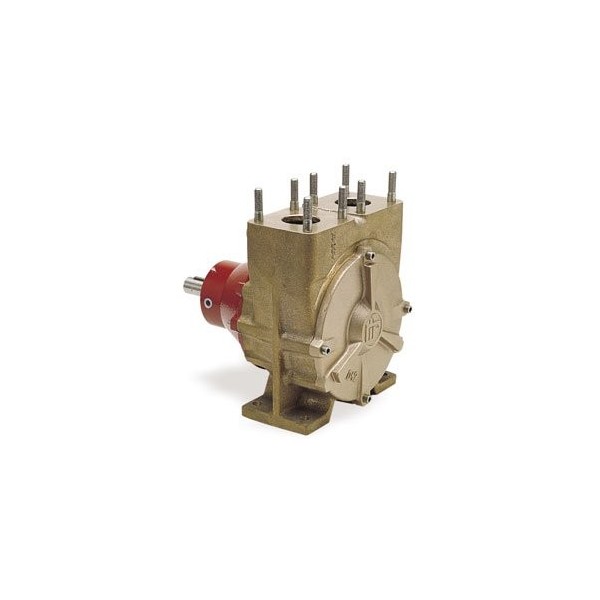

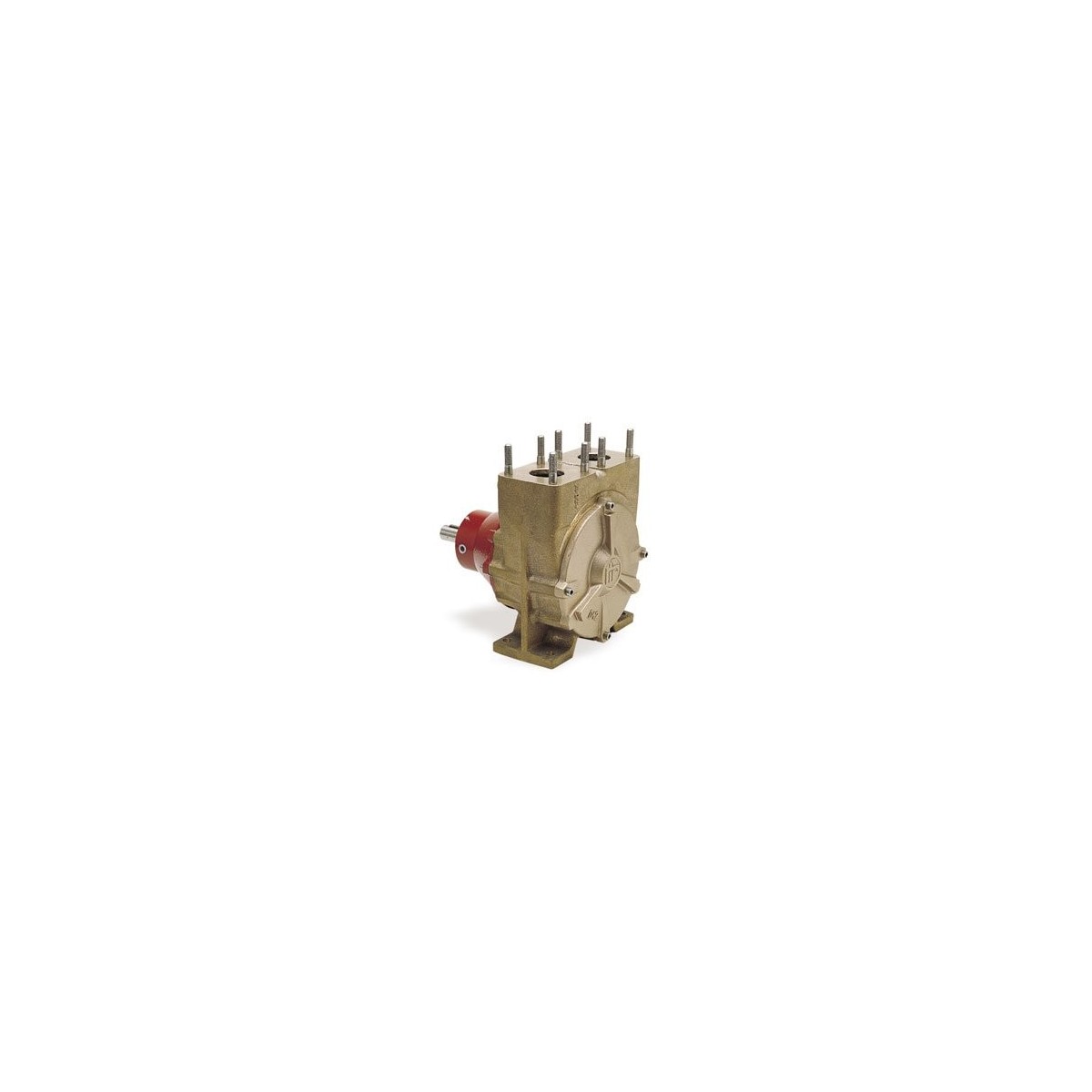

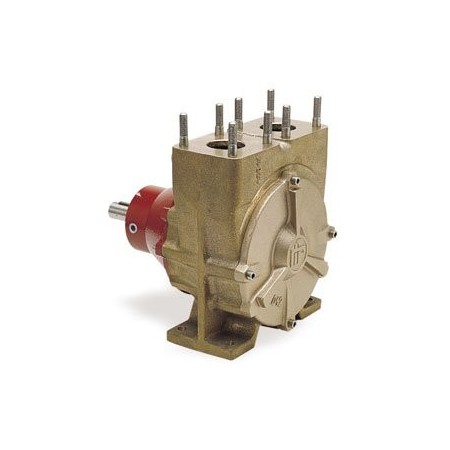

Forani TS50D18 series bare shaft pump

Bare shaft pump 40m3/h max, 2" flanges, Ø 22mm shaft, max. rotation speed 2000rpm, weight 28 kg.

Belt cross-section (lxh): type A groove: 13x8 - type B groove: 17x11 - type SPA groove: 12.7x10 - type SPB groove: 16.3x 3.

Self-priming side channel centrifugal pumps.

• Hmt up to 50 mCE.
• Bronze body and impeller.
• Supplied in right-hand rotation. Left-hand rotation possible by swapping the two internal disks.
• Stainless steel shaft and screws.
• Mechanical seal.

Freshwater / clean seawater, engine cooling, dewatering, washing, fire.

The extremely steep characteristic curves of these pumps can solve many pumping problems. All models can be fitted with a mechanical or electromagnetic clutch, or with a monobloc electric motor.
