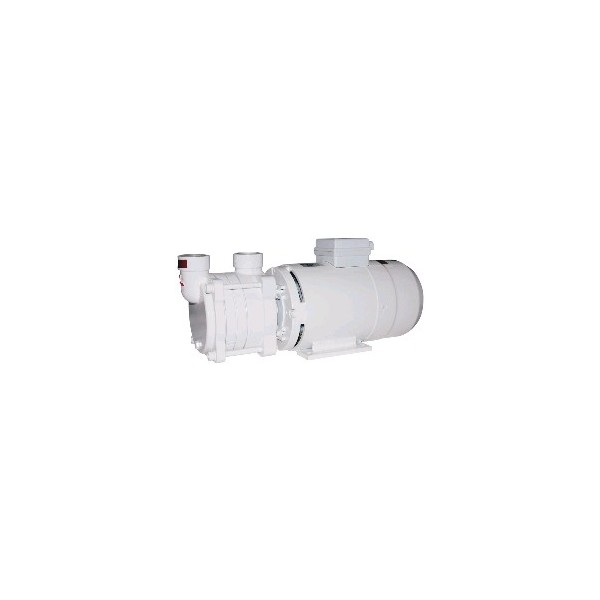

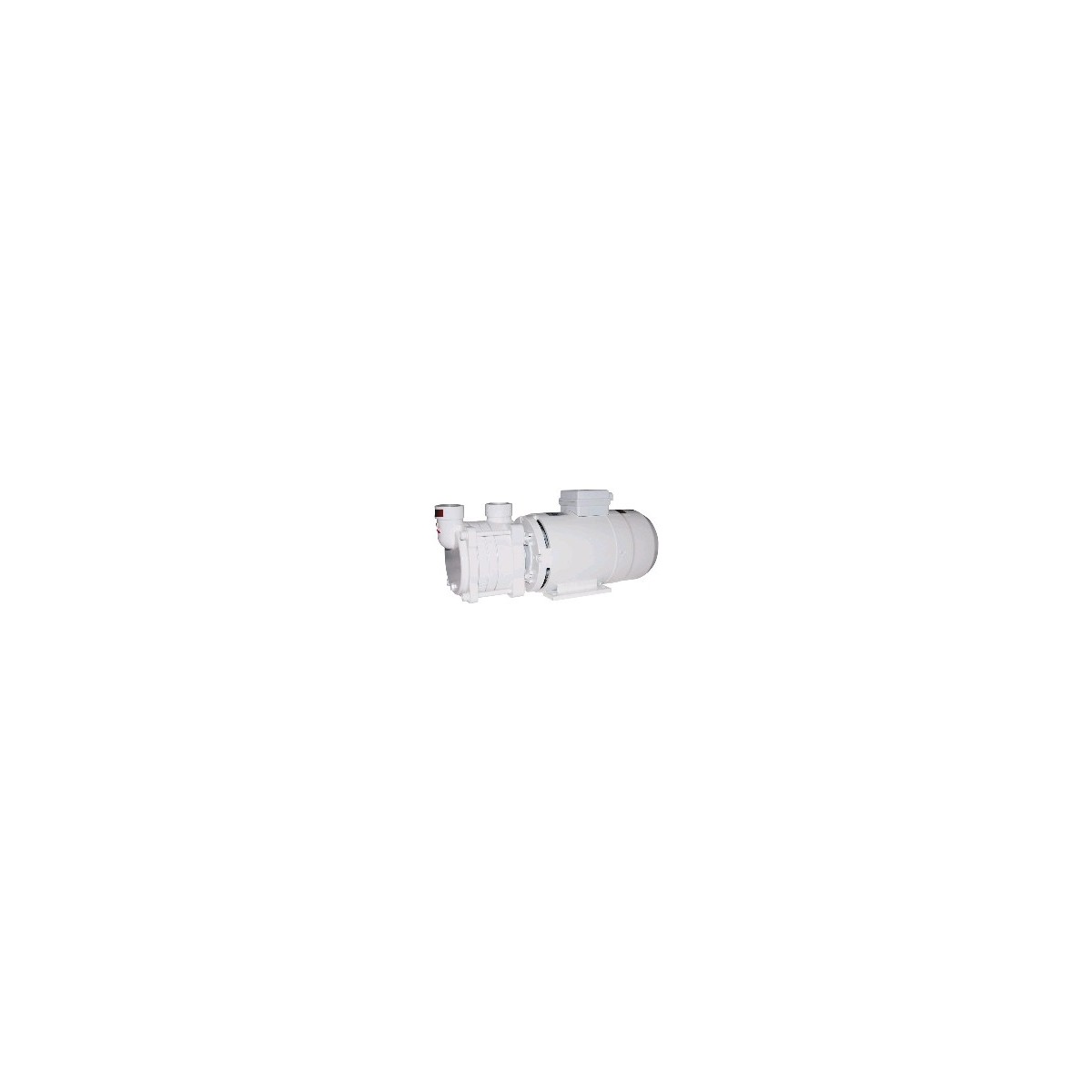

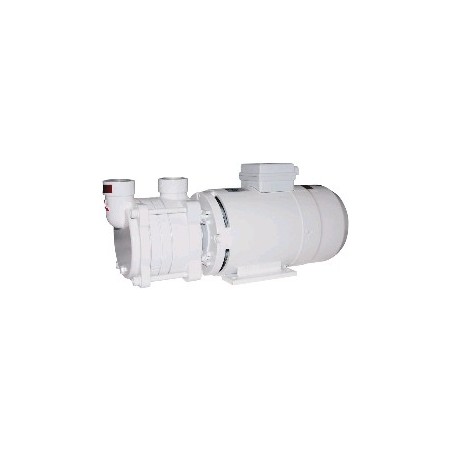

ACB331 24V electric pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: chain washing, fire fighting, diesel transfer, fresh water, seawater, highly aerated liquids.

• 24V - 46A
• Power rating: 0.9kW
• Max. flow: 150l/min at 0.3 bar
• Max. pressure: 2.5 bar at 70l/min
• Ø inlet/outlet: 1''1/4
• Dim. LxWxH: 445x190x190mm
• Weight 28kg

Pressures indicated are Hmt (total head) values converted to bar, for 10m=1bar. 60Hz motor on request.
