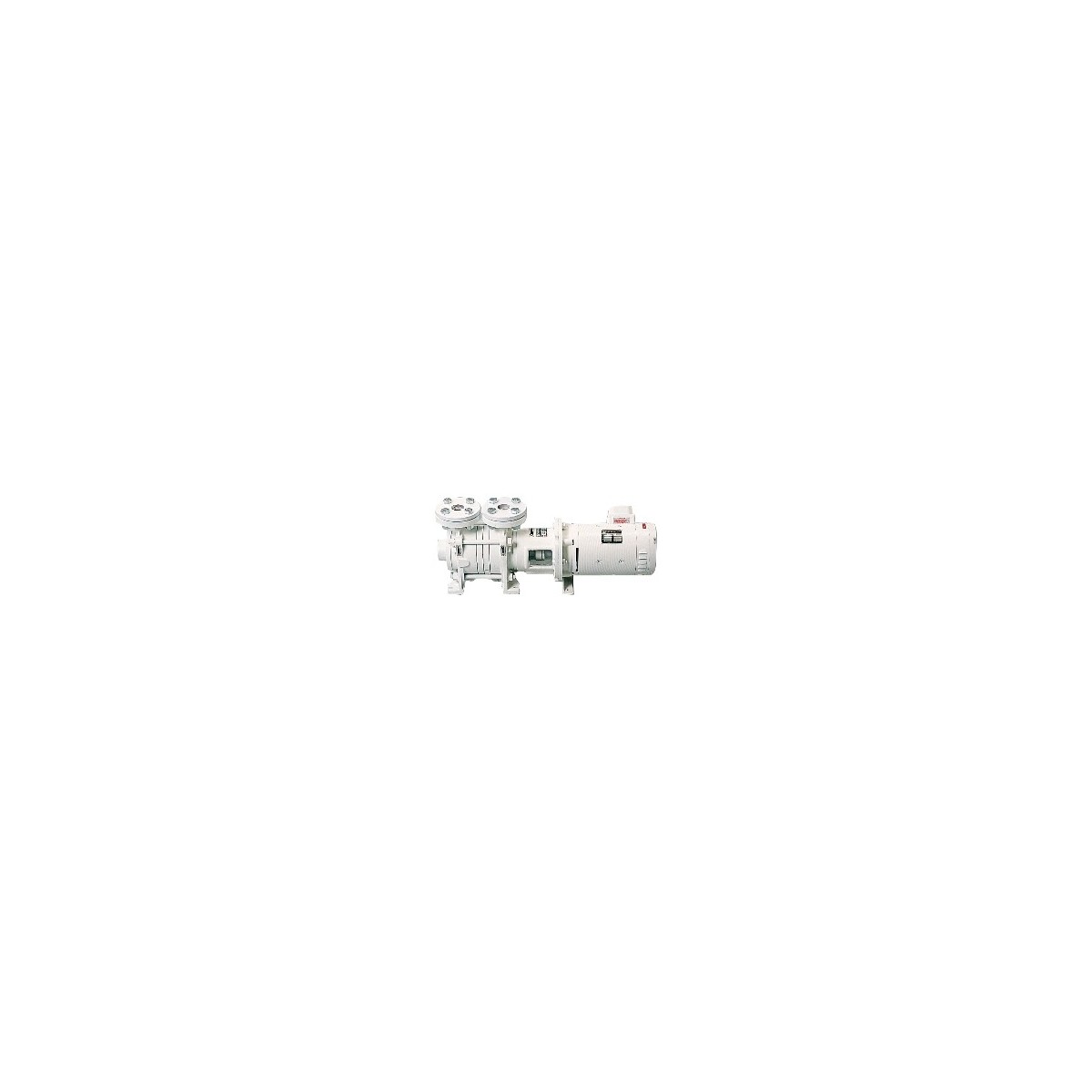

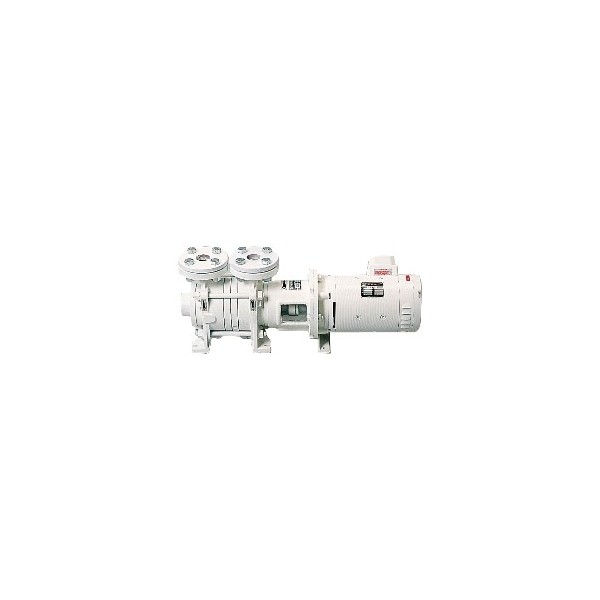

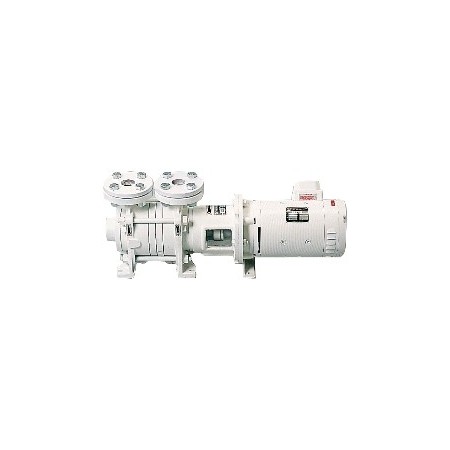

ACM311BT 230/400V ELECTRIC PUMP

Type: centrifugal. Construction: bronze pump body and impeller. Stainless steel shaft. Application: high-pressure pumps particularly suitable for fire-fighting applications.

• 230T/400T 1,1kW
• Max. flow: 125l/mn at 0.6b
• Max. pressure: 3b at 40l/min
• Dim. LxWxH: 680x250x257mm
• Weight: 50kg

Pressures indicated are Hmt values (Total Manometric Height) converted to bar, for 10m=1bar. 60Hz motor on request.
