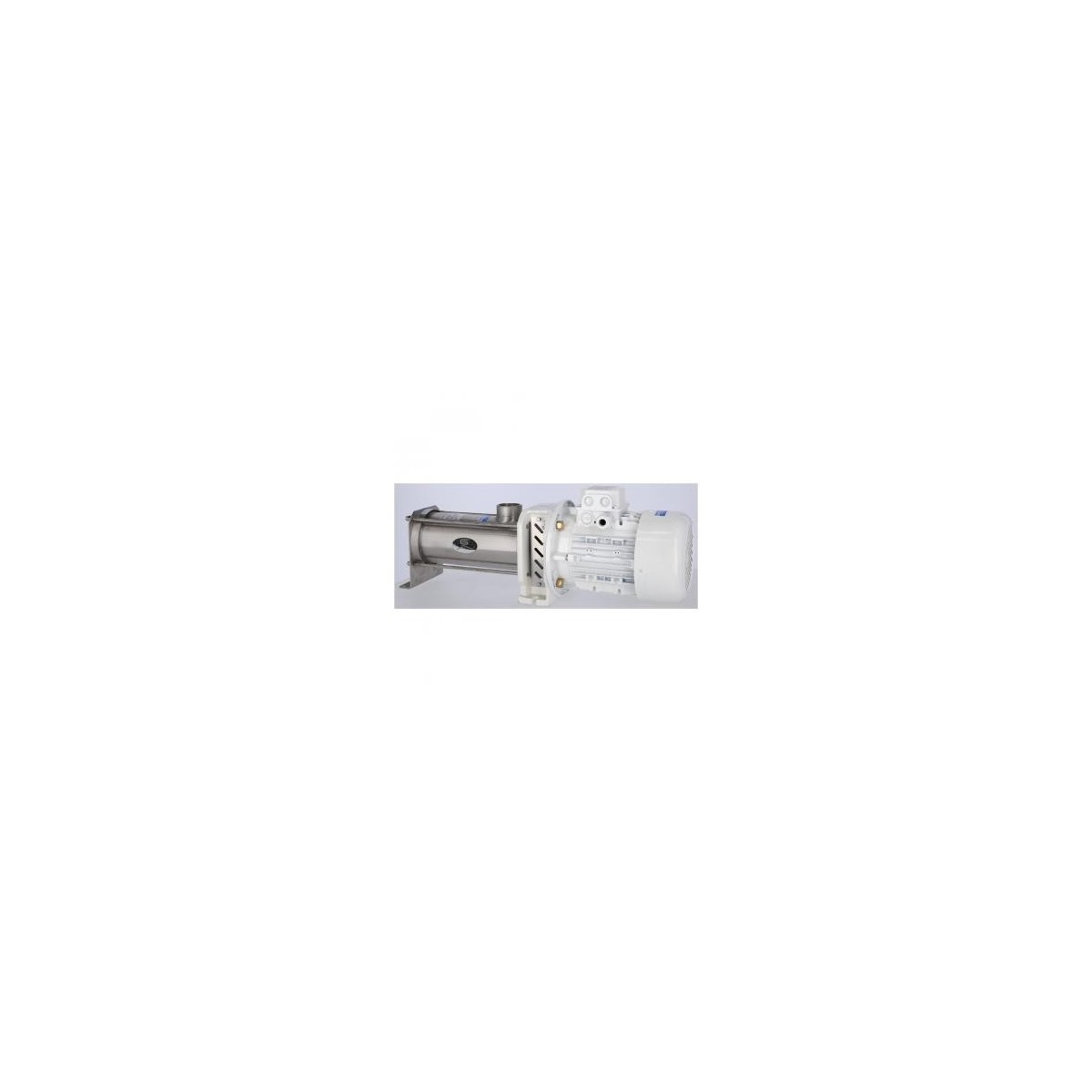

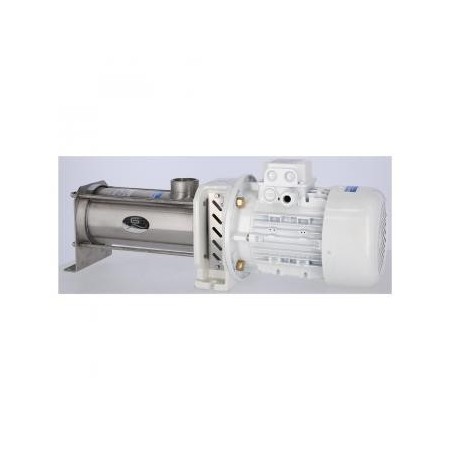

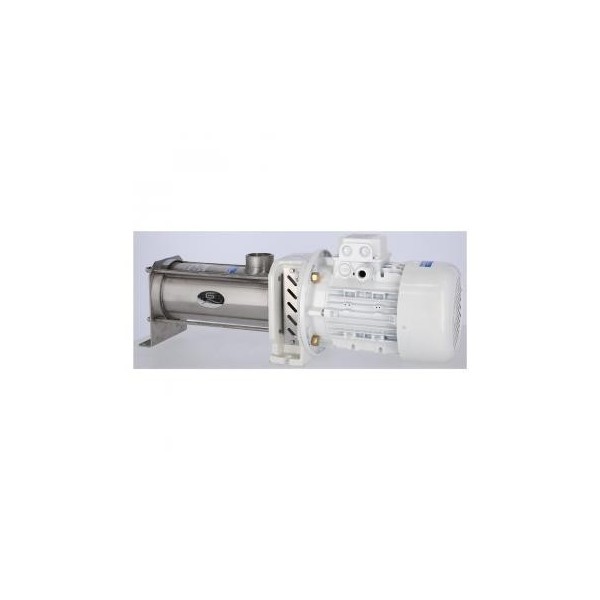

MVI60 230/400V black water pump

Type: screw pump. Self-priming.
Construction: stainless steel screw and elastomer stator.
Use: drainage pump, black water, waste water, water with suspended particles, viscous products, etc

• 230/400V - 1.1 kW
• Max. flow: 55l/mn at 1 bar
• Max. pressure: 3bar at 45l/min
• Ø Inlet / outlet : 1"1/2
• Dim. LxWxH: 580x200x223mm
• Weight: 24 kg

Pressures indicated are Hmt (total head) values converted to bar, for 10m=1bar. 60Hz motors on request.
