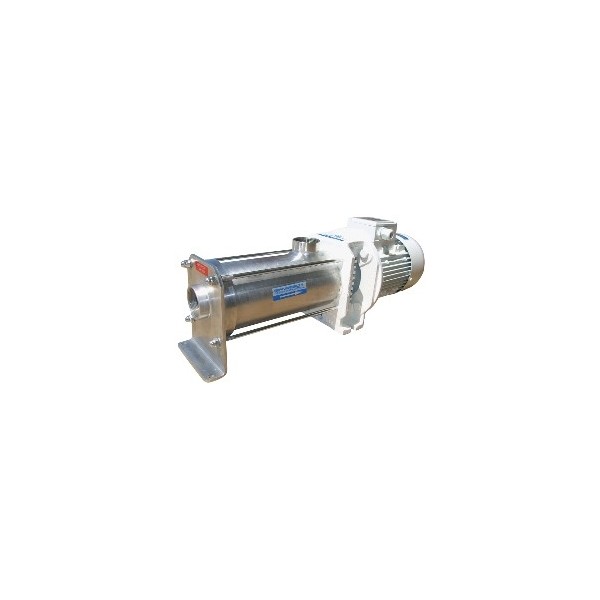

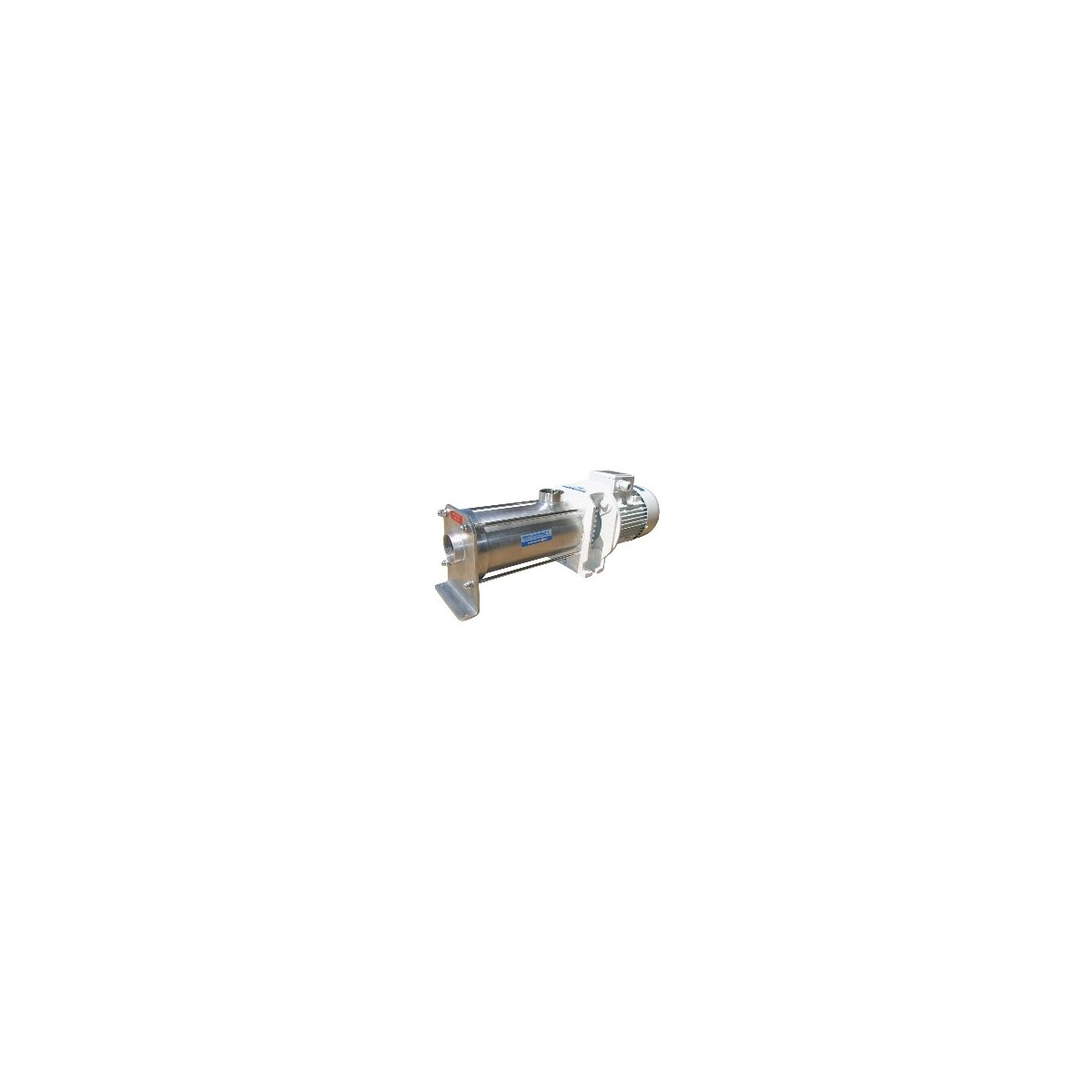

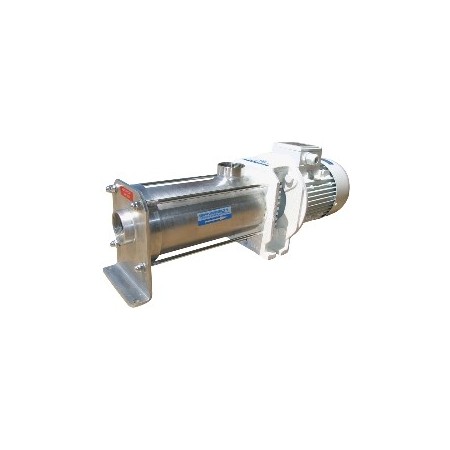

MVI60 230V black water pump

Type: screw pump. Self-priming. Construction: stainless steel screw and elastomer stator. Applications: Drainage pump, black water, waste water, water with suspended particles, viscous products, etc

• 230V mono - 1.1 kW
• Max. flow: 55l/mn at 1 bar
• Max. pressure: 3 bar at 45l/mn
• Ø Inlet / outlet : 1"1/2
• Dim. LxWxH: 580x200x223mm
• Weight: 24 kg

Pressures indicated are Hmt (total head) values converted to bar, for 10m=1bar. 60Hz motors on request.
