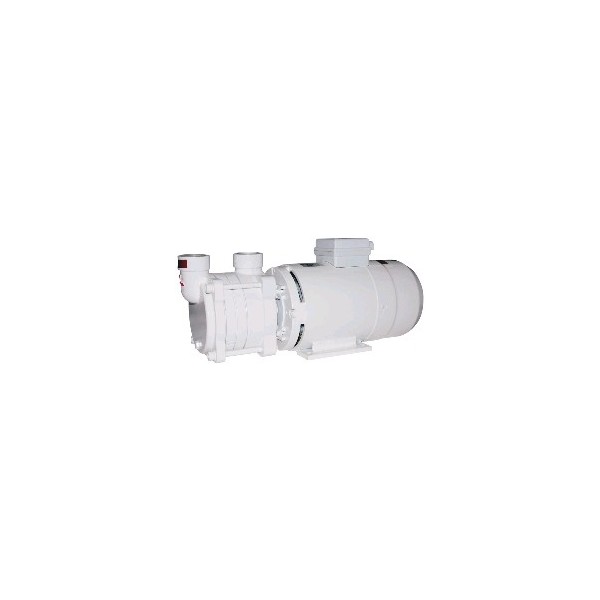

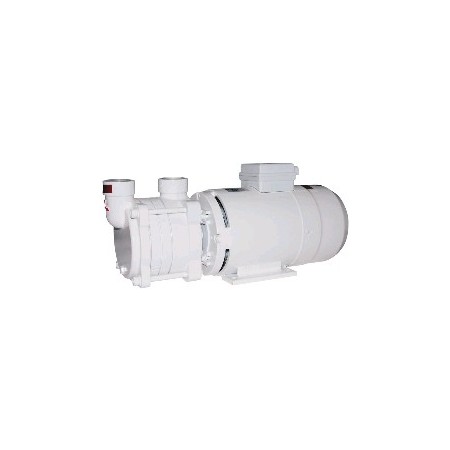

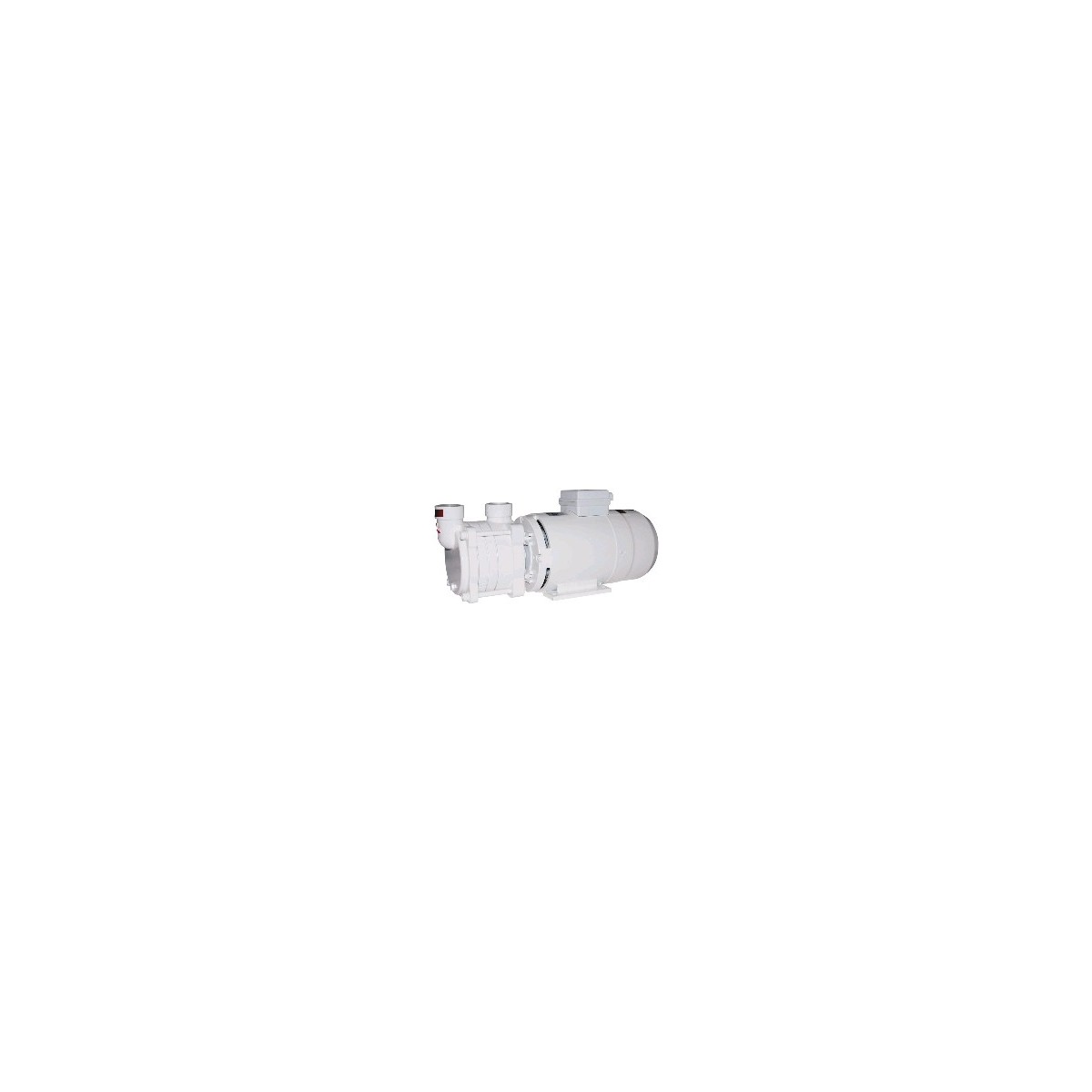

ACB431 230/400V electric pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: chain washing, fire fighting, diesel transfer, fresh water, seawater, highly aerated liquids.

• 230/400V three-phase 50Hz
• Power rating: 2.2kW
• Max. flow: 210l/min at 0.8bar
• Max. pressure: 3.5bar at 100l/min
• Ø inlet/outlet: 1''1/2
• Dim. LxWxH: 524x192x238mm
• Weight: 47kg

Pressures indicated are Hmt (total head) values converted to bar, for 10m=1bar. 60Hz motor on request.
