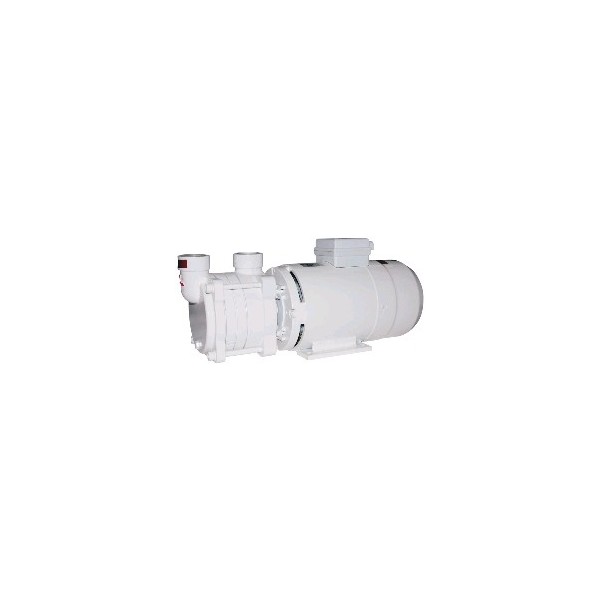

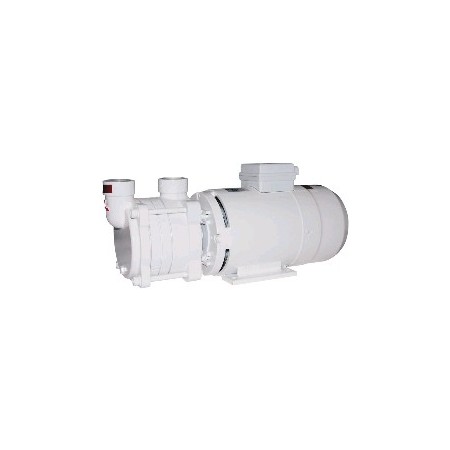

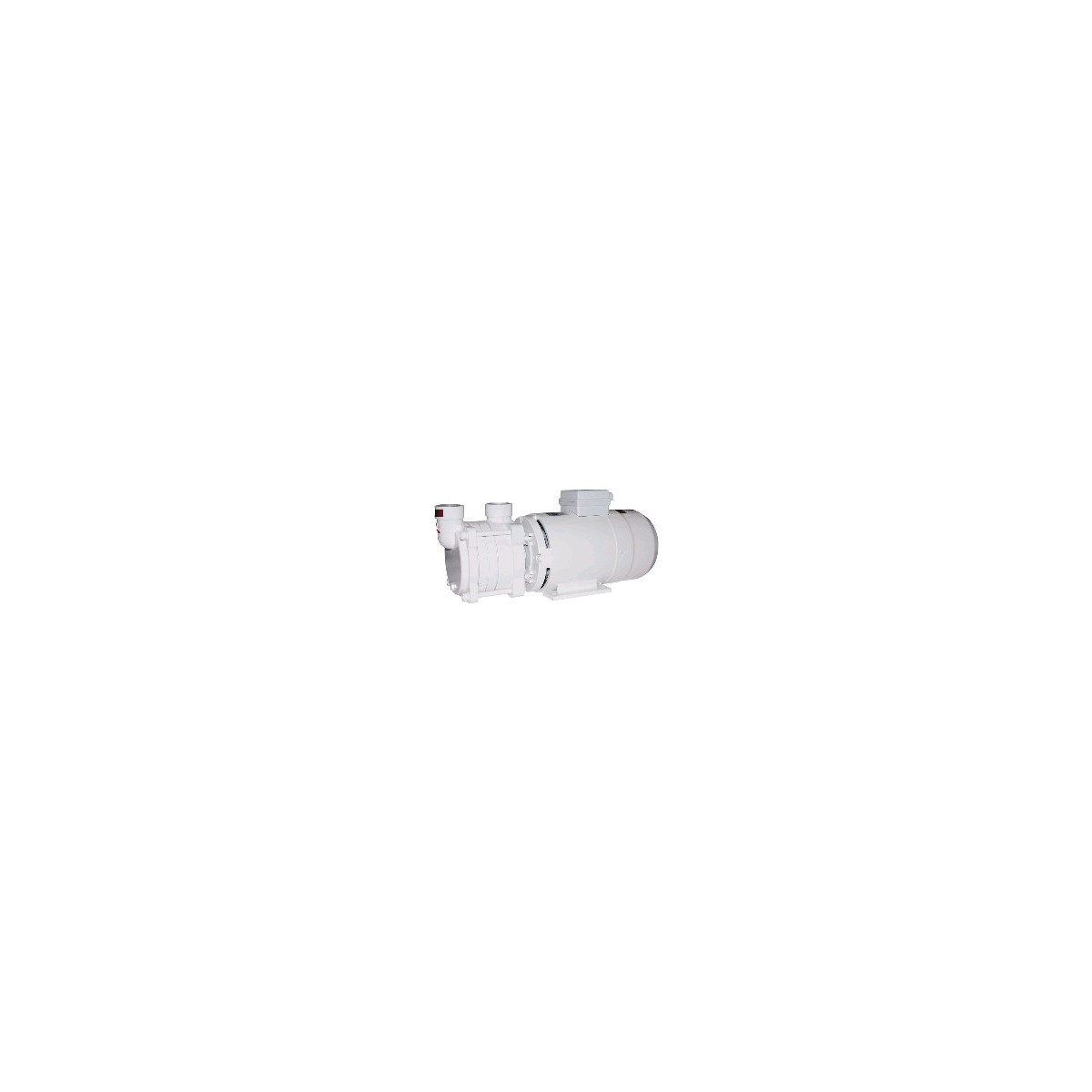

ACB431 24V electric pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: chain washing, fire fighting, diesel transfer, fresh water, seawater, highly aerated liquids.

• 24V - 1.5kW
• Max. flow: 230L/min at 0.3 bar
• Max. pressure: 3 bar at 100L/min
• Ø inlet/outlet: 1''1/2
• Dim. LxWxH: 545x192x238mm
• Weight 50kg

Pressures indicated are Hmt (total head) values converted to bar, for 10m=1bar. 60Hz motor on request.
