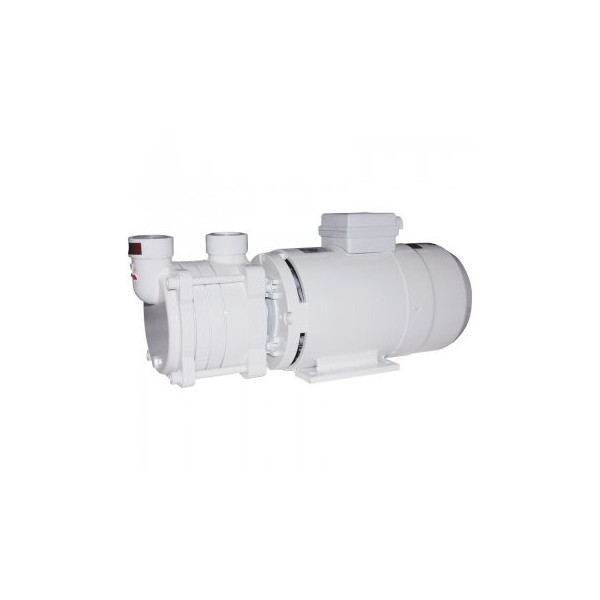

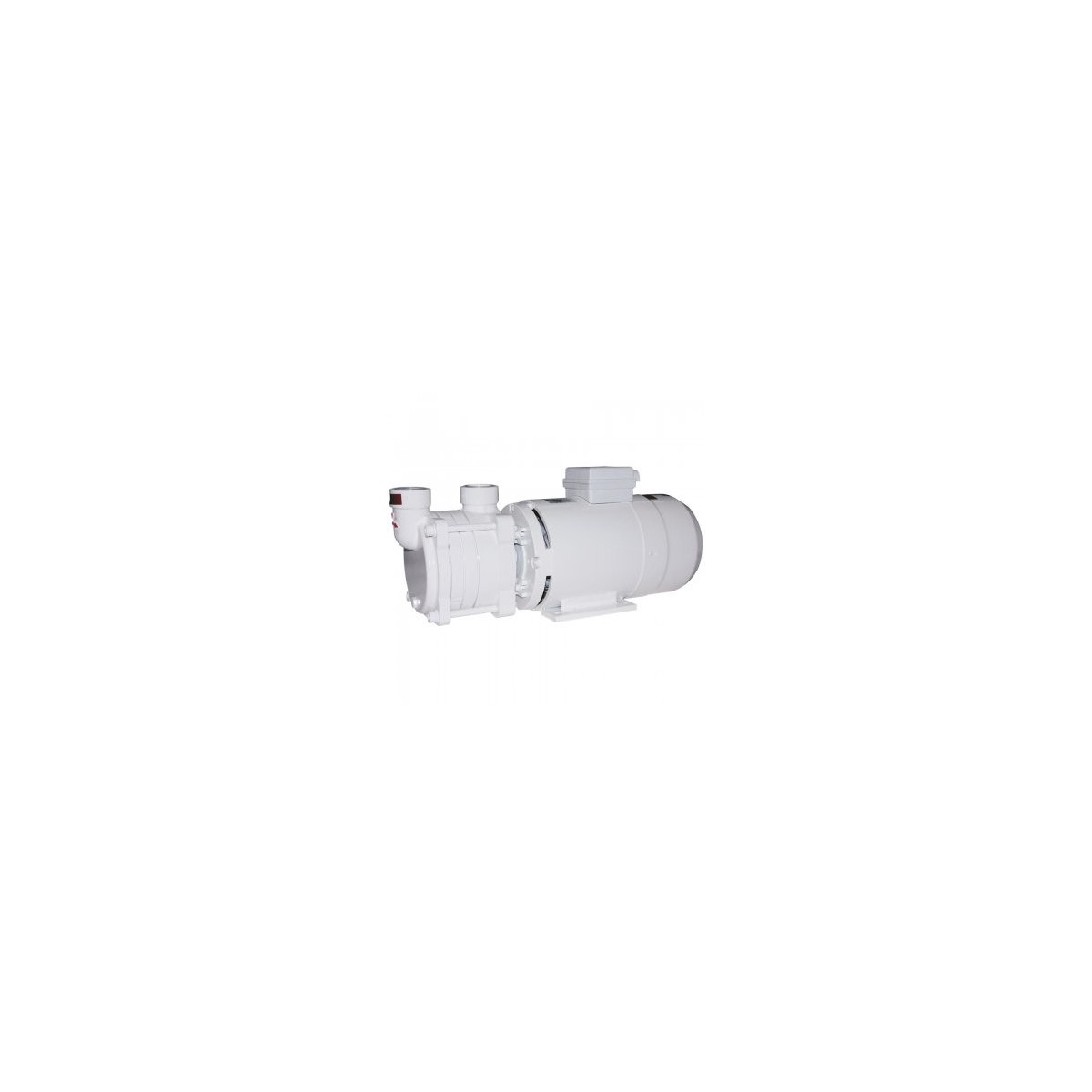

ACB332 24V electric pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: chain washing, fire fighting, diesel transfer, fresh water, sea water, highly aerated liquids.

• 24V
• Power rating: 1.5kW
• Max. flow: 130l/min at 0.7 bar
• Max. pressure: 4.5 bar at 40l/min
• Ø inlet/outlet: 1''1/4
• Dim. LxWxH: 550x200x270mm
• Weight: 45kg

Pressures indicated are Hmt (total head) values converted to bar, for 10m=1bar. 60Hz motor on request.
