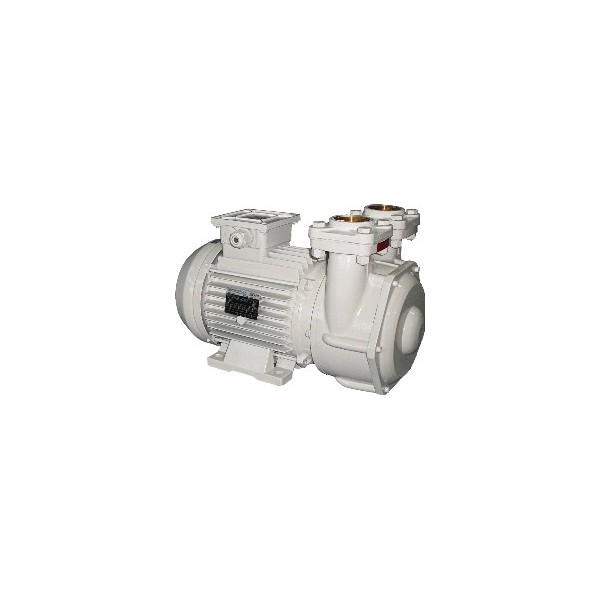

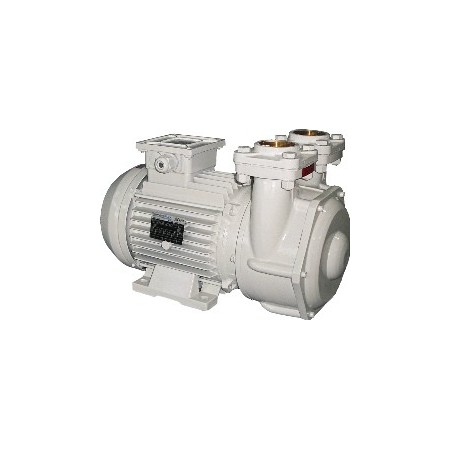

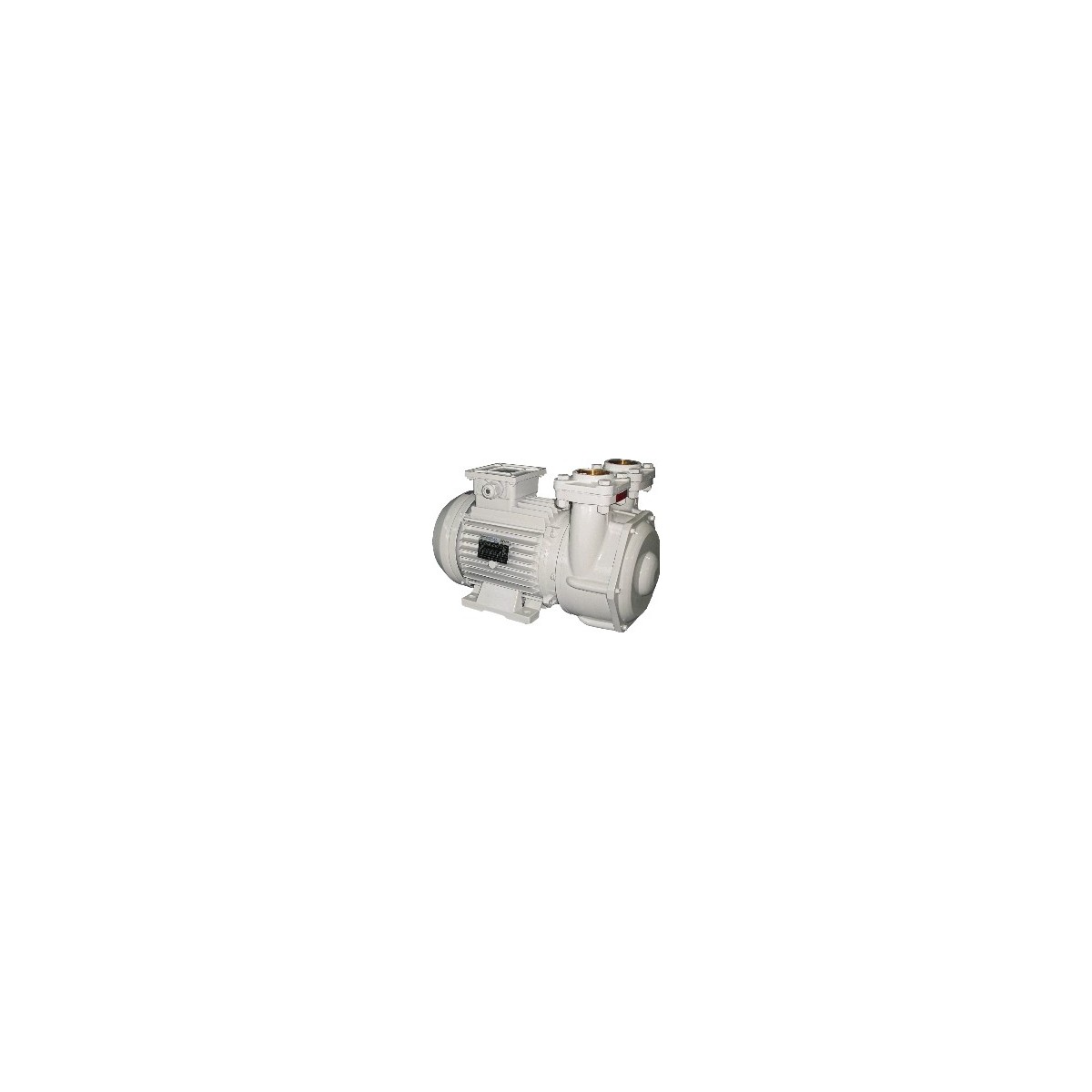

ACB531 230/400V electric pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: chain washing, fire fighting, diesel transfer, fresh water, seawater, highly aerated liquids.

• Voltage: 230/400V
• Power: 4kW
• Max. flow: 400l/min at 0.5bar
• Max. pressure: 3.4bar at 100l/min
• Ø inlet/outlet: 2"
• Dim. LxWxH: 500x230x310mm
• Weight 67kg

Pressures indicated are Hmt (total head) values converted to bar, for 10m=1bar. 60Hz motor on request.
