The Italian brand Quick has created a range of sturdy, waterproof capstans with the Tumbler series.
The Tumbler TB3 P 700W - 12V is designed for boats from 7 to 10 m in length.
Read more FeaturesData sheet
- Voltage
- 12V, 24V
- Power
- 700 W, 1000 W
- Doll
- With doll

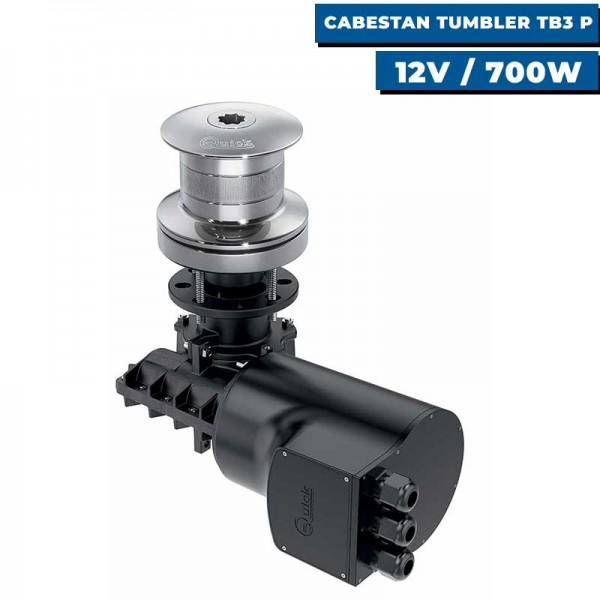

QUICK - TUMBLER CAPSTAN TB3 P 700W - 12V
The Tumbler TB3 P 700W - 12V capstan offers lifting and pulling power on boats for anchoring or mooring .
It features an AISI 316 stainless steel base and headstock, offering high resistance to marine corrosion.
Unlike a windlass, which is specifically geared to managing the main anchor, the capstan offers greater versatility thanks to its ability to handle other types of rope and loads .
The capstan also takes up less deck space thanks to its vertical cylinder design, unlike a windlass
TUMBLER SERIES: ITALIAN REFINEMENTTumbler Series capstans can be used with ropes up to 130 mm in diameter. The motor is fitted with an IP67 waterproof housing, making it perfectly suited to a marine environment. The gearbox is made of technopolymer, reducing weight while maintaining durability and resistance to the elements. Full assembly instructions can be found in the attached PDF documentation. |
CAPSTAN TB3 P 700W - 12V TECHNICAL SPECIFICATIONS
TB3 P 12V - 700W |
TB3 P 24V - 700W |
TB3 P 12V - 1000W |
TB3 P 24V - 1000W | |
---|---|---|---|---|
Headstock | ✔️ | |||
Motor power | 700 W | 1000 W | ||
Rope diameter | Ø 130 mm | |||
Voltage | 12 V | 24 V | 12 V | 24 V |
For boats up to | 7 to 10 m | 10 to 13 m | ||
Maximum pull | 850 kg | 1000 kg | ||
Maximum working load | 250 kg | 300 kg | 370 kg | 450 kg |
Working load | 80 kg | 100 kg | 120 kg | 150 kg |
Normal current draw | 90 A | 55 A | 140 A | 80 A |
Maximum lifting speed | 21 m/min | 22 m/min | 25 m/min | 27 m/min |
Normal lifting speed | 12 m/min | 14 m/min | 16.5 m/min | 17.5 m/min |
Circuit breaker (not supplied) | 50 A | 40 A | 80 A | 50 A |
Bridge thickness | 25-50 mm | |||
Weight | 14.1 kg | 15.4 kg |
