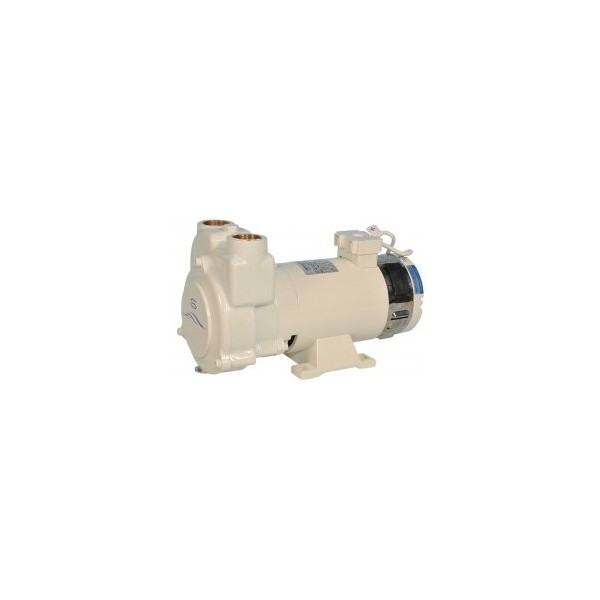

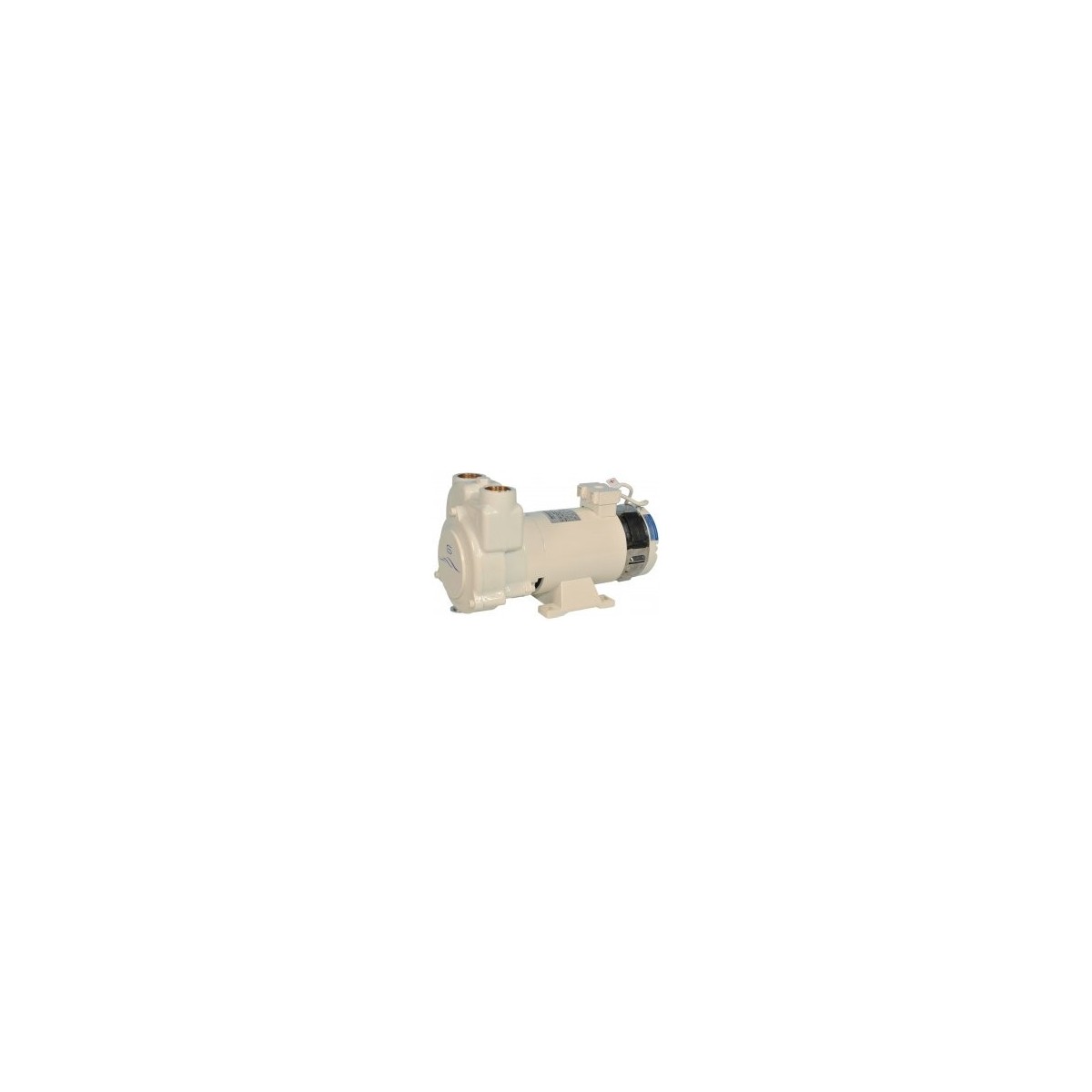

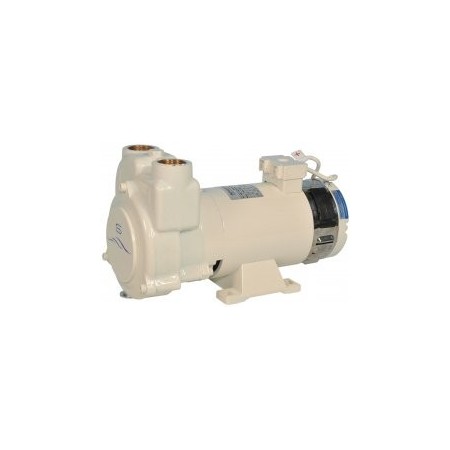

CP26/A1 24V water/diesel fuel pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: transfer of diesel fuel, fresh water, seawater, gray water (kitchen/shower), bilge.
Reversible pumps.

• 24V - 16A - 0.2kW
• Max. flow: 60l/mn at 0.4 bar
• Max. pressure: 1.2 bar at 20l/mn
• Inlet/outlet Ø: 1"
• Dim. LxWxH: 220x140x160mm
• Weight 9kg

Pressures indicated are Hmt values (total head) converted to bar, for 10m=1bar. 60Hz motors on request.
