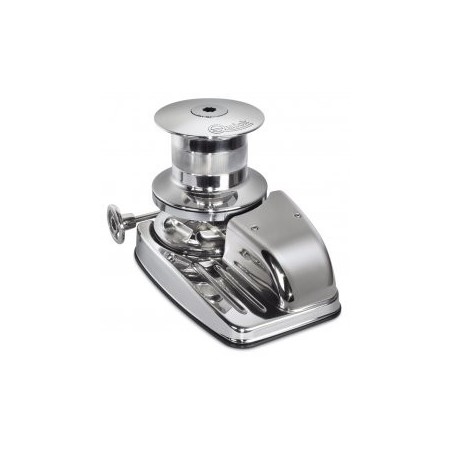

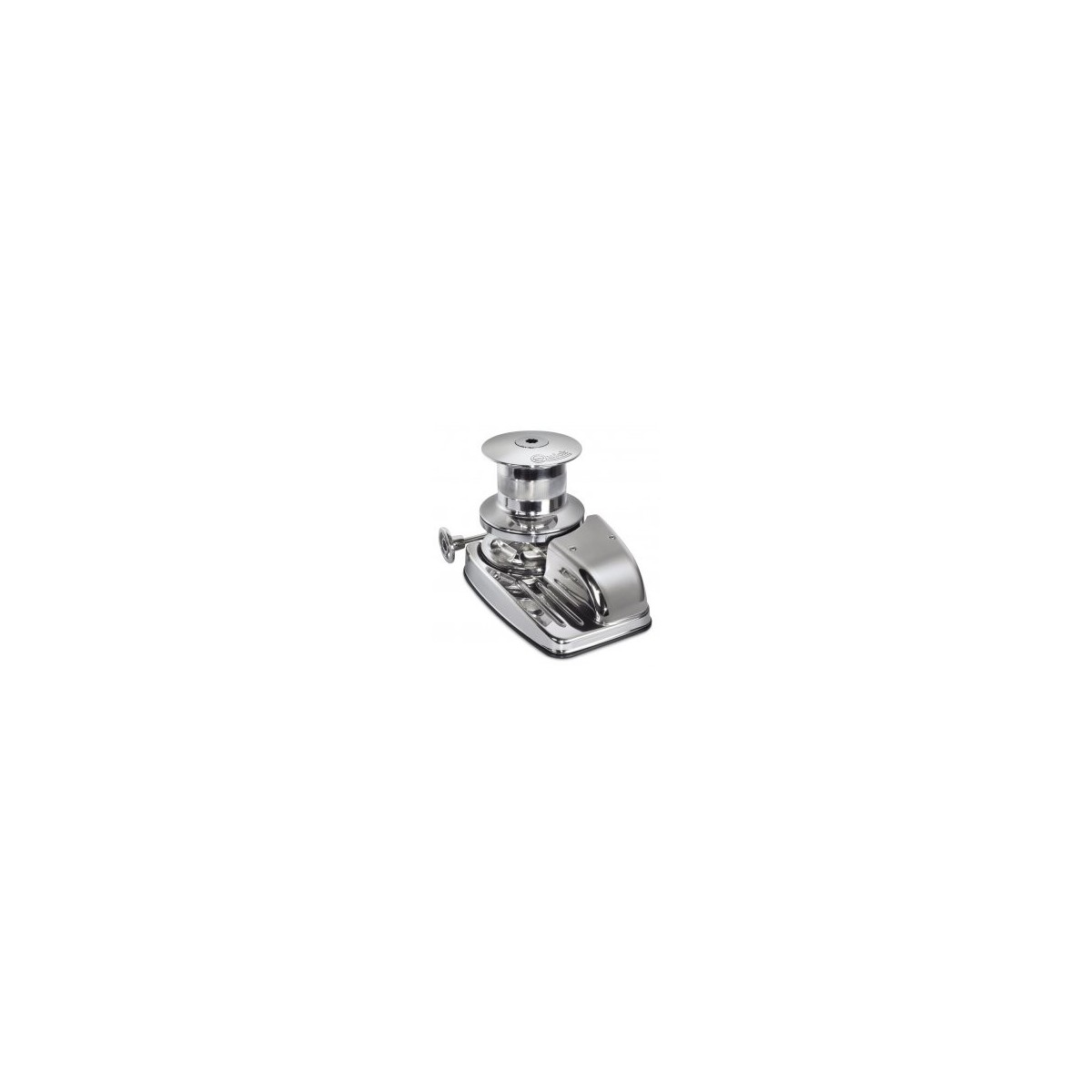

Duke 24V 3500W vertical windlass with headstock

Vessels from 18 to 32m
Vertical windlass.

Base in AISI 316 stainless steel and hard-anodized aluminum.
Headstock and sprocket cover in AISI 316 stainless steel.
Available in right or left hawse version.
Mixed sprockets (chain and rope) for Ø 12, 13, 14 and 16mm chains.
With or without headstock.
Use of headstock only by band brake.
Supplied with relay box and sprocket.

Please specify sprocket size when ordering:
QB112 12/13mm chain
QB114 14mm chain
QB116 16mm chain

Bridge thickness *: 30-80mm

* Longer shafts and studs available on request
