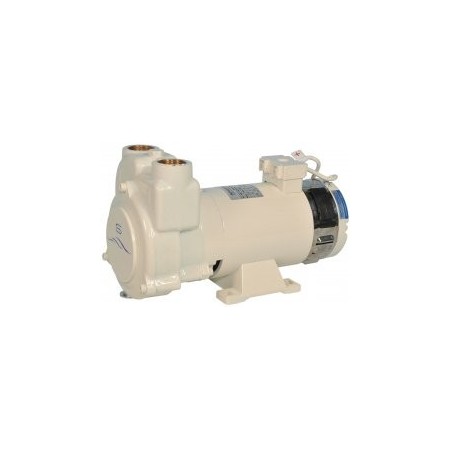

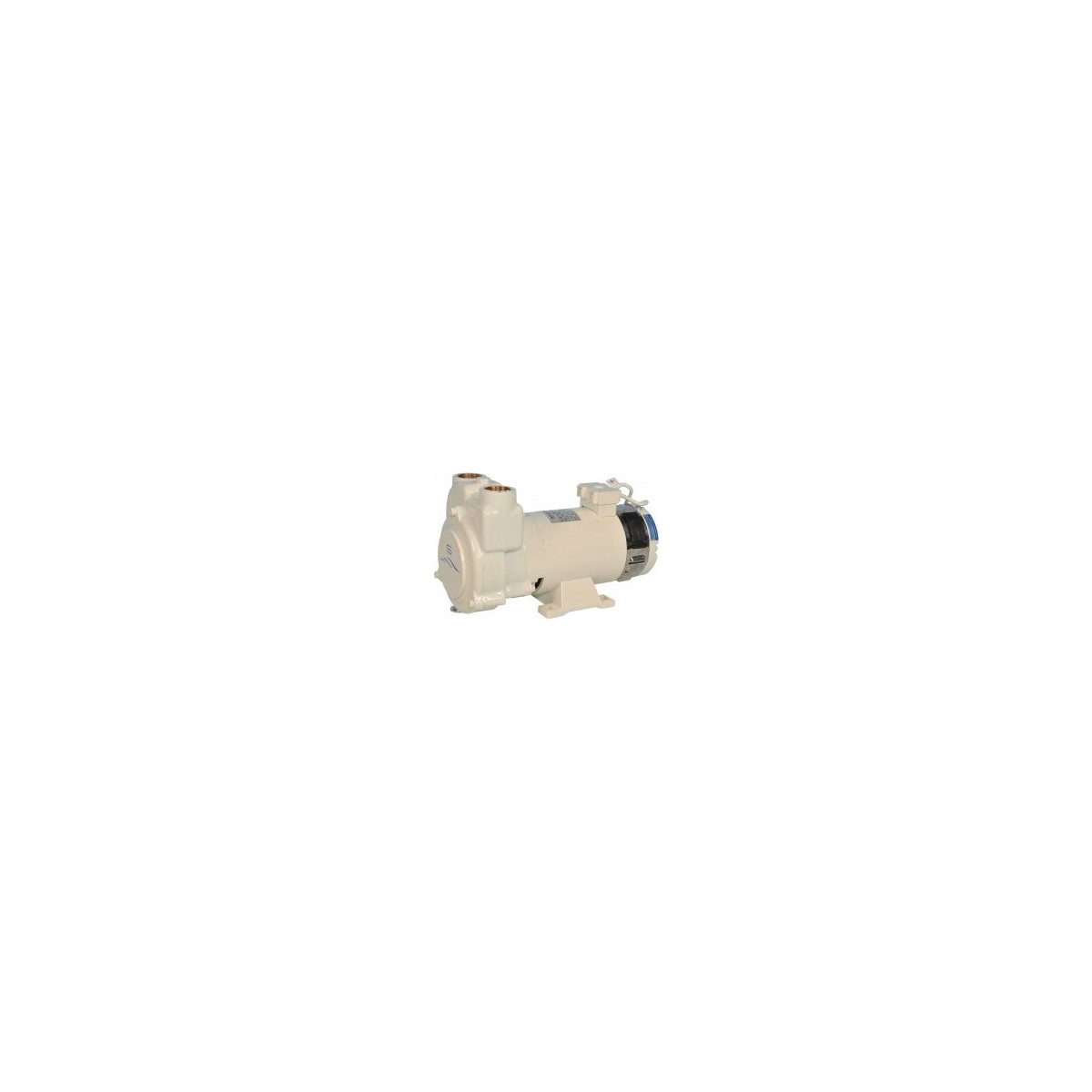

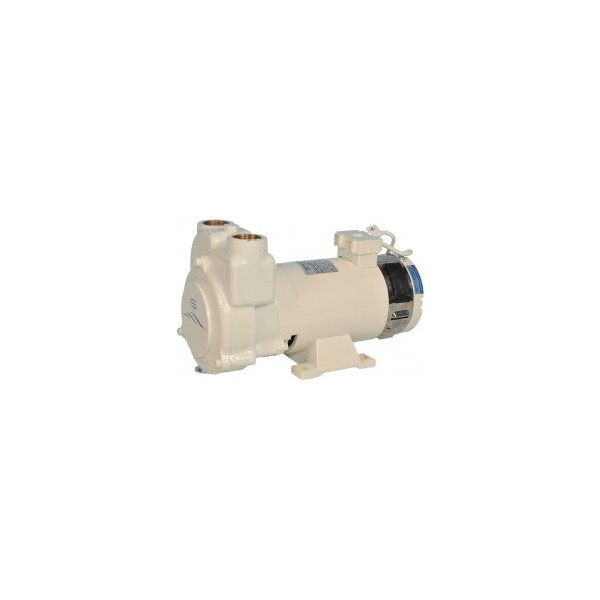

CP26/A2 12V water/diesel pump

Type: liquid ring centrifugal. Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: diesel transfer, fresh water, seawater, gray water, (kitchen/shower), bilge.
Reversible pumps.

• 12V - 36A - 0.37kW
• Max. flow: 75l/mn at 0.2 bar
• Max. pressure: 1.6 bar at 10l/mn
• Inlet/outlet Ø: 1"
• Dim. LxWxH: 300x140x160mm
• Weight 10kg

Pressures indicated are Hmt values (total head) converted to bar, for 10m=1bar. 60Hz motors on request.
