G215

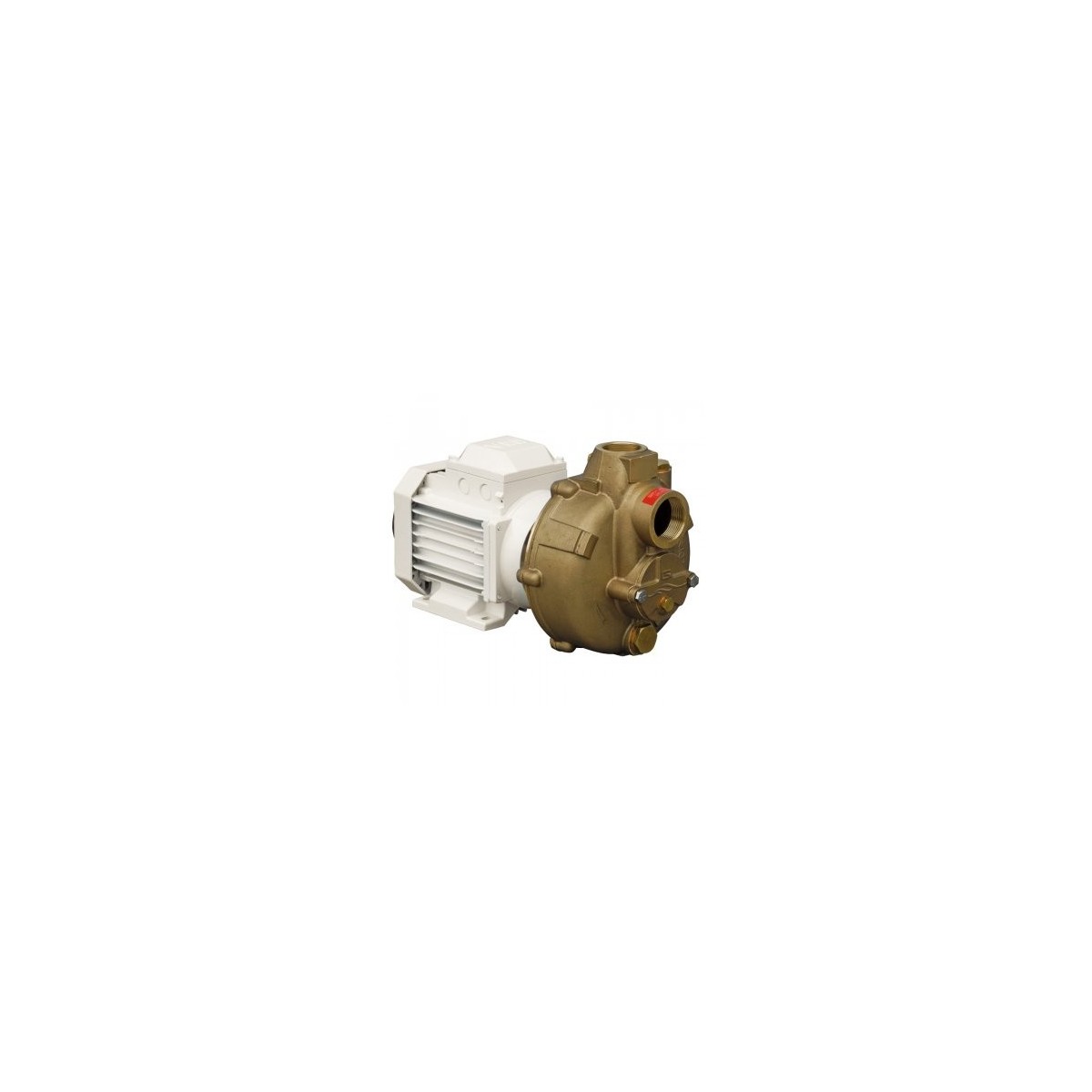

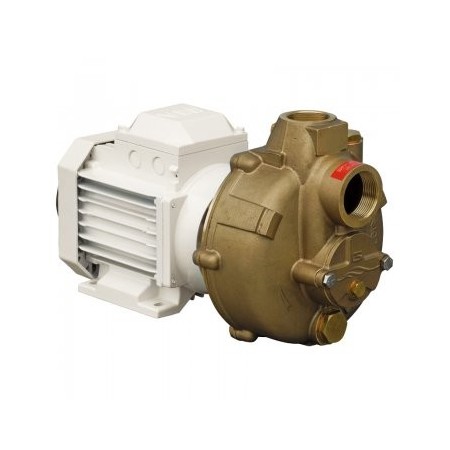

The BMA-M is a self-priming, centrifugal pump with dereelerator.
The centrifugal impeller combined with the dereelerator makes this pump ideal for fluids containing fibrous materials.
The fragmentation of materials into small particles and the high operating pressure make it possible to use small-diameter pipes.
Manufactured from high-quality bronze and AISI 630 stainless steel, the BMA-M is a very robust pump offering excellent resistance to wear and corrosion.
This is truly the ideal pump for grey water/black water applications that may contain suspended solids.
- Model: BMA-M 32 single-phase
- Voltage: 230V
- Installed power: 1.1kW
- Suction Ø: 1-1/2
- Discharge Ø : 1-1/4
- Dimensions LxWxH: 410x215x230mm
- Weight: 23kg
- Motor: IEC CA IP55, class F
- Pump body: bronze
- Volute casing : bronze
- Centrifugal impeller : bronze
- Delicator: AISI 630 stainless steel
- Single mechanical seal: silicon carbide, ceramic, carbon, stainless steel
| Freq. | Speed | Max. flow | Max. pressure |
|---|---|---|---|
| 50Hz | 2850 rpm | 170 L/min at 0.6 bar | 1.8 bar at 20 L/min |
| 60Hz | 3450 rpm | 185 L/min at 0.6 bar | 2.4 bar at 20 L/min |
