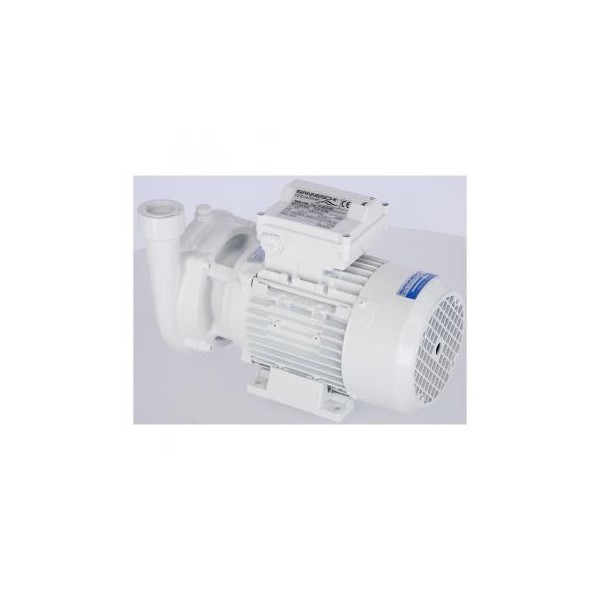

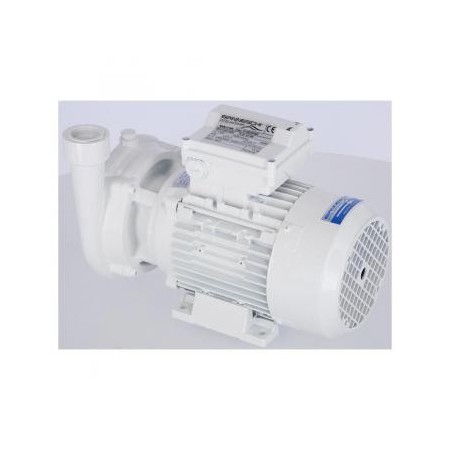

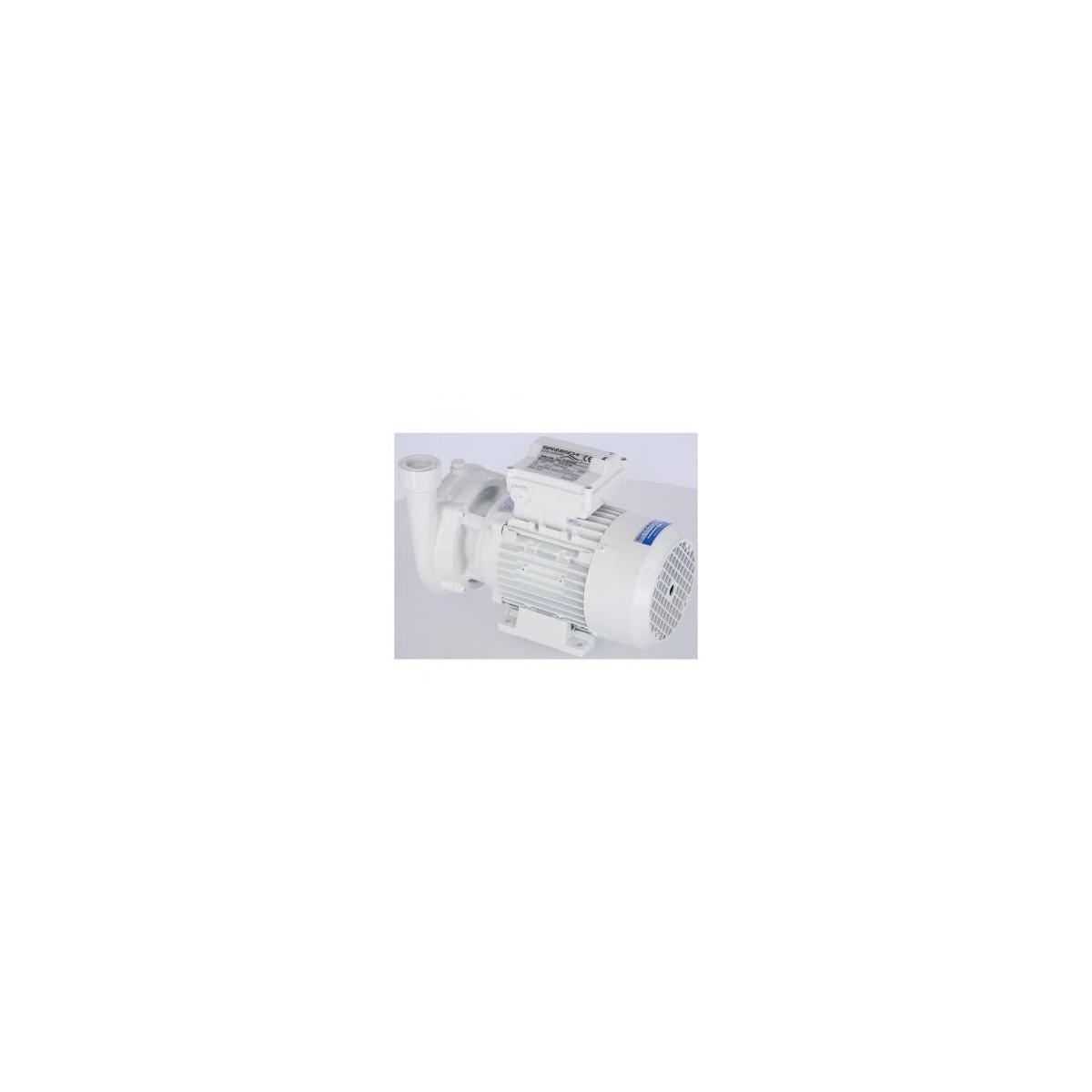

CB22-95 230V electric pump

Types: non-self-priming centrifugal.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: distribution of clean water (fresh or sea water), even slightly contaminated water, air-conditioning systems. Continuous duty in AC version.

• Model: CB22-95
• Voltage : 230V
• Power rating: 0.37kW
• Max. flow: 100L/min at 0.6 bar
• Max. pressure: 1.3 bar at 16 L/mn
• Inlet/outlet Ø: 1
• Dim. LxWxH: 300x160x161mm
• Weight : 13kg

Pressures indicated are Hmt (total head) values converted to bar, for 10m=1bar. 60Hz motors on request.
