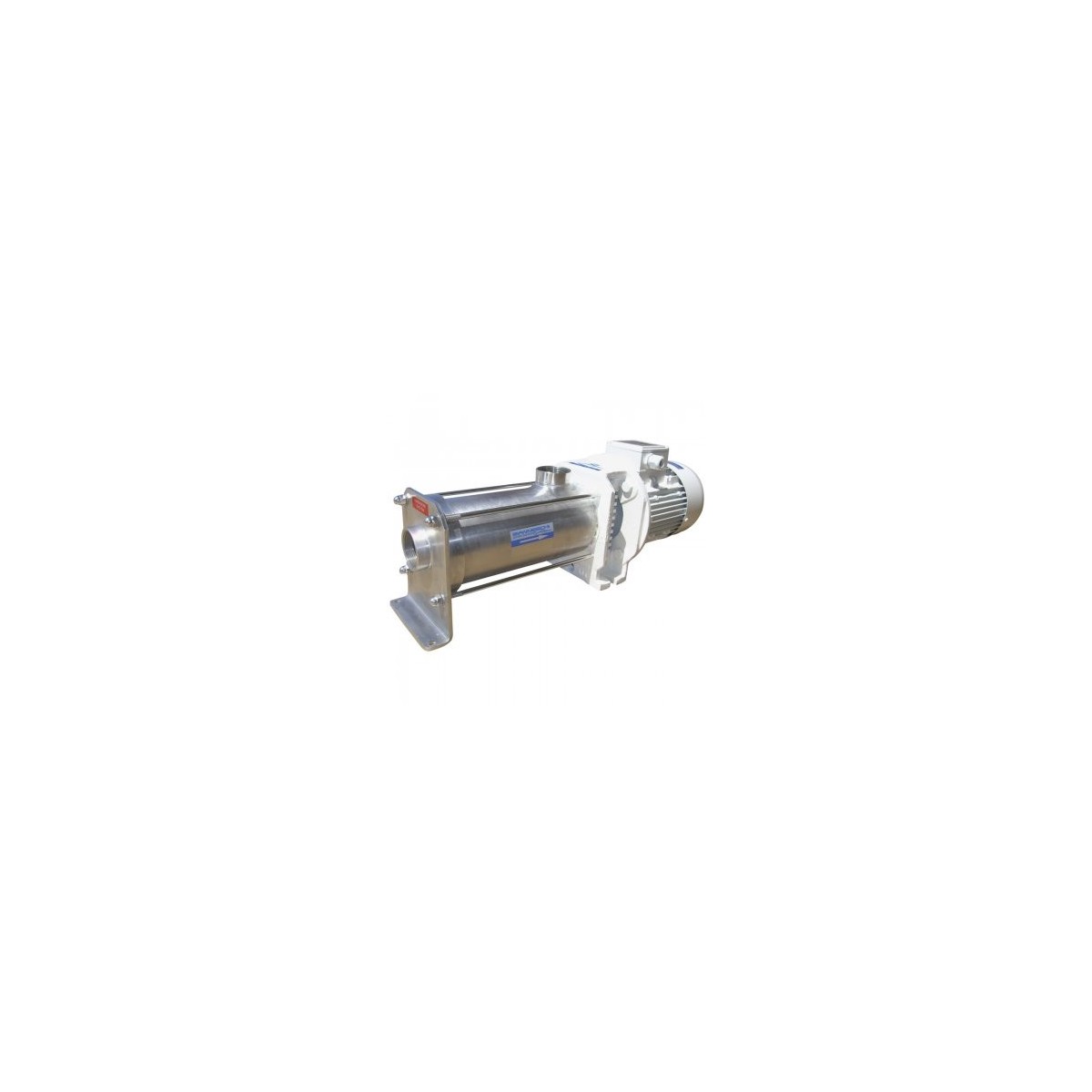

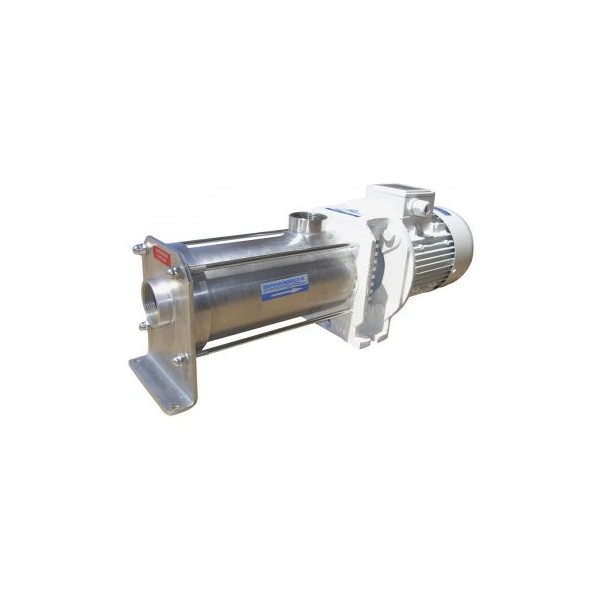

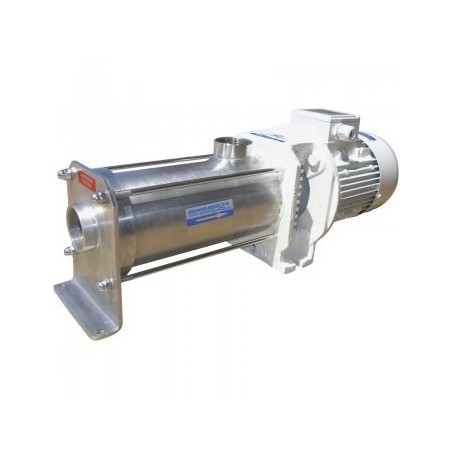

MVI80 230/400V black water pump

Type: screw pump. Self-priming.
Construction: stainless steel screw and elastomer stator.
Use: drainage pump, black water, waste water, water with suspended particles, viscous products, etc

• 230/400V - 1.5kW
• Max. flow: 98l/mn at 1bar
• Max. pressure: 3 bar at 64l/mn
• Inlet/outlet Ø: 2"
• Dim. LxWxH: 660x200x240mm
• Weight: 30kg

Pressures indicated are Hmt values (total head) converted to bar, for 10m=1bar. 60Hz motors on request.
