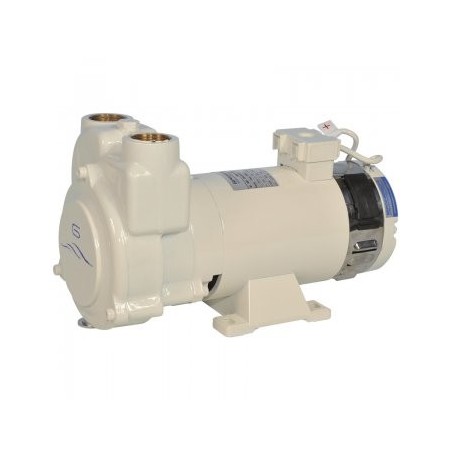

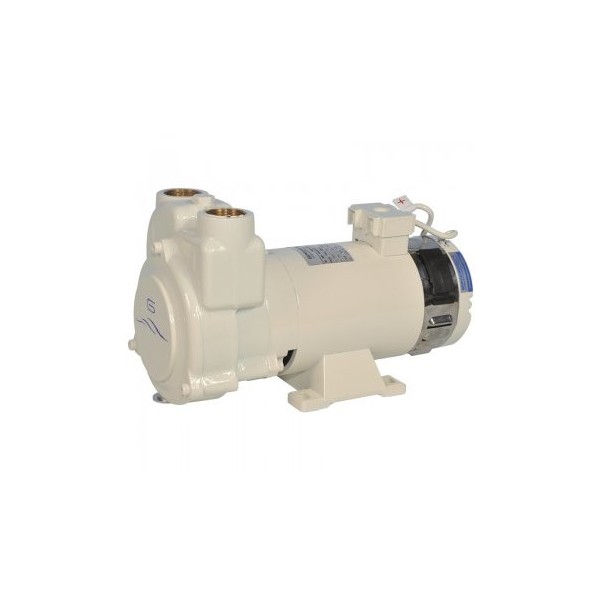

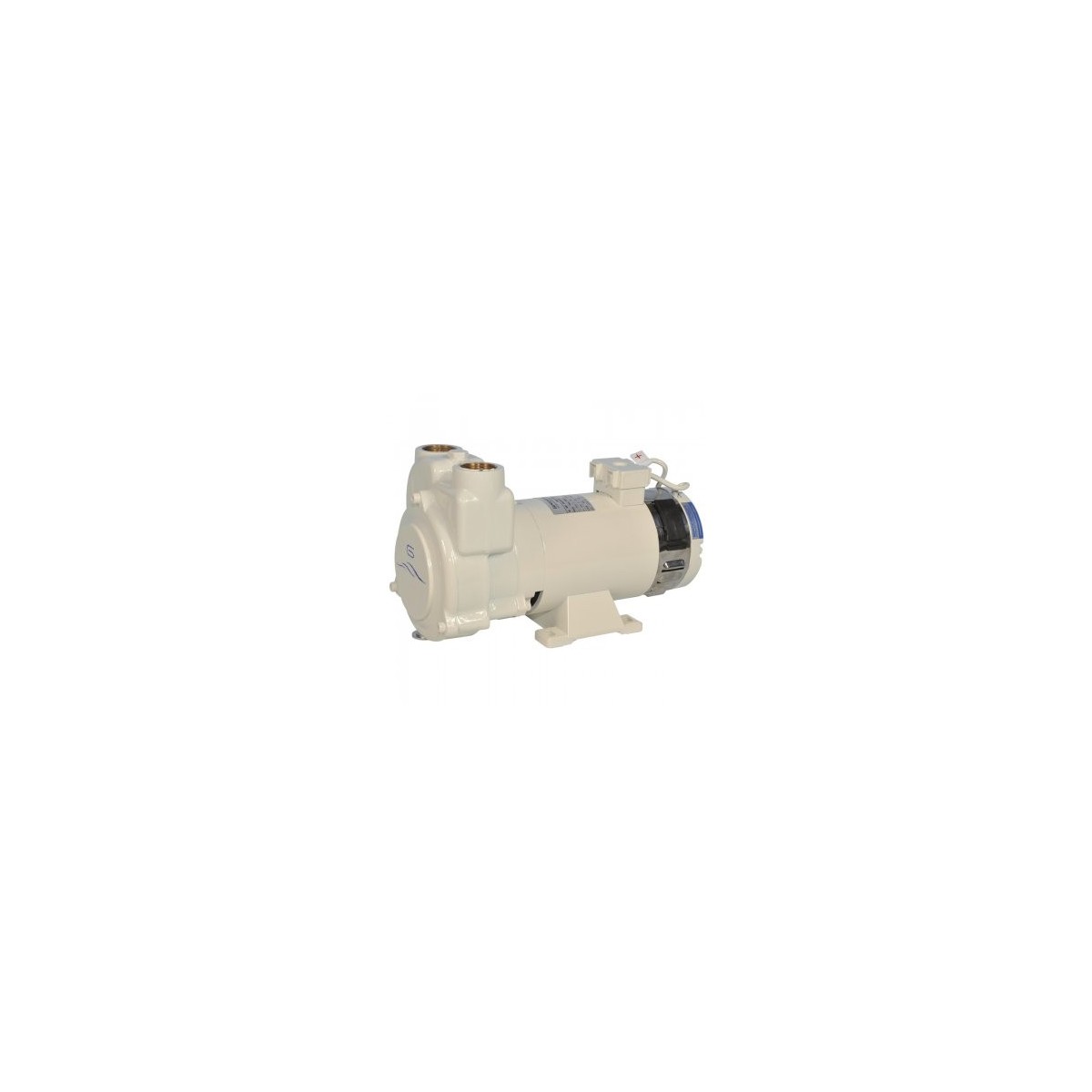

CP40G 24V water/diesel fuel pump

Type: liquid ring centrifugal.
Self-priming.
Construction: bronze pump body and impeller. Stainless steel shaft.
Use: diesel transfer, fresh water, seawater, gray water, (kitchen/shower), bilge.
Reversible pumps.

• 24V - 45A- 0.9kW
• Max. flow: 145l/mn at 0.3 bar
• Max. pressure: 2.1 bar at 25l/mn
• Ø inlet/outlet: 1"1/4
• Dim. LxWxH: 365x175x215mm
• Weight 25kg

Pressures indicated are Hmt values (total head) converted to bar, for 10m=1bar. 60Hz motors on request.
