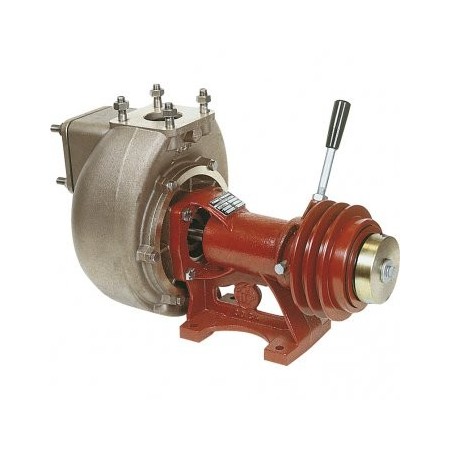

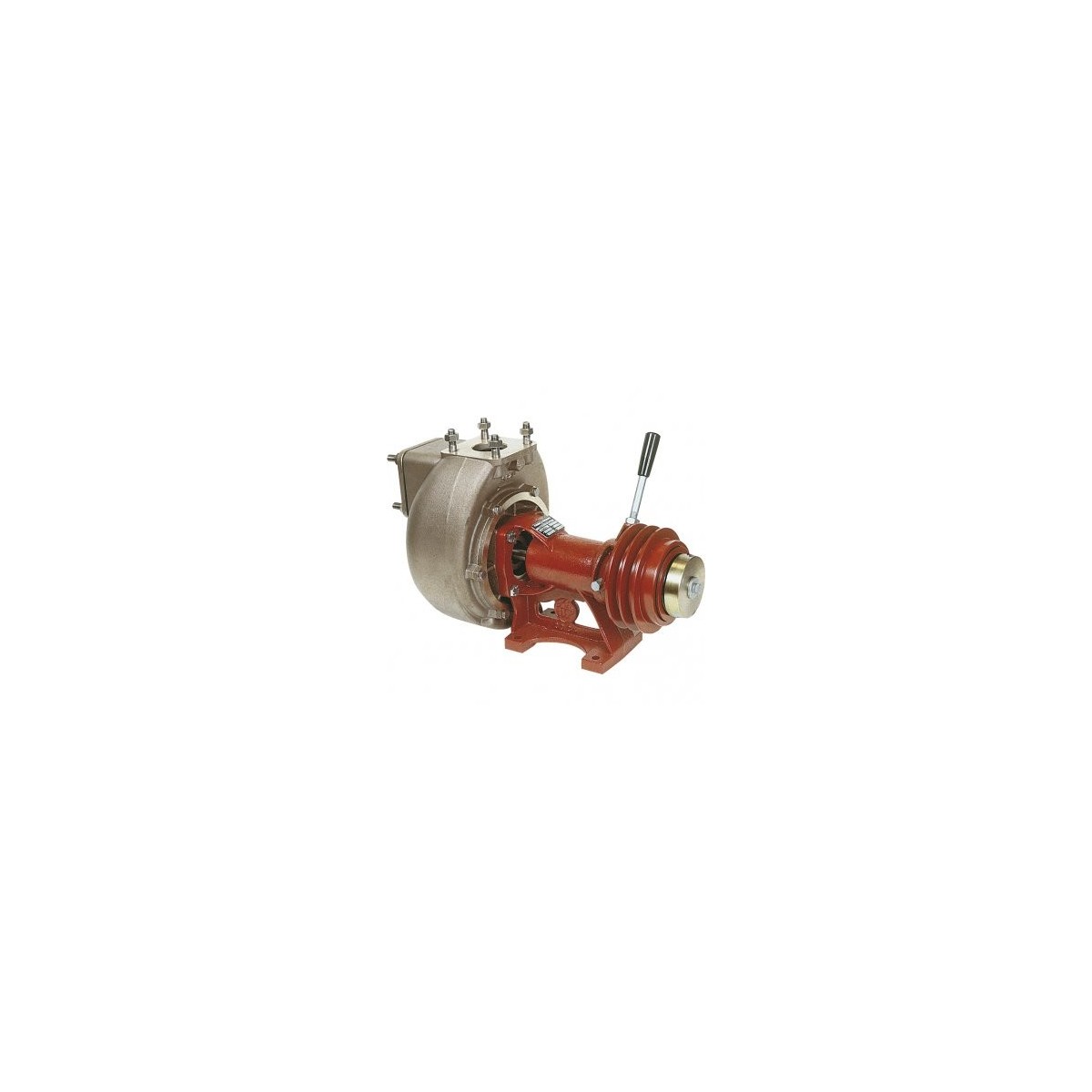

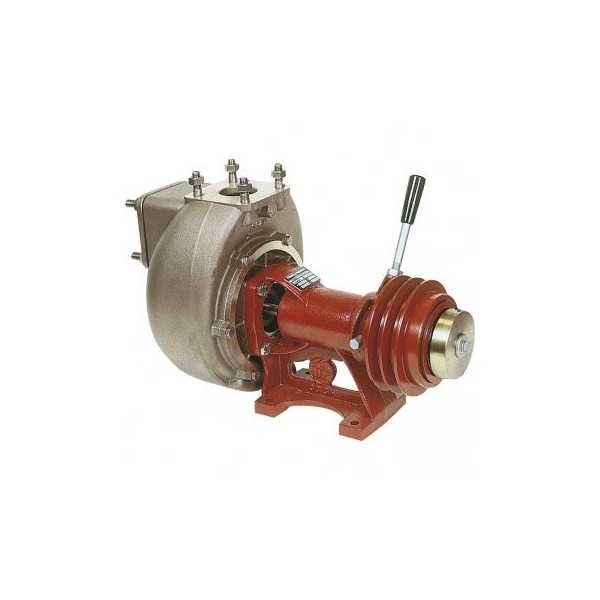

Forani AM50D10 series right-hand rotation pump with manual clutch

AM50D10 self-priming centrifugal pump
Bare shaft, straight rotation, max. 48m3/h, 2''1/2 suction flange, 2'' discharge flange, Ø 22mm shaft, max. rotation speed 3000rpm, weight 32.2kg.
With manual clutch, Ø 117mm pulley, 2 type B grooves, Ø 22mm shaft.

Flow rate up to 90m3/h. Hmt up to 55 mCE.

• Bronze body and impeller.
• Open impeller option for light liquids on series
• AM40 and AM50D10 series.
• Stainless steel shaft and screws. Mechanical seal.
• Compatible with diesel fuel.

Freshwater / seawater, engine cooling, washing, fire, ..

All models can be fitted with a mechanical or electromagnetic clutch, or with an electric, hydraulic or thermal motor.
Belt cross-section (lxh): type A groove: 13x8 - type B groove: 17x11 - type SPA groove: 12.7x10 - type SPB groove: 16.3x13
