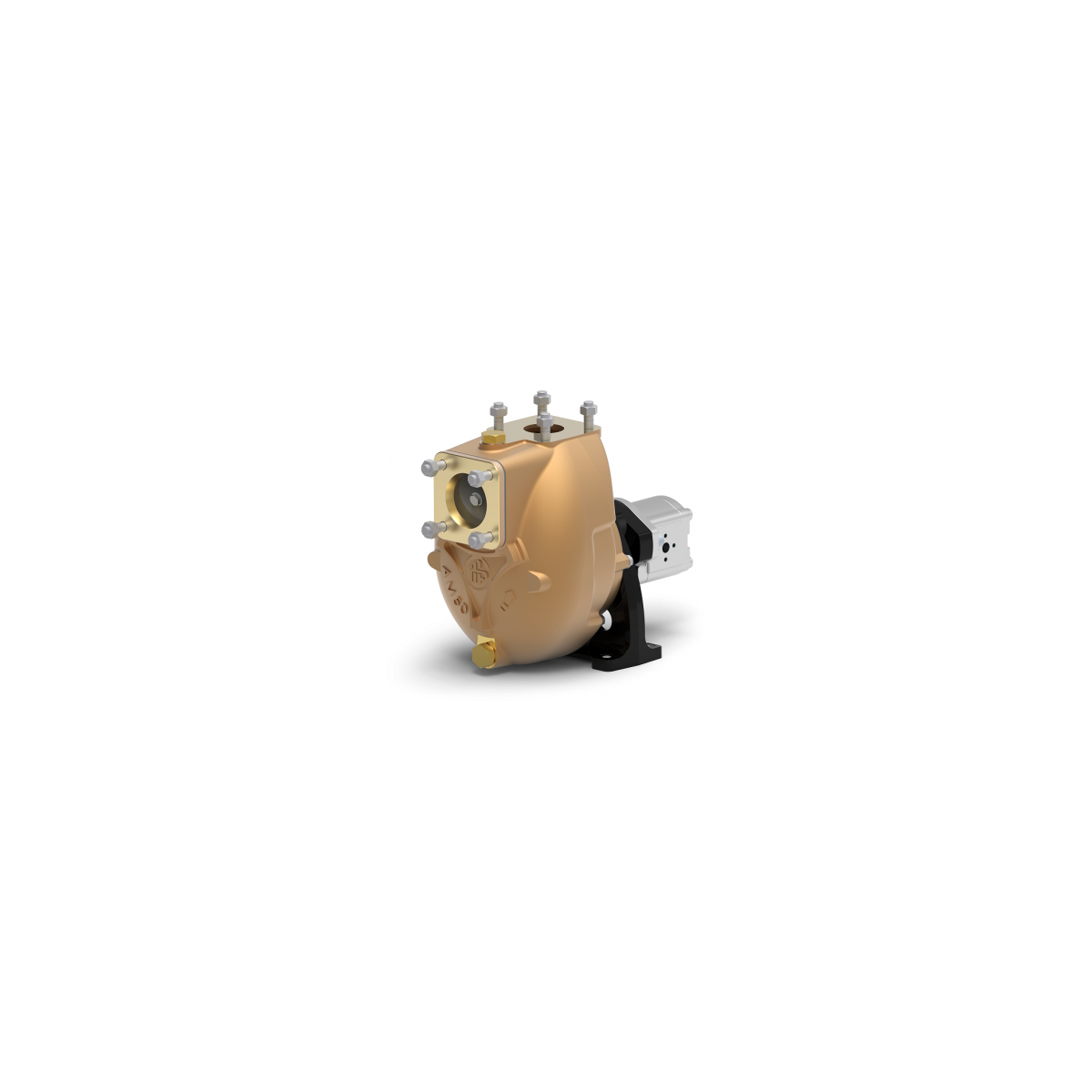

Pump AM50D5 electromagnetic clutch 24V

Self-priming centrifugal pumps

AM50D5 pumps
With 24V electromagnetic clutch, Ø 145mm pulley, 2 type A grooves.

• Flow rate up to 90³/h. Htm up to 55 mCE.
• Bronze body and impeller.
• Stainless steel shaft and screws. Mechanical seal.
• Freshwater / seawater, engine cooling, washing, fire fighting, ...
• Compatible with diesel fuel.

All models can be fitted with a mechanical or electromagnetic clutch, or in monobloc version with electric, hydraulic or thermal motor.

Belt cross-section (lxh) :

• Throat type A: 13x8
• Throat type B: 17x11
• SPA type groove: 12.7x10
• SPB type groove: 16.3
