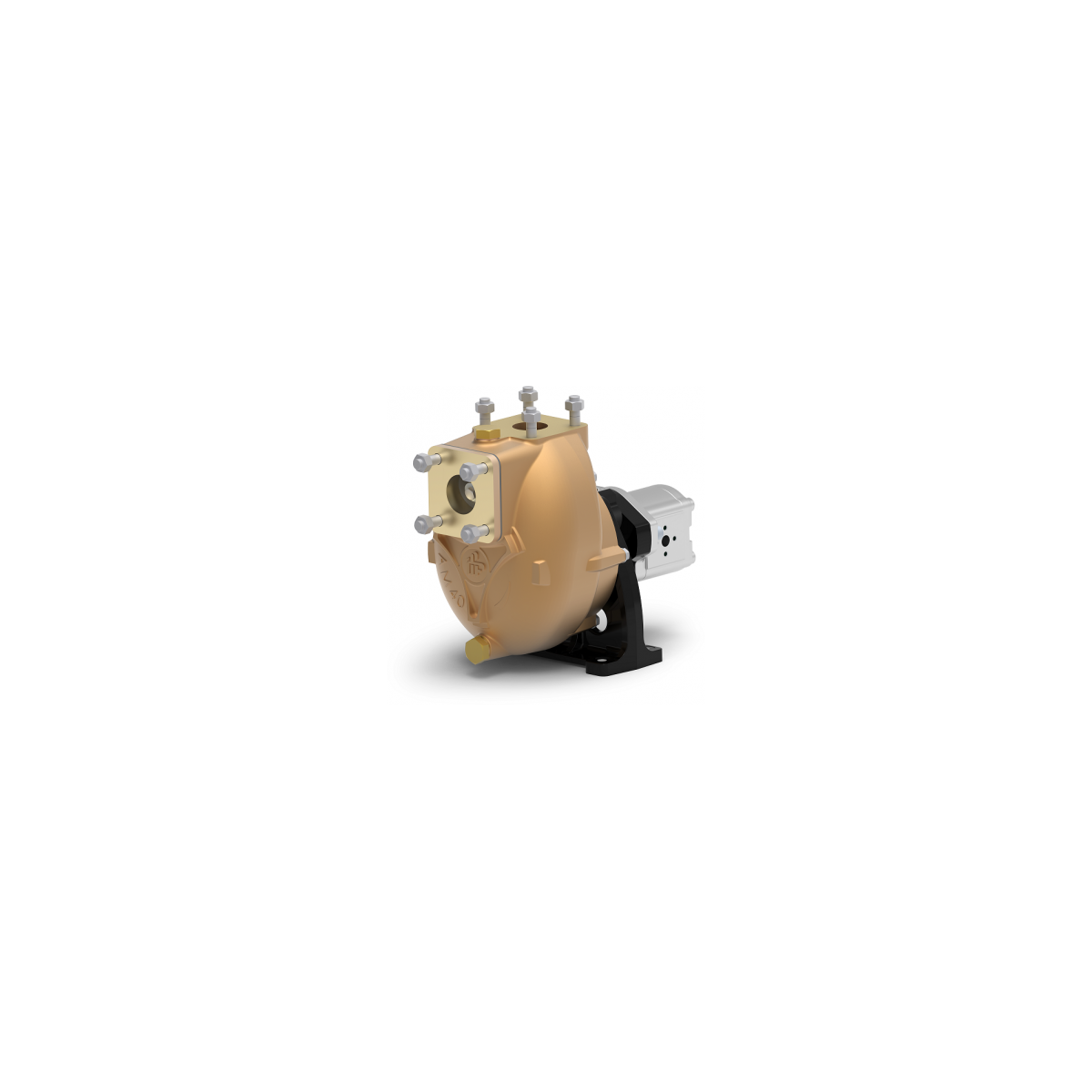

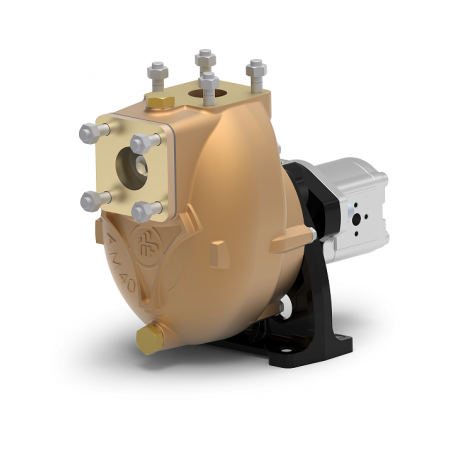

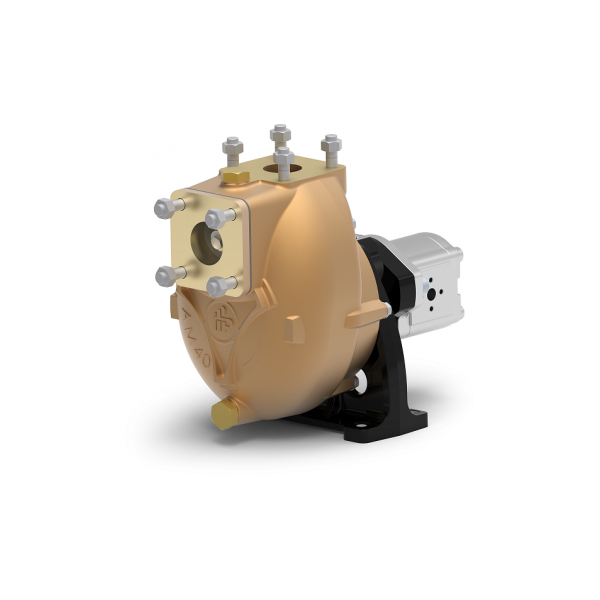

Pump AM40 electromagnetic clutch 24V right-hand rotation

Self-priming centrifugal pumps.

AM40D5 pump
With electromagnetic clutch, 24V, Ø 152 pulley, 1 SPB type groove, straight rotation.

• Flow rate up to 90m³/h. Hmt up to 55 mCE
• Bronze body and impeller
• Stainless steel shaft and gear. Mechanical seal.
• Freshwater / seawater, engine cooling, washing, fire fighting, ...
• Compatible with diesel fuel

All models can be fitted with a mechanical or electromagnetic clutch, or in monobloc version with electric, hydraulic or thermal motor.

Belt cross-section (lxh) :

• Throat type A: 13x8
• Throat type B: 17x11
• SPA type groove: 12.7x10
• SPB type groove: 16.3x13
