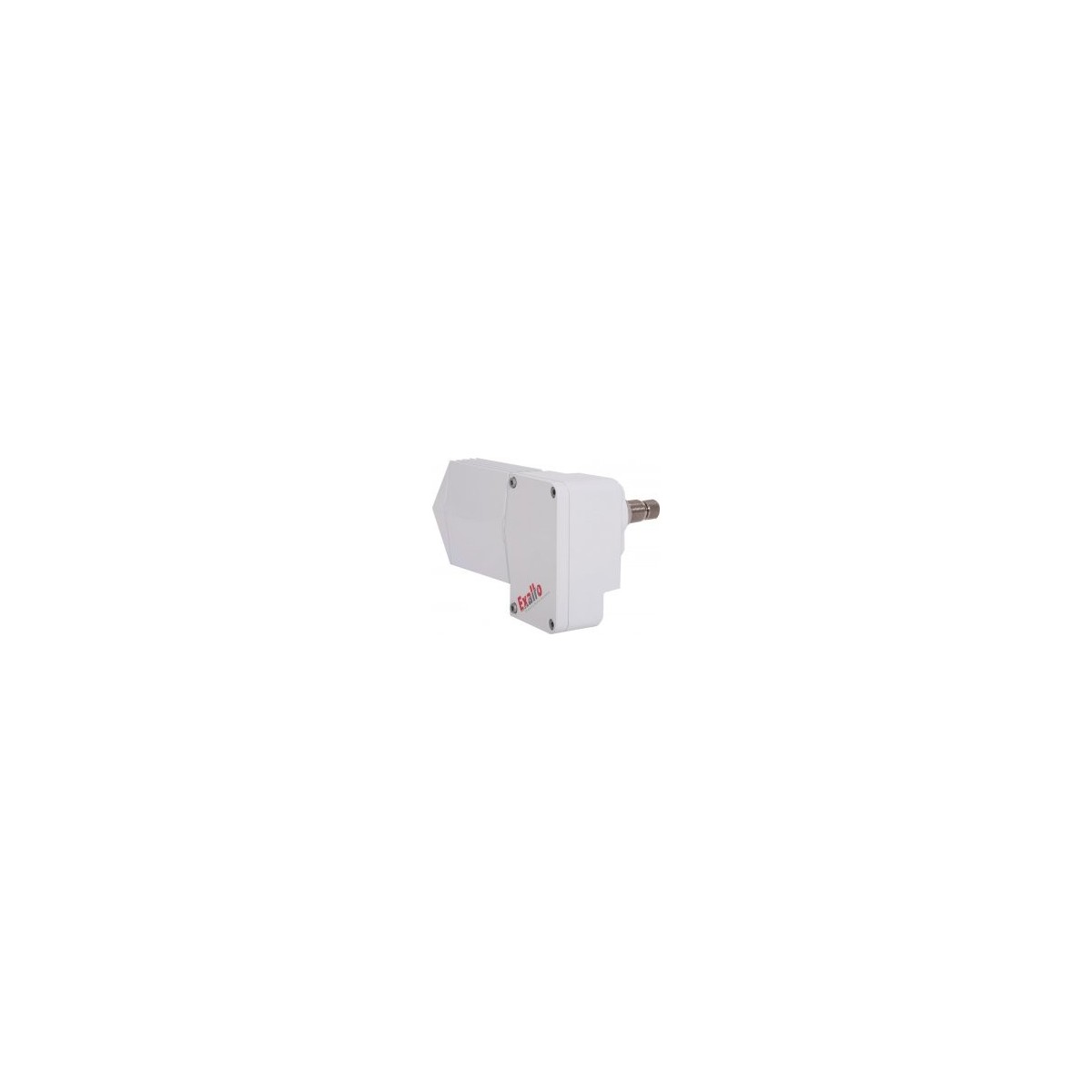

24V wiper motor shaft L75mm

Made of aluminum and 316 stainless steel, this motor is completely waterproof (IP67) and can be mounted externally on a partition or directly on the glass.
It can be pantograph or pendular.

• Power supply: 24V
• Axis length L2 : 75mm
• Wall thickness L1: 40-65mm
• 2 speeds
• Torque 18 Nm.
• Isolated from ground
• Integrated reset
• Supplied with standard 25, 50 or 75 mm axis
• Sweep angle adjustable from 40 to 110° (every 10°).

Range of pantograph or pendulum arms in 316 stainless steel with black epoxy paint finish:
Ref: EG313 Pendulum arm Adjustable length 330-450mm
Articulated scraper: Ref: EG326: 300mm - Ref: EG325: 350mm

Réf: EG312 Pendulum arm Adjustable length 450-600mm
Articulated scraper: Réf: EG324: 400mm - Réf: EG323: 450mm

Ref: EG311 Pantograph arm Adjustable length 330-450mm
Articulated scraper: Ref: EG322: 500mm - Ref: EG321: 550mm

Réf: EG310 Pantograph arm Adjustable length 450-600mm
Articulated scraper : Réf: EG320: 600mm
