ES526
Data sheet

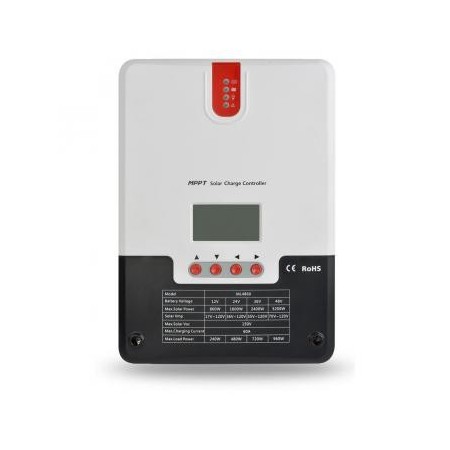

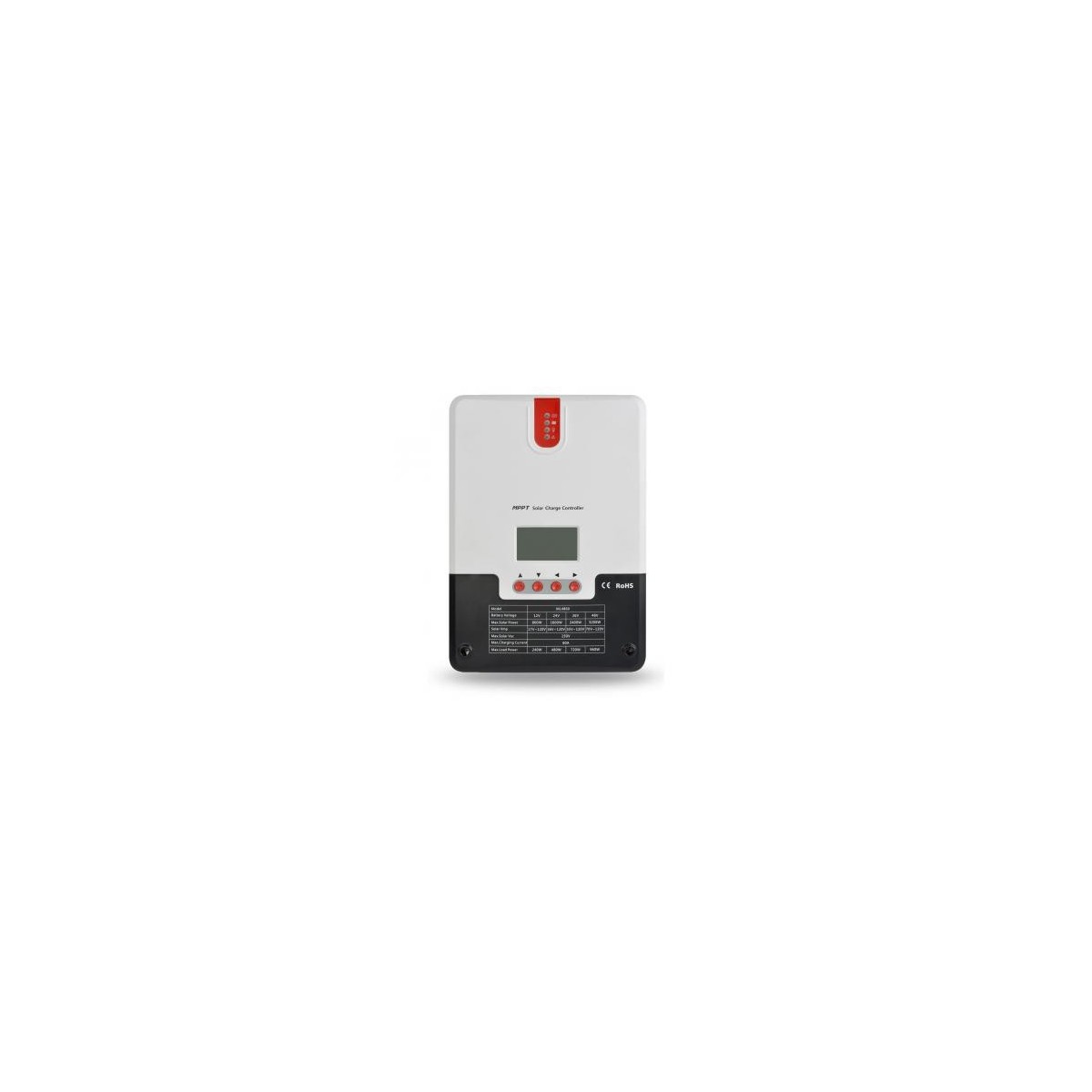

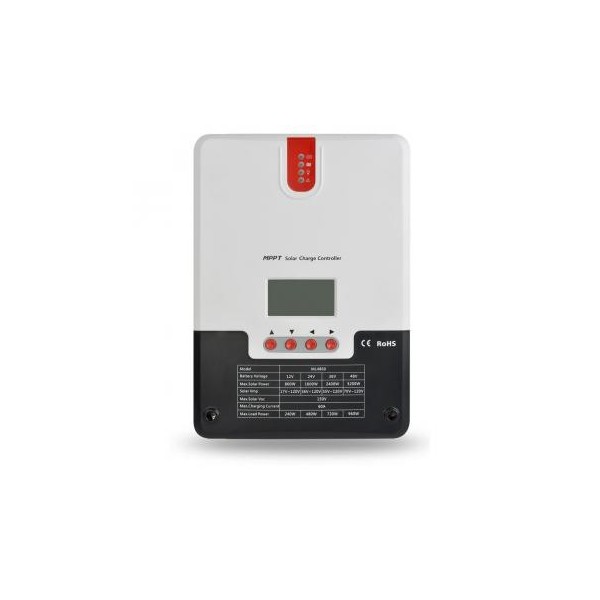

Photovoltaic charge controller with Maximum Power Point Tracking (MPPT) algorithm, which not only allows PV modules to be operated at full capacity even in changing or degraded sunlight conditions, but also enables the use of non-standard voltage modules and simplifies wiring by connecting modules in series rather than in parallel.
- Automatic recognition of 12V/24V/36V/48V,
- Digital display,
- Consumer output with simple or timed twilight interrupt from 1 to 14h,
- IP32 protection.
- RS232 communication via PC
- max. output current : 60A
- Max. input voltage: 150V
- System voltage: 12V/24V/36V/48V
- Max panel power: 800W/12V / 1600W/24V / 3200W/48V
- Display: LCD
- Dimensions: 285x205x93mm
- Weight : 3.60kg
