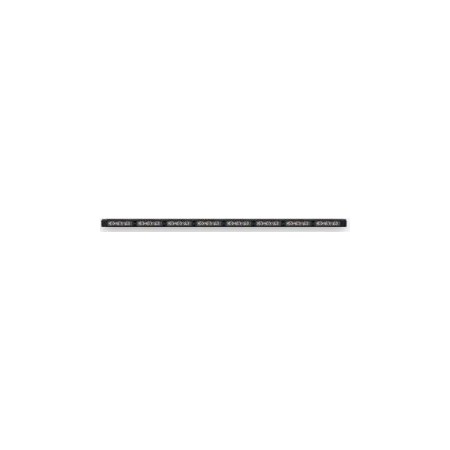

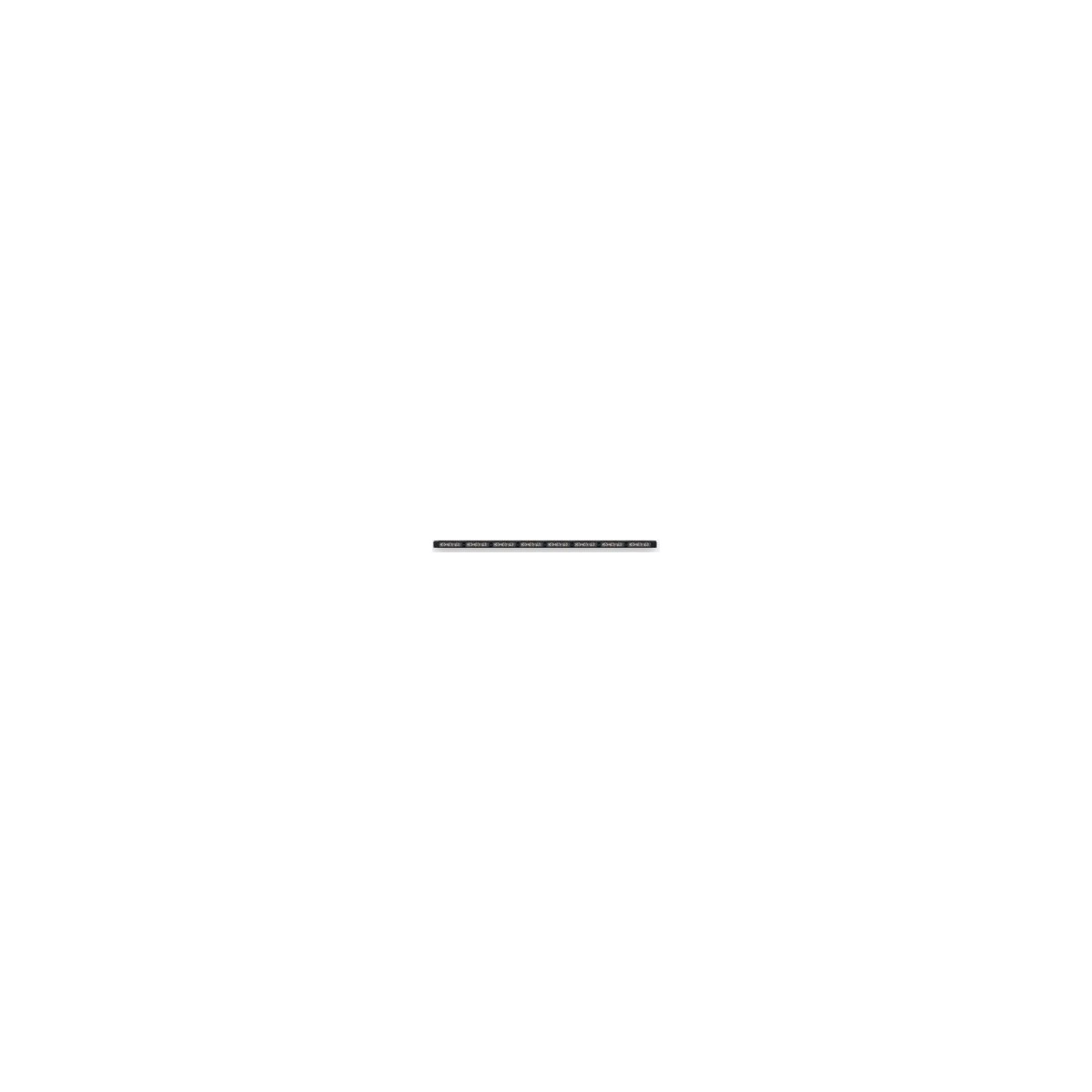

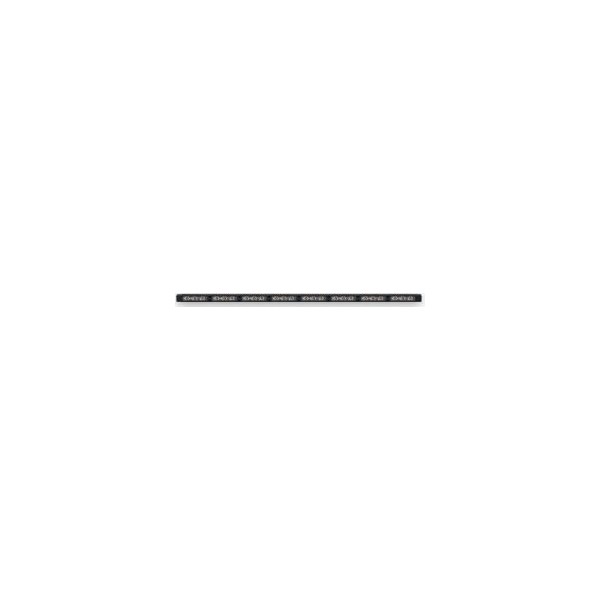

Ambre R10 scrolling ramp

Very compact design, easy integration.
Protected against polarity reversal.
Modules equipped with waterproof connectors for quick and easy installation.
Aluminum housing for heat dissipation.

Lighting features :

• Light source: 8 blocks of 3 powerleds
• Program: 20 warning / 11 scrolling flash modes

Electrical characteristics:

• Supply voltage: 12-24VDC
• Max power*: 48.37W(* Varies according to flash mode)

Physical characteristics:

• Housing: aluminum
• Optics: polycarbonate
• Mounting: rear rail
• Protection rating: IP67
• Dimensions (LxWxH): 888.2 x 38 x 24mm

Approvals :

• ECE R10
