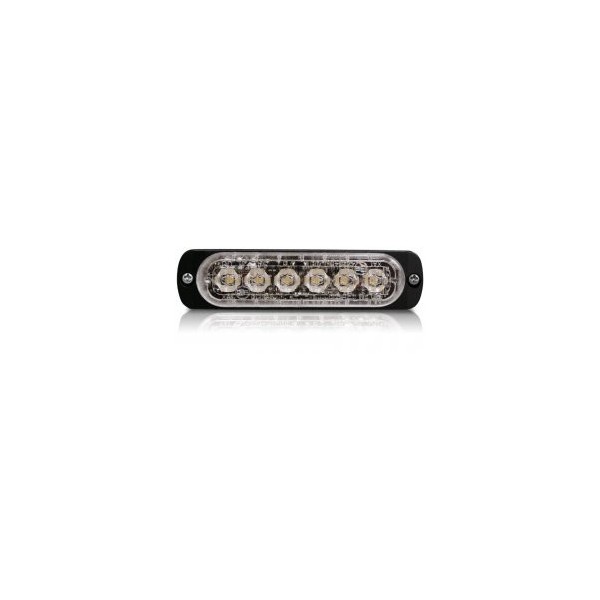

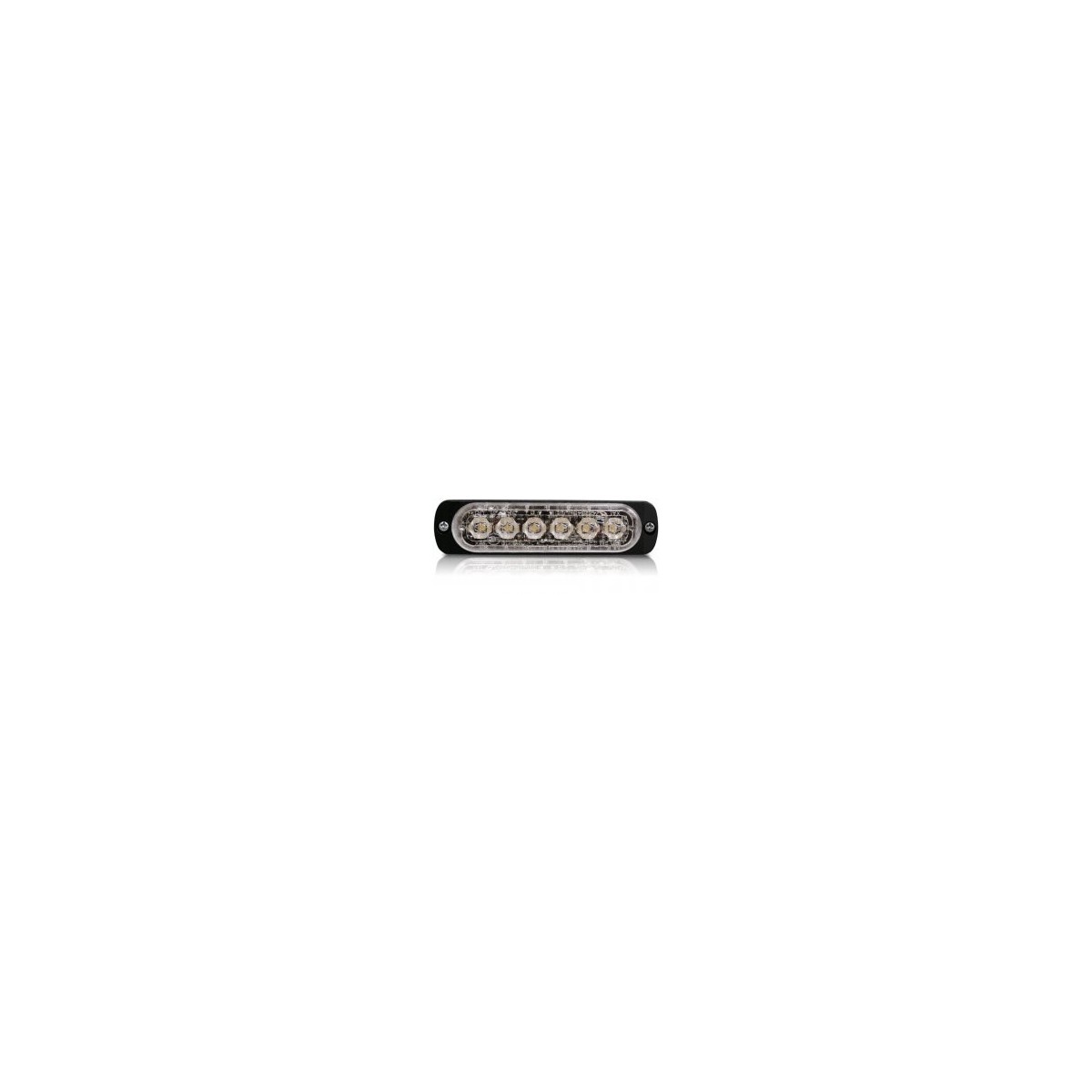

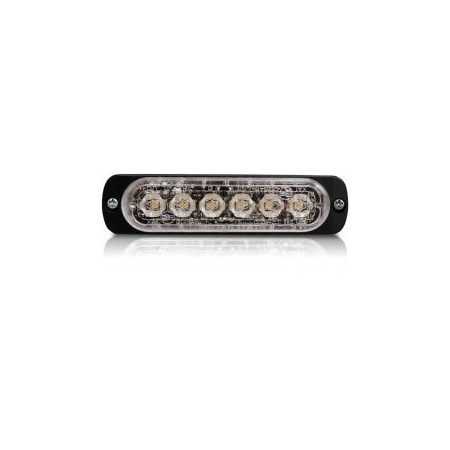

6 amber LED penetration light 12/24V
Ref.
SY421
€66.58
Public price
€69.08
Price tax excl. / DOM TOM
€66.58
SY421
- Ultra-thin (9mm) ECE R65 and SAE Class 1 approved optics.
- Approved: ECE R10
- Integrated electronics.
- Legally compliant horizontal installation.
- Synchronization of multiple modules in simultaneous or alternating flash mode
- Waterproof and vibration-resistant.
- Aluminum base for efficient heat dissipation.
- LED longevity, 100,000 hours of operation.
- Permanent memory: on power-up, recalls the last flash configuration used.
- Reverse polarity protected.
Features :
- Approvals: ECE R65 (XA1, XB1); ECE R10 SAE J595 Class 1.
- Protection class: IPX8
- LEDs: High-power LED x 6 pcs
- Programs: 23 flash modes
- Power supply: 12~24VDC
- Average consumption: 0.5A at 12VDC / 0.25A at 24VDC (may vary according to mode)
- Average power: 6W (varies with mode)
- Max. current: 1A @12VDC / 0.5A @24VDC
- Max. power: 10W
- Wires: red (Vcc): 25cm, black (ground): 25cm, yellow (modes & sync): 25cm
- Recommended protection: 2A fuse
- Multiple synchronization: up to 15 units
Flash modes :
1 | Dual (R65) | 13 | Single H/L (split) |
2 | Single (2Hz) | 14 | Single (SAE) |
3 | Triple (2Hz) | 15 | Double (SAE) |
4 | Quadruple (2Hz) | 16 | Quad (SAE) |
5 | Random | 17 | Quint (SAE) |
6 | Single (split) | 18 | Mega |
7 | Double (split) | 19 | Ultra (SAE) |
8 | Quad (split) | 20 | Single - Quad |
9 | Quint (split) | 21 | Single H/L |
10 | Mega (split) | 22 | Steady Half |
11 | Ultra (split) | 23 | Steady |
12 | Single - Quad (split) |
