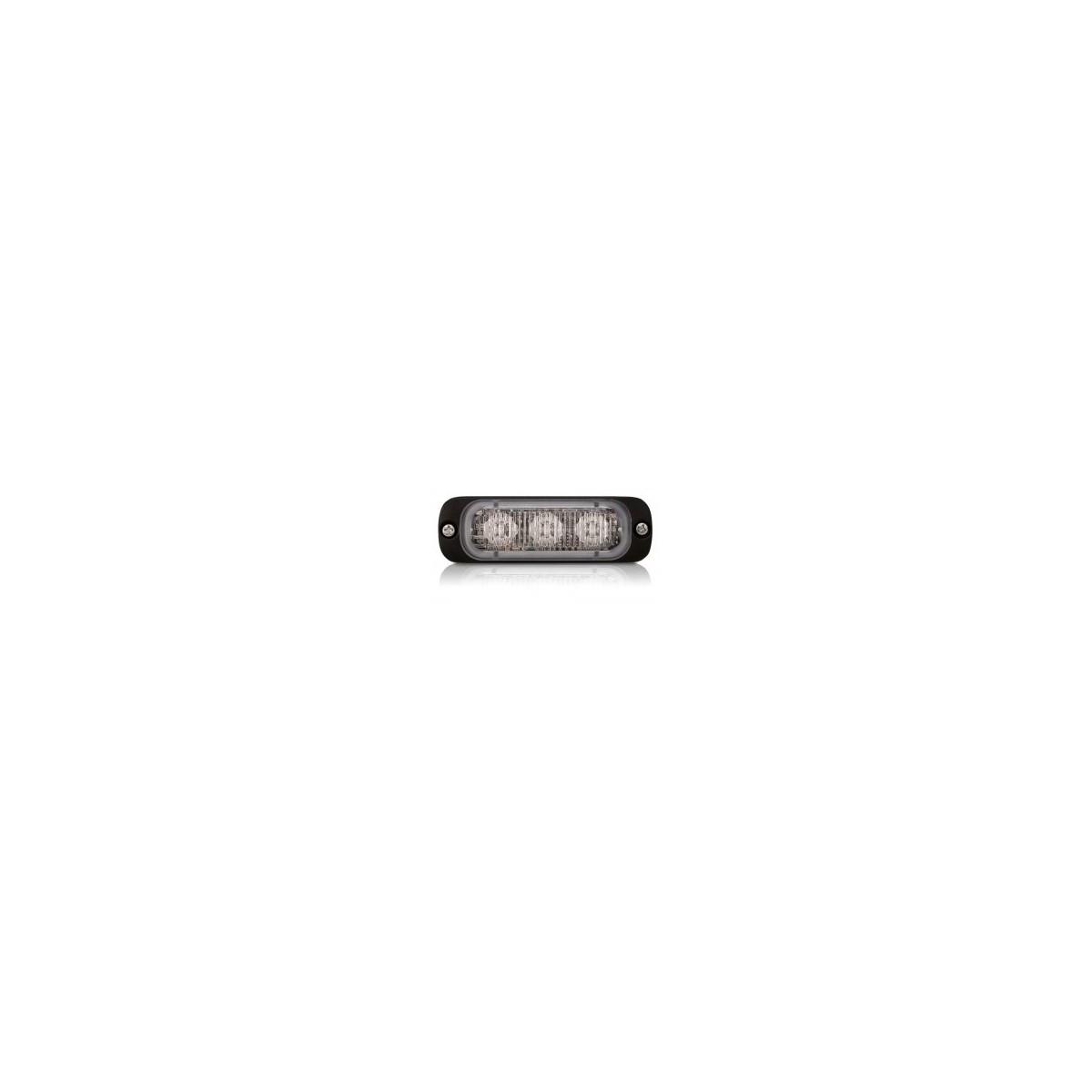

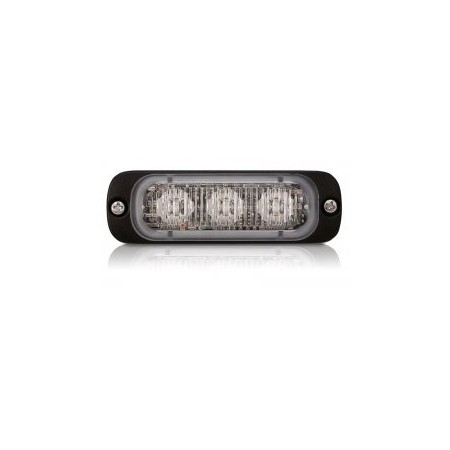

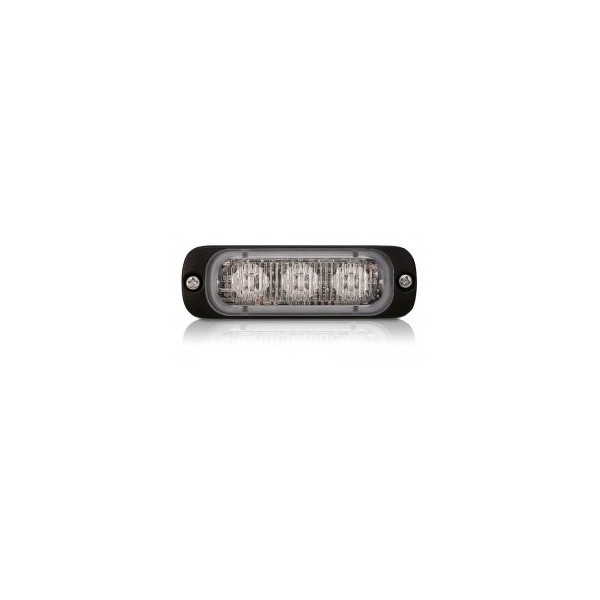

3 blue LED penetration light R65 12/24V
Ref.
SY422
€47.42
Tax included
Public price
€49.08
Price tax excl. / DOM TOM
€47.42
SY422
- Ultra-thin optics (10.6mm) ECE R65 and SAE Class 1 approved.
- Voltage: 12~24VDC.
- 16 flash modes.
- LED longevity: 100,000 hours of operation.
- Permanent memory: On power-up, recalls last used flash configuration.
- Synchronization of several modules in simultaneous or alternate flash mode.
- Reverse polarity protected.
- Waterproof and vibration-resistant.
- Aluminum base for efficient heat dissipation.
Features :
- Approvals: ECE R65 Class 1 (XA1, XB1, XR1); ECER10
- Protection rating: IPX8
- LEDs: High-power LED x 3 pcs
- Programs: 16 Flash modes
- Power supply: 12~24VDC
- Average power consumption: 0.3A at 12VDC / 0.15A at 24VDC (may vary according to mode)
- Average power: 3.55W (may vary according to mode)
- Max. current: 0.59A at 12VDC / 0.3A at 24VDC
- Max. power: 7.1W
- Wires: red (Vcc): 25cm, black (ground): 25cm, yellow (modes & sync): 25cm
- Recommended protection: 1A fuse
- Multiple synchronization: up to 15 modules
Flash modes :
| 1 | Dual (R65) | 9 | Dual |
| 2 | Single (2Hz) | 10 | Triple |
| 3 | Triple (2Hz) | 11 | Quad |
| 4 | Quad (2Hz) | 12 | Quint |
| 5 | Random | 13 | Ultra |
| 6 | Steady | 14 | Single - Quad |
| 7 | Single | 15 | Single H/L |
| 8 | Mega | 16 | Single - Triple - Quint |
