☀️ FLASHSUMMER
SY302
Data sheet

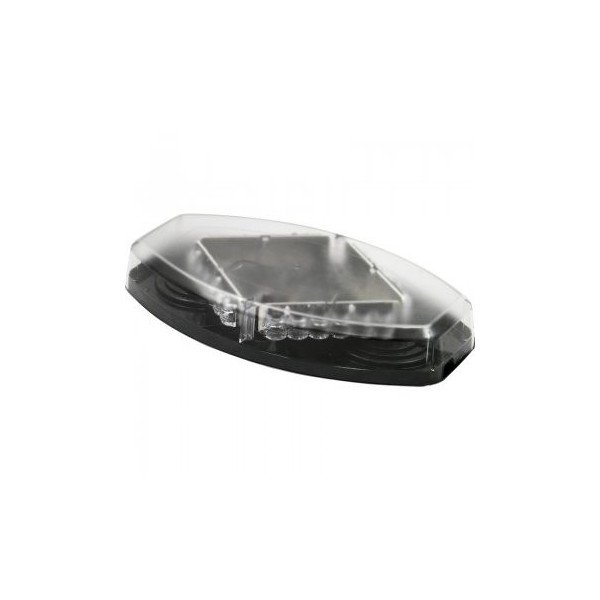

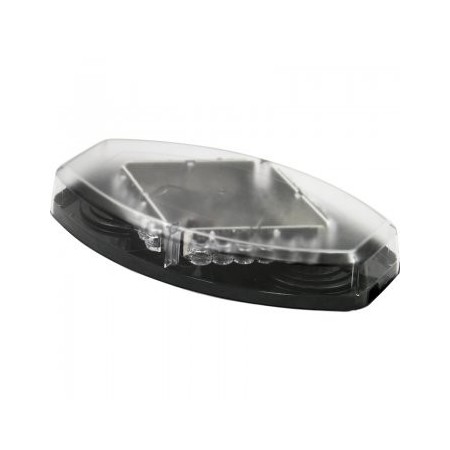

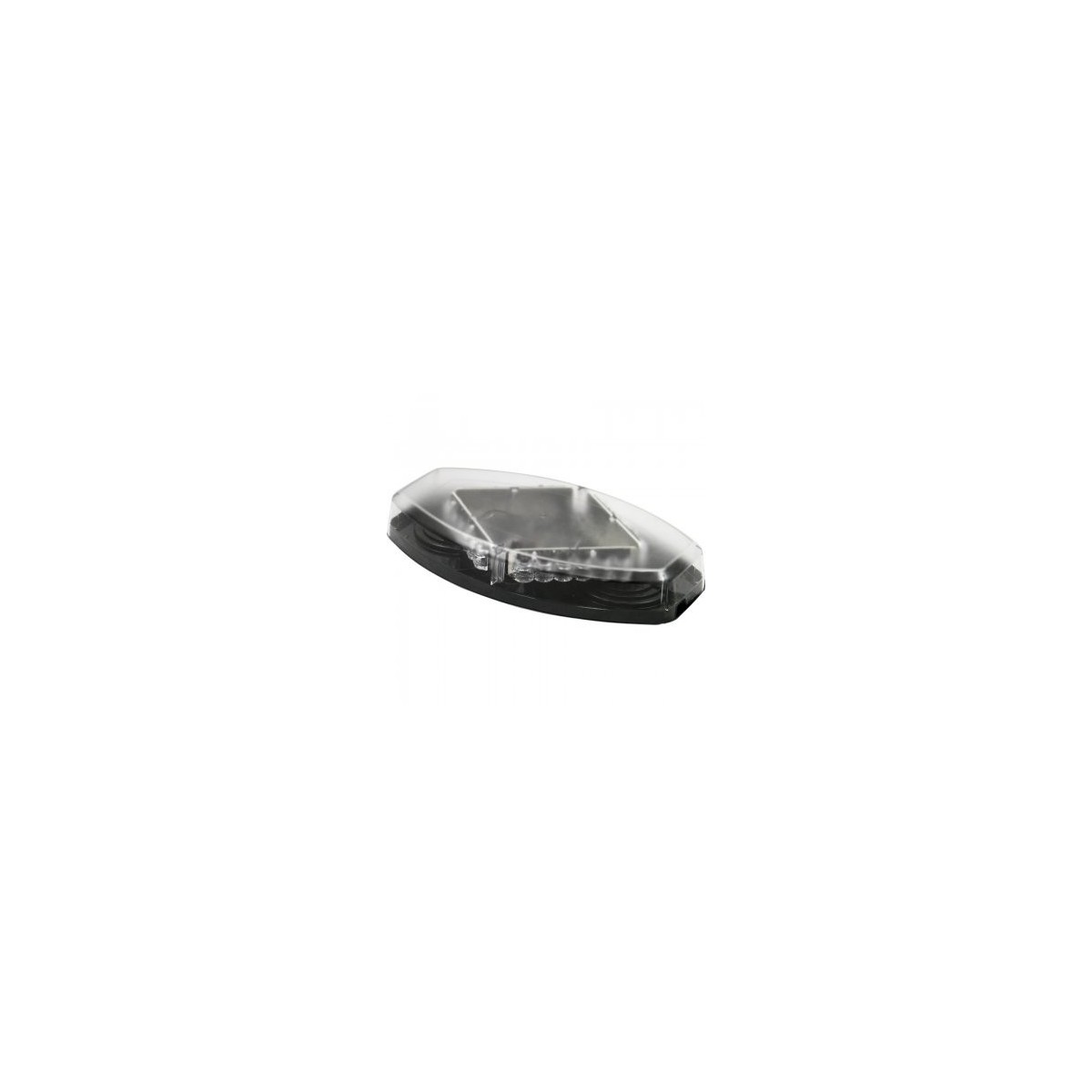

Diamondback mini boom ECE-R65-R10
Description :
- Permanent memory, resumes the last flash mode in use when switched off.
- Power reduction function for night-time use.
- Water and vibration resistant
- Reverse polarity protected.
- Multiple modules can be synchronized.
- LED lifetime 100,000 hours.
Features :
- Approvals: ECE R65 Class1, ECE R10-04, SAE J845 Class1
- Supply voltage 12-24VDC.
- 24 high-intensity LEDs.
- Program: 23 flash modes
- Average power consumption: 2.88A at 12VDC / 1.44A at 24VDC (depending on mode selected)
- Average power: 34.5W (depending on mode selected)
- Maximum power consumption: 5.75A at 12VDC / 2.88A at 24VDC
- Maximum power: 69W
- Magnetic base cable (cigar lighter socket with 2-function switch): 300cm
- Fixed installation cable
- red (Vcc): 30cm (18AWG)
- black (Ground): 30cm (18AWG)
- blue - Flash & Sync mode selection: 30cm (18AWG)
- Recommended protection: 8A fuse
Built-in flash modes
| FP# | Flash mode | FP# | Flash mode |
| 1 | Random | 13 | Quint (all) |
| 2 | Single (split) | 14 | Mega (all) |
| 3 | Double (split) | 15 | Ultra (all) |
| 4 | Quad (split) | 16 | Single-Quad (all) |
| 5 | Quint (split) | 17 | Single H/L (all) |
| 6 | Mega (split) | 18 | Steady (half) |
| 7 | Ultra (split) | 19 | Steady (all) |
| 8 | Single-Quad (split) | 20 | Single (2Hz) |
| 9 | Single H/L (split) | 21 | Double (2Hz) |
| 10 | Single (all) | 22 | Triple (2Hz) |
| 11 | Double (all) (R65) | 23 | Quad (2Hz) |
| 12 | Quad (all) |
* Factory setting is not FP#1
