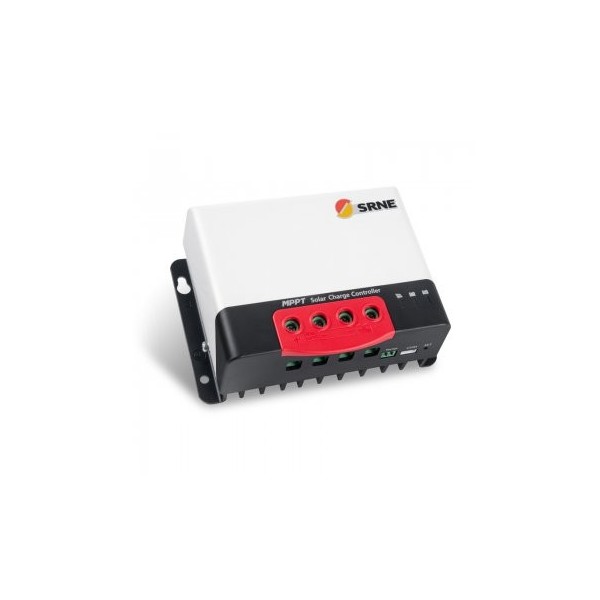

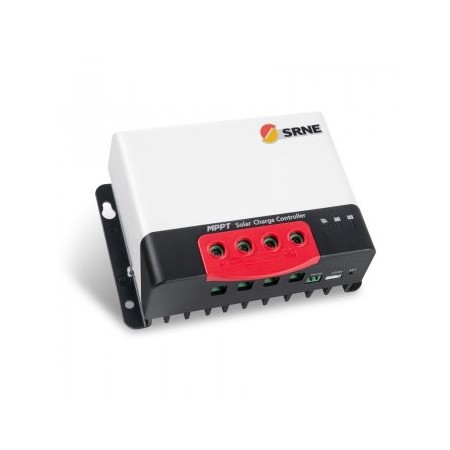

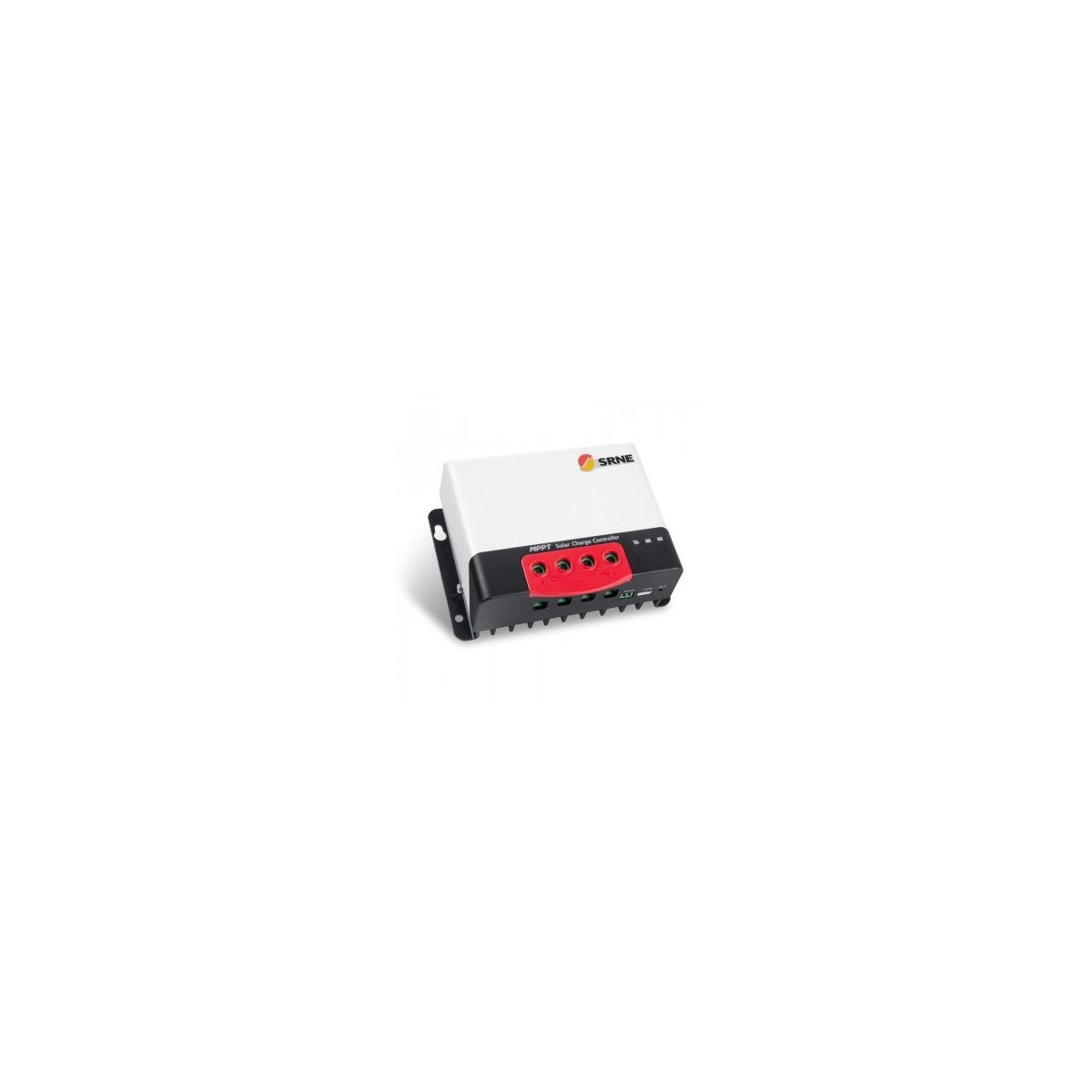

Solar controller MPPT 20A

Photovoltaic charge controller with Maximum Power Point Tracking (MPPT) algorithm, leading to a significant improvement in the system's energy utilization efficiency and 30% higher charging efficiency than the PWM method.

• Full electronic protection: reverse polarity, short-circuit, and load overcurrent protection.
• Self-consumption ≤ 10mA.
• IP32 protection.
• Monitoring and history with BLE module and free Solar APP

• Max. output current : 20A
• Max. input voltage: 100V
• System voltage: 12V/24V
• Max. panel power: 260W/12V - 520W/24V
• Dimensions: 150x105.6x61.5mm
• Weight: 0.60kg
